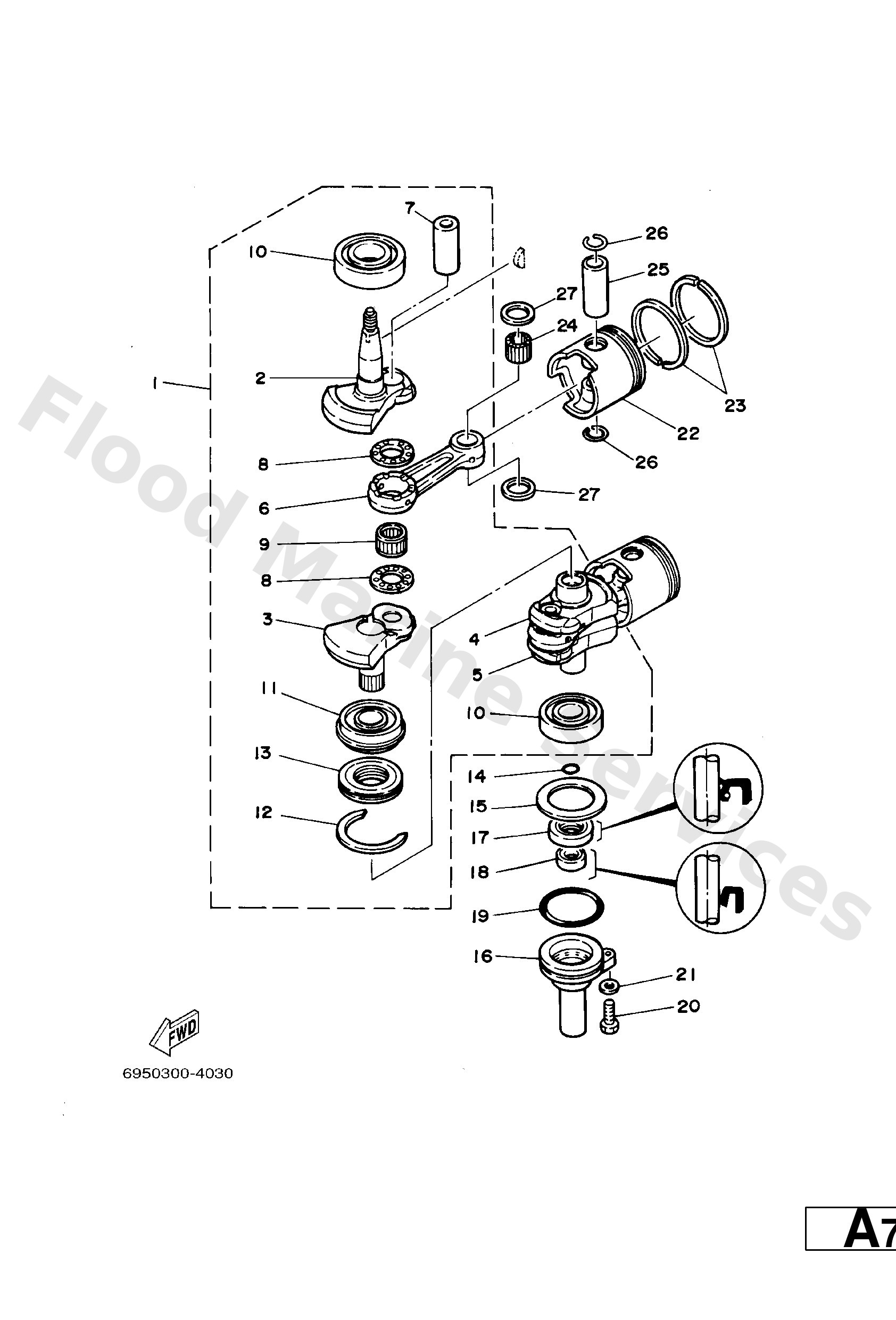

Diagram: CRANKSHAFT. PISTON

Diagram

Parts List

6951140000
3−
Diagram Reference: 1
Get Part
6951141200
3−
Diagram Reference: 2
Get Part
6G01142200
3−
Diagram Reference: 3
Get Part
6G01143200
3−
Diagram Reference: 4
Get Part
6951144200
3−
Diagram Reference: 5
Get Part
6481165104
Rod, connecting
Diagram Reference: 6
Get Part
6481168100
Pin,crank
Diagram Reference: 7
Get Part
9020922071
Washer (29l)
Diagram Reference: 8
Get Part
93310522W0
Bearing, needle (6g0)
Diagram Reference: 9
Get Part
93306--305U3
Bearing(6j8)
Diagram Reference: 10
Get Part
93390--00009
Brg,cyl-cal roller 260g nt
Diagram Reference: 11
Get Part
93440--62057
Cir clip (656)
Diagram Reference: 12
Get Part
6561151500
3−
Diagram Reference: 13
Get Part
93210--16275
O-ring
Diagram Reference: 14
Get Part
90201--50306
Washer plate 648115870000
Diagram Reference: 15
Get Part
68915396011S
Housing, Oil Seal
Diagram Reference: 16
Get Part
9310125M35
Oil seal(6a4)
Diagram Reference: 17
Get Part
93101--16M36
Oil seal(6a8)
Diagram Reference: 18
Get Part
93210--58M21
O-ring (683)
Diagram Reference: 19
Get Part
97095--06022
Bolt(61k)
Diagram Reference: 20
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 21
Get Part
664116318096
Piston (Std)
Diagram Reference: 22
Get Part
6641163580 (AP)
3−
Diagram Reference: 22
Get Part
6641163680 (AP)
3−
Diagram Reference: 22
Get Part
6641161080
Piston ring set (std)
Diagram Reference: 23
Get Part
6641161040 (AP)
3−
Diagram Reference: 23
Get Part
6641161050 (AP)
3−
Diagram Reference: 23
Get Part
93602--20M02
Pin, dowel b (664)
Diagram Reference: 24
Get Part
648--11633--00
Pin,piston
Diagram Reference: 25
Get Part
93450--20026
Clip 6041163400
Diagram Reference: 26
Get Part
90201--18522
Washer (656)
Diagram Reference: 27
Get Part
