Parts List

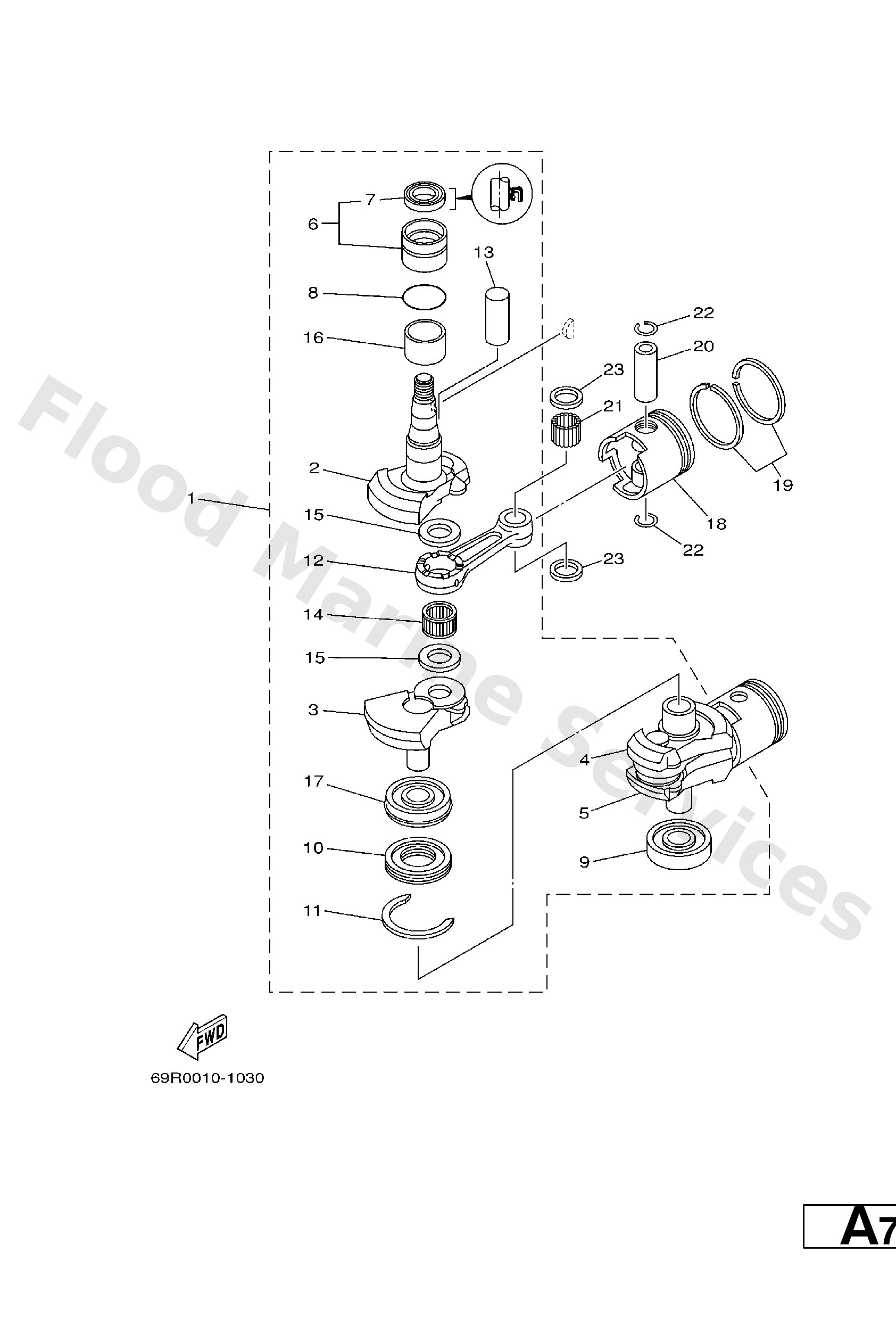

Crankshaft assembly
Diagram Reference: 1
Crank 1
Diagram Reference: 2
Crank 2
Diagram Reference: 3
Crank 3
Diagram Reference: 4
Crank 4
Diagram Reference: 5
Bearing
Diagram Reference: 6
Oil seal (697)
Diagram Reference: 7
O-ring (688)
Diagram Reference: 8
Bearing(6j8)
Diagram Reference: 9
Seal, labyrinth 1
Diagram Reference: 10
Cir clip (656)
Diagram Reference: 11
Rod, connecting
Diagram Reference: 12
Pin, crank
Diagram Reference: 13
Bearing
Diagram Reference: 14
Washer, plate (689)
Diagram Reference: 15
Collar
Diagram Reference: 16
Brg,cyl-cal roller 260g nt
Diagram Reference: 17
Piston (std)
Diagram Reference: 18
Piston (0.25mm o/s)
Diagram Reference: 18
Piston (0.50mm o/s)
Diagram Reference: 18
Piston ring set (std)
Diagram Reference: 19
Piston ring set (0.25mm o/s)
Diagram Reference: 19
Piston ring set (0.50mm o/s)
Diagram Reference: 19
Pin, piston
Diagram Reference: 20
Pin, dowel b (664)
Diagram Reference: 21
Clip, piston pin
Diagram Reference: 22
Washer, plate (689)
Diagram Reference: 23
