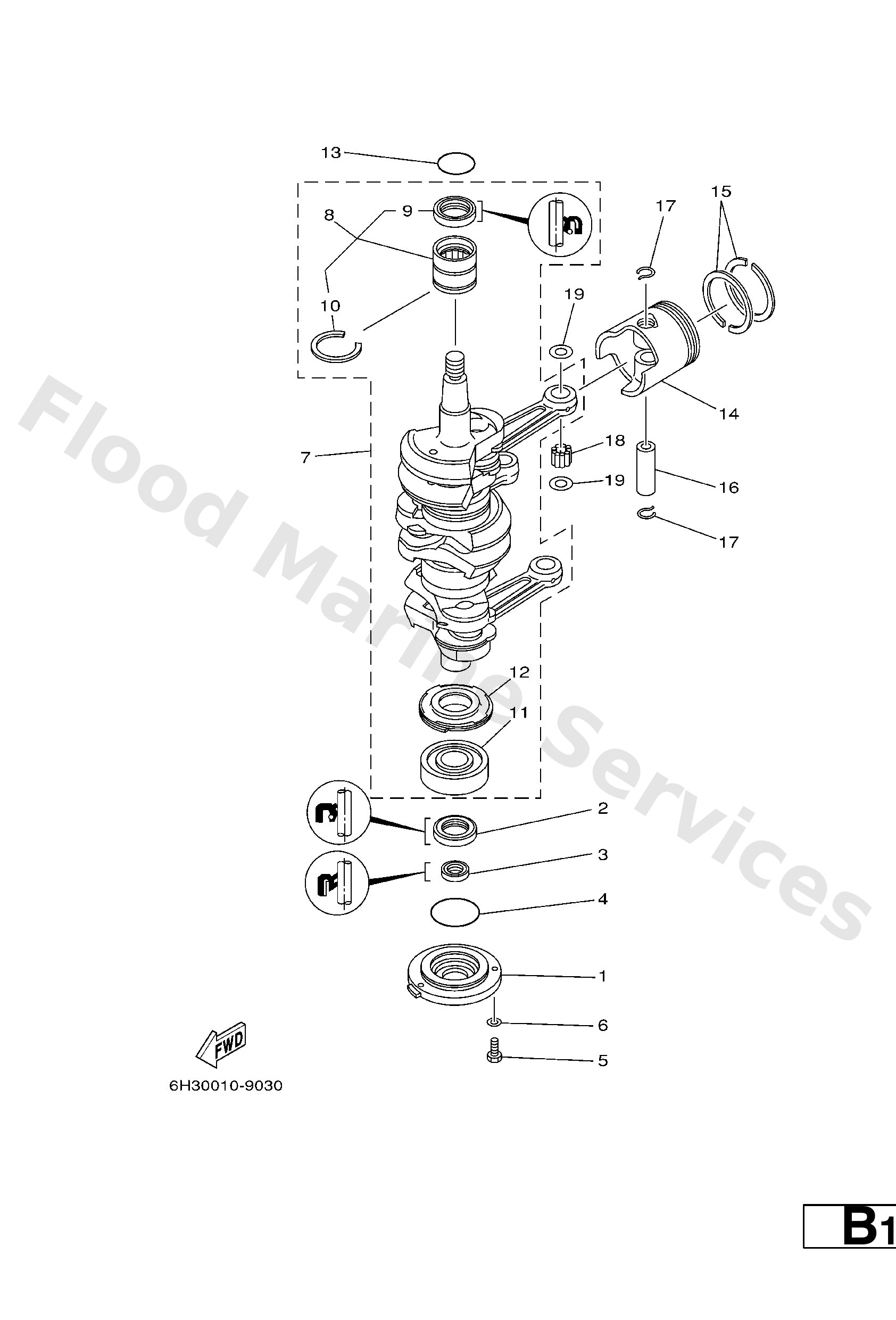

Diagram: CRANKSHAFT. PISTON

Diagram

Parts List

6H3−15359−00−94
Housing, oil seal
Diagram Reference: 1
Get Part
93102−30M23
Oil seal (6h3)
Diagram Reference: 2
Get Part
93106−18M01
Oil seal (6h3)
Diagram Reference: 3
Get Part
93210−65M50
O-ring
Diagram Reference: 4
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 5
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 6
Get Part
6H3−11400−10
Crankshaft assembly
Diagram Reference: 7
Get Part
93311−636U6
Bearing, needle (6h3)
Diagram Reference: 8
Get Part
93102−36M24
Oil seal(52w)
Diagram Reference: 9
Get Part
93440−49M04
Circlip (6h3)
Diagram Reference: 10
Get Part
93306−306V1
Bearing(6h2)
Diagram Reference: 11
Get Part
6H3−11536−00
Gear, drive
Diagram Reference: 12
Get Part
93210−46M16
O-ring (688)
Diagram Reference: 13
Get Part
6H3−11631−01−96
Piston (std)
Diagram Reference: 14
Get Part
6H3−11635−01 (AP)
Piston (0.25mm o/s)
Diagram Reference: 14
Get Part
6H3−11636−01 (AP)
Piston (0.50mm o/s)
Diagram Reference: 14
Get Part
6K5−11601−02
Piston ring set (std)
Diagram Reference: 15
Get Part
6K5−11601−12 (AP)
Piston ring set (1st o/s)
Diagram Reference: 15
Get Part
6K5−11601−22 (AP)
Piston ring set (2nd o/s)
Diagram Reference: 15
Get Part
6H3−11633−00
Pin, piston
Diagram Reference: 16
Get Part
688−11634−10
Clip, piston pin
Diagram Reference: 17
Get Part
93603−18M09
Pin, dowel b (6h3)
Diagram Reference: 18
Get Part
90201−20417
Washer, plate(663)
Diagram Reference: 19
Get Part
