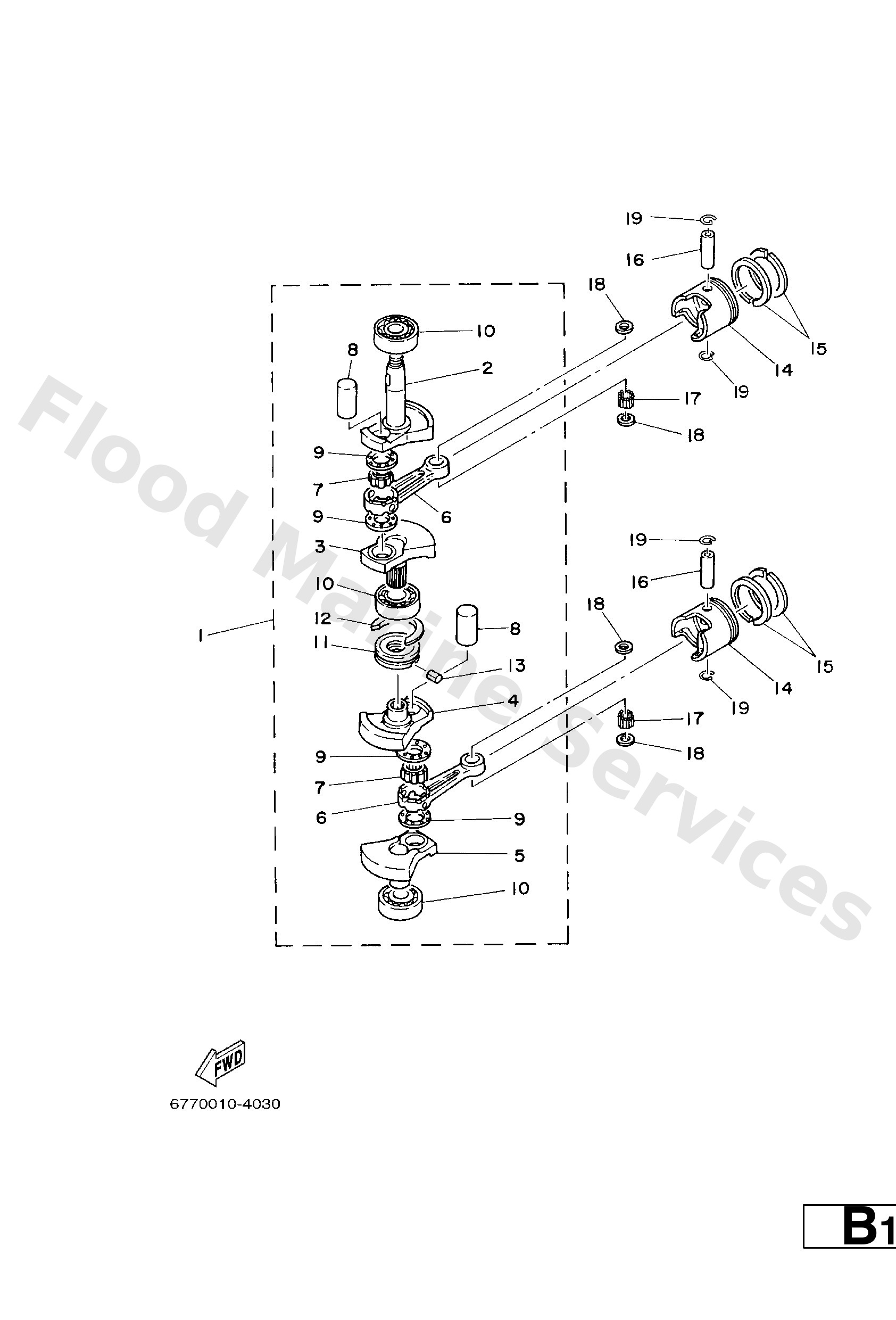

Diagram: CRANKSHAFT. PISTON

Diagram

Parts List

677−11400−02
Crankshaft assembly
Diagram Reference: 1
Get Part
677−11412−02
3−
Diagram Reference: 2
Get Part
677−11422−02
3−
Diagram Reference: 3
Get Part
677−11432−02
3−
Diagram Reference: 4
Get Part
677−11442−02
Crank 4
Diagram Reference: 5
Get Part
6E0−11651−01
Rod, connecting
Diagram Reference: 6
Get Part
93310−418U0
Bearing 12g tm
Diagram Reference: 7
Get Part
6G1−11681−00
Pin, crank
Diagram Reference: 8
Get Part
90209−18112
Washer 132116850000
Diagram Reference: 9
Get Part
93306−204U0
Bearing(6e0)
Diagram Reference: 10
Get Part
677−11515−01
Seal, labyrinth 1
Diagram Reference: 11
Get Part
93440−47055
Cir clip (655)
Diagram Reference: 12
Get Part
91690−30010
Pin, spring (663)
Diagram Reference: 13
Get Part
677−11631−00−97
Piston (s.t.d) 0.97
Diagram Reference: 14
Get Part
677−11635−00 (AP)
Piston (s.t.d) 1st o.s
Diagram Reference: 14
Get Part
677−11636−00 (AP)
Piston (s.t.d) 2nd o.s
Diagram Reference: 14
Get Part
647−11610−00
Piston ring set (std)
Diagram Reference: 15
Get Part
647−11610−10 (AP)
Piston ring set (0.25mm o/s)
Diagram Reference: 15
Get Part
647−11610−20 (AP)
Piston ring set (2nd o/s)
Diagram Reference: 15
Get Part
6G1−11633−00
Pin, piston
Diagram Reference: 16
Get Part
93602−14118
Pin dowel (655)
Diagram Reference: 17
Get Part
90201−12565
Washer, plate (655)
Diagram Reference: 18
Get Part
93450−13022
Circlip 132116340000
Diagram Reference: 19
Get Part
