F2.5AMH (2003)
CRANKSHAFT. PISTON

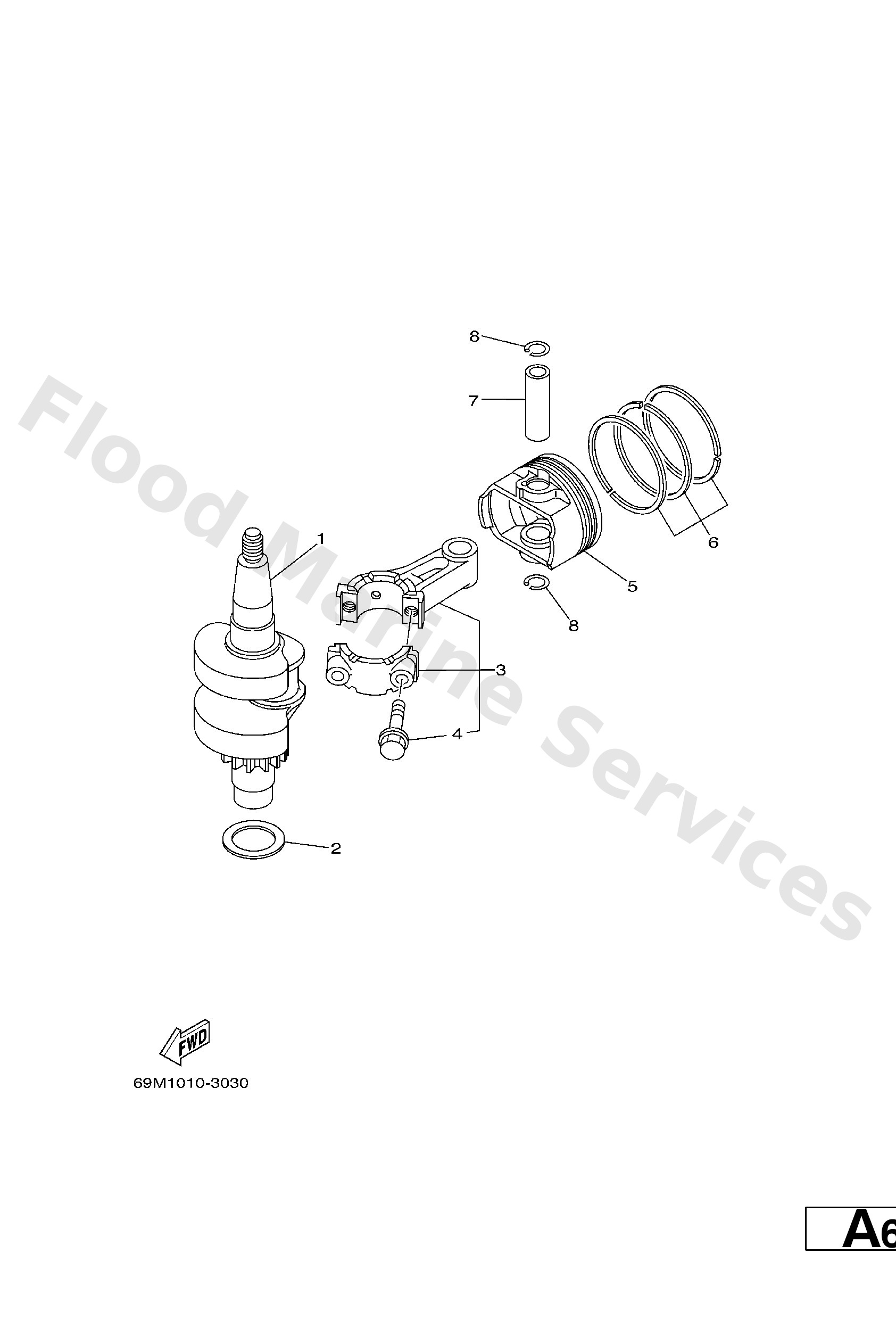

Diagram: CRANKSHAFT. PISTON
Parts List
Reference
Description
Price
1
69M−11400−00
Crankshaft assembly
Loading…
↗
2
90201−23008
Washer, plate
Loading…
↗
3
69M−11650−00
Connecting rod assembly
Loading…
↗
4
7FK−11654−00
Bolt, connecting rod
Loading…
↗
5
69M−E1631−00−96
Piston (std) f2.5
Loading…
↗
6
69M−E1603−00
Piston ring set (std)
Loading…
↗
7
69M−E1633−00
Pin, piston
Loading…
↗
8
93450−13130
Circlip(3nw)
Loading…
↗
