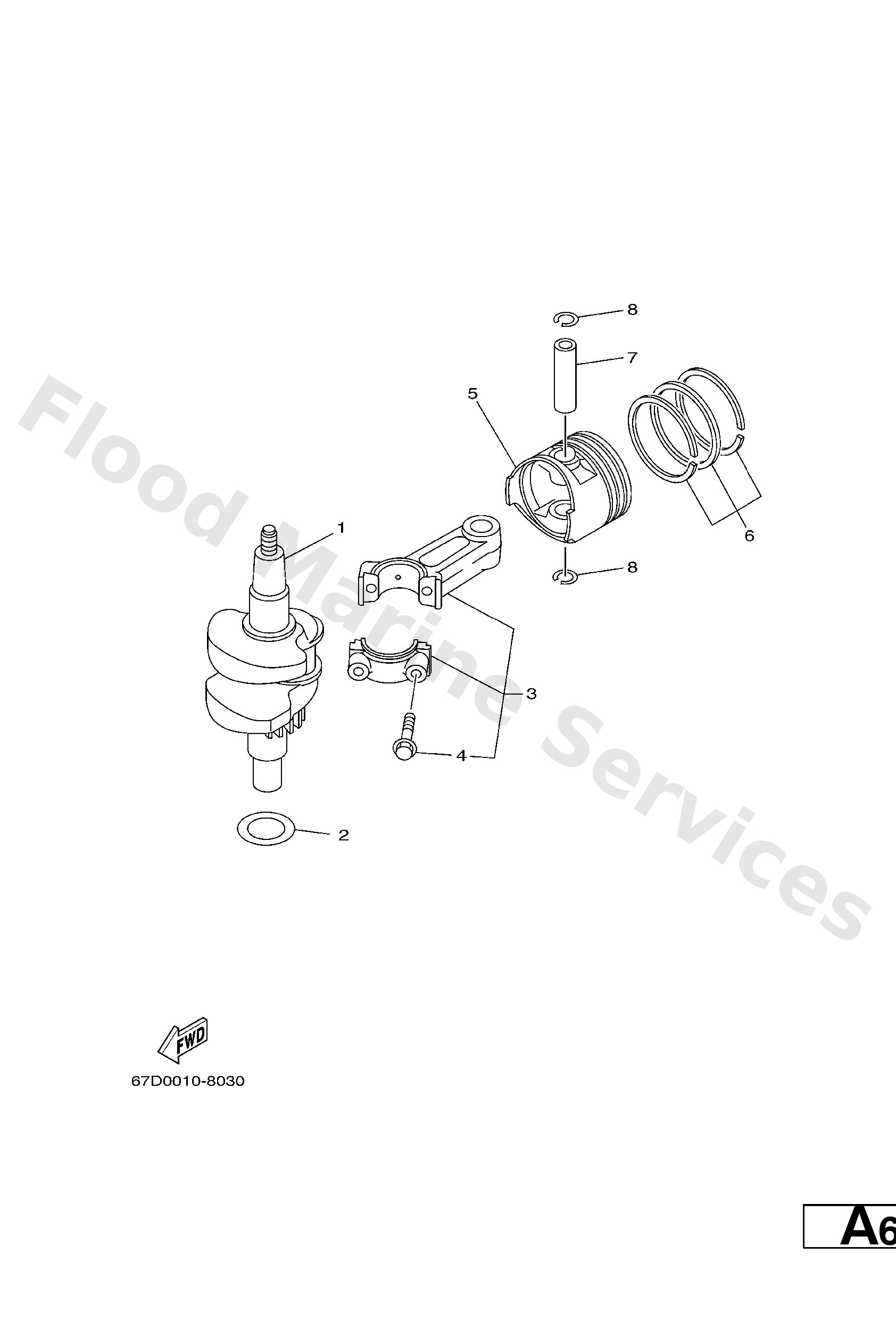

Diagram: CRANKSHAFT. PISTON

Diagram

Parts List

67D−11400−00

Crankshaft assembly

Diagram Reference: 1

90201−266P2

Washer, plate(ja8)

Diagram Reference: 2

67D−11650−00

Connecting rod kit

Diagram Reference: 3

67D−11654−00

Bolt, connecting rod

Diagram Reference: 4

68D−E1631−00−96

Piston (std)

Diagram Reference: 5

68D−E1635−00 (AP)

3−

Diagram Reference: 5

68D−E1636−00 (AP)

3−

Diagram Reference: 5

68D−E1603−00

Piston ring (set)

Diagram Reference: 6

68D−E1604−00 (AP)

3−

Diagram Reference: 6

68D−E1605−00 (AP)

3−

Diagram Reference: 6

68D−E1633−00

3−

Diagram Reference: 7

93450−14088

Circlip (22f)

Diagram Reference: 8
