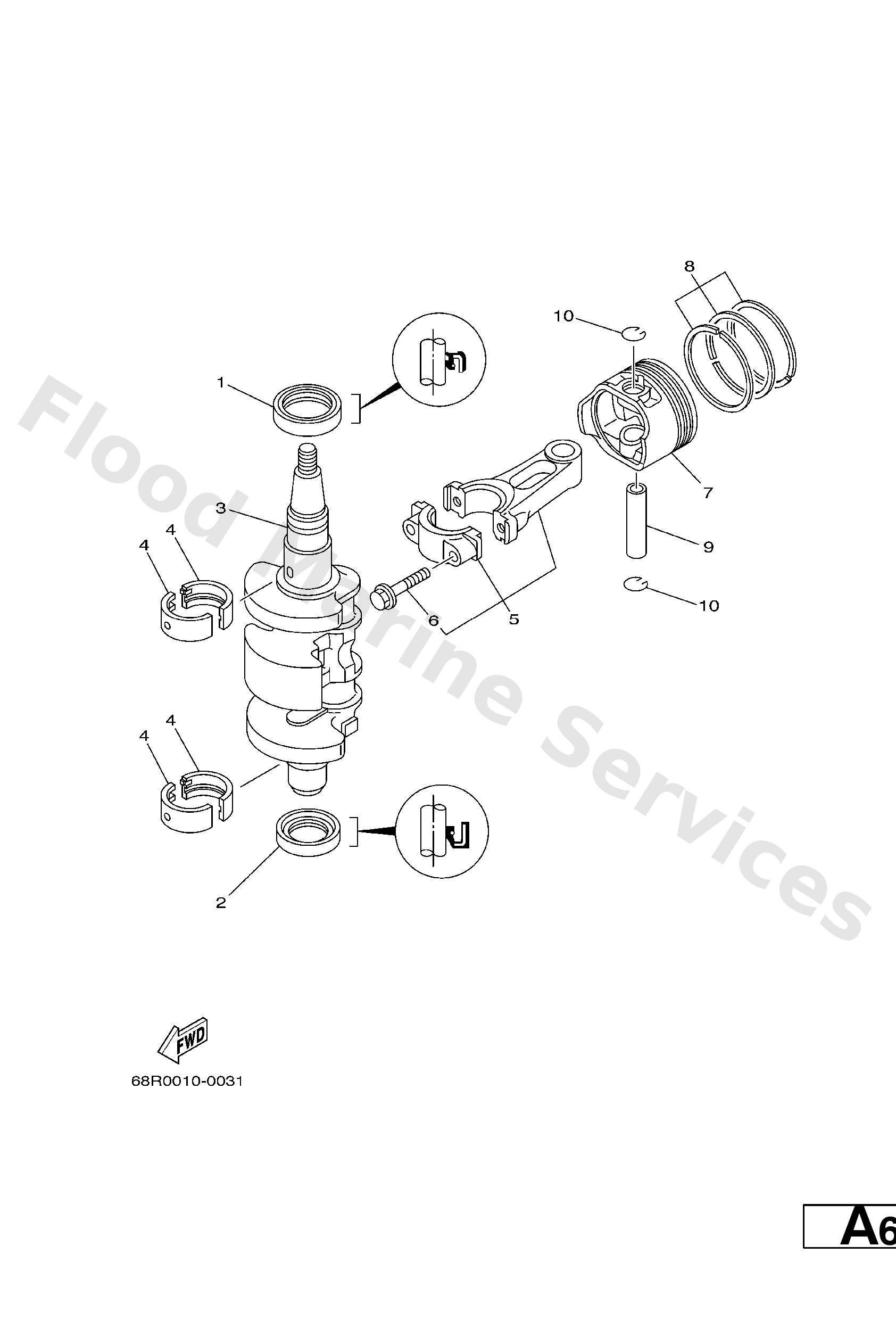

Diagram: CRANKSHAFT. PISTON

Diagram

Parts List

93102−30M22

Oil seal (6g8)

Diagram Reference: 1

93101−25M69

Oil seal

Diagram Reference: 2

68T−11411−00

3−

Diagram Reference: 3

68T−11416−00 (UR BROWN)

Plane bearing, crankshaft 1

Diagram Reference: 4

68T−11416−10 (UR BLACK)

Plane bearing, crankshaft 1

Diagram Reference: 4

68T−11416−20 (UR BLUE)

Plane bearing, crankshaft 1

Diagram Reference: 4

68T−11650−00

Connecting rod kit

Diagram Reference: 5

67D−11654−00

Bolt, connecting rod

Diagram Reference: 6

68T−11631−00−96

Piston (std)

Diagram Reference: 7

68T−11635−00 (AP)

Piston (0.25mm o/s)

Diagram Reference: 7

68T−11636−00 (AP)

Piston (0.50mm o/s)

Diagram Reference: 7

68T−11603−01

Piston ring set (std)

Diagram Reference: 8

68T−11604−01 (AP)

Piston ring set (0.25mm o/s)

Diagram Reference: 8

68T−11605−01 (AP)

Piston ring set (0.50mm o/s)

Diagram Reference: 8

68T−11633−00

Pin, piston

Diagram Reference: 9

93450−15023

Circlip 131116340000

Diagram Reference: 10
