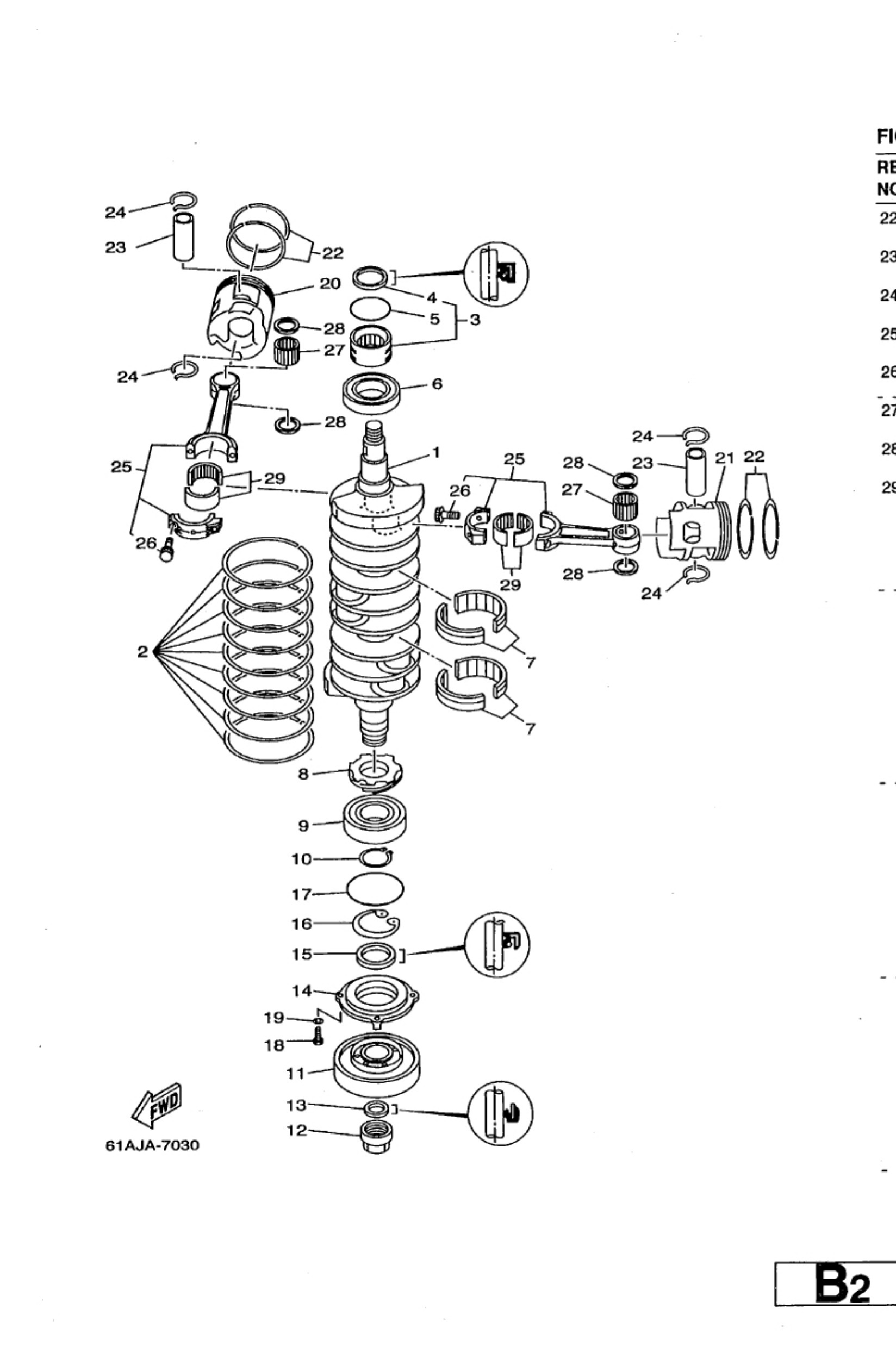

Diagram: CRANKSHAFT. PISTON

Diagram

Parts List

64D1160501 (AP)
Piston ring set (0.50mm o/s)
Diagram Reference: 22
Get Part
61A1163302
Pin, piston
Diagram Reference: 23
Get Part
61A1163400
Clip, piston pin
Diagram Reference: 24
Get Part
66K1165000
Connecting rod kit
Diagram Reference: 25
Get Part
9010909M62
Bolt
Diagram Reference: 26
Get Part
93310326V4
Bearing, cylindrical(61a)
Diagram Reference: 27
Get Part
9020126M03
Washer, plate(61a)
Diagram Reference: 28
Get Part
93310840U1
Bearing
Diagram Reference: 29
Get Part
61AJA7030
—E
Diagram Reference: 29
Get Part
