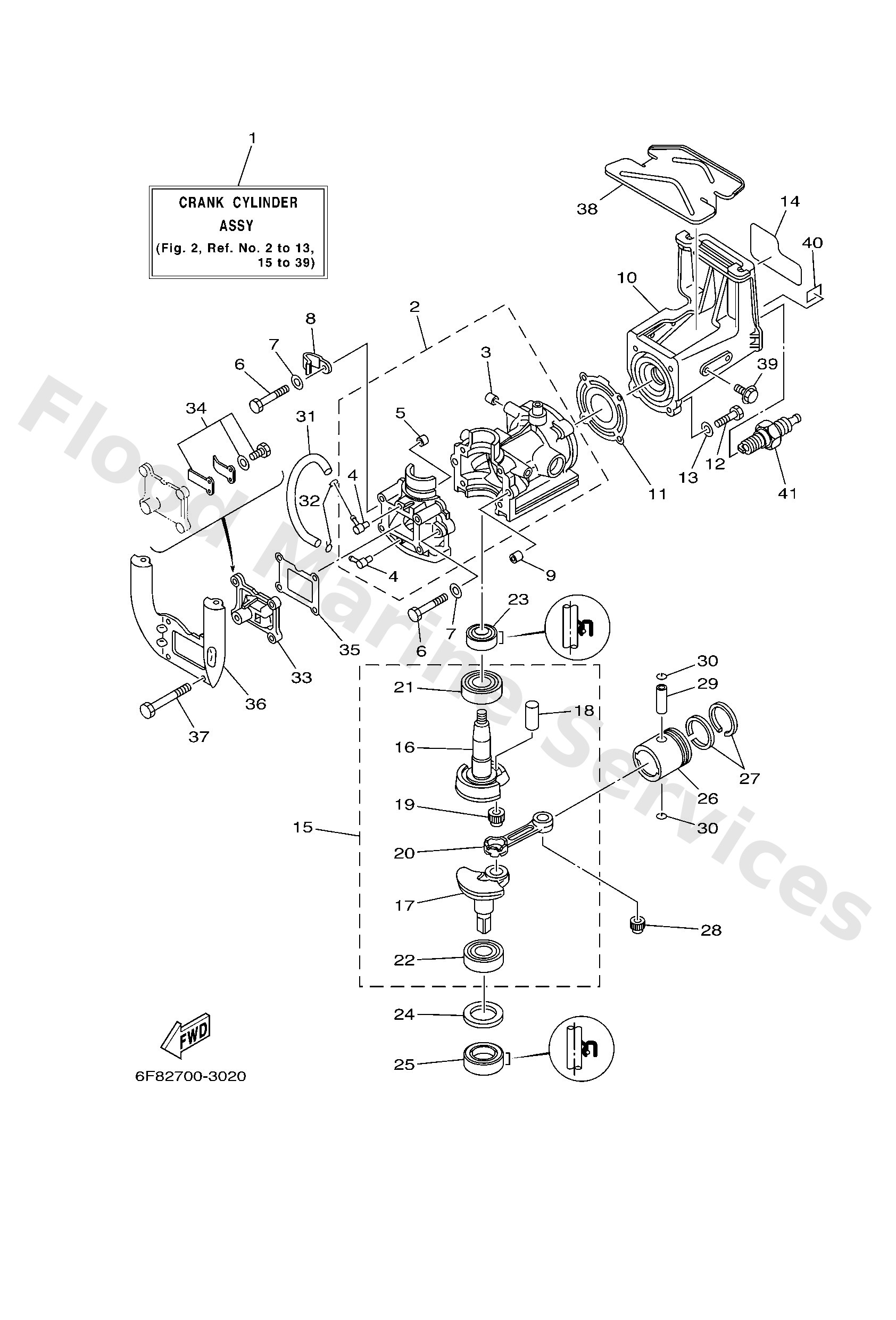

Diagram: CYLINDER & CRANKCASE

Diagram

Parts List

6F8W0090641S
Crank cylinder assembly
Diagram Reference: 1
Get Part
6F815100611S
Crankcase assembly
Diagram Reference: 2
Get Part
9033606001
Plug, blind 6551131300
Diagram Reference: 3
Get Part
6501448503
Pipe, joint
Diagram Reference: 4
Get Part
6241137900
Valve, check
Diagram Reference: 5
Get Part
9701306040
Bolt (682)
Diagram Reference: 6
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 7
Get Part
9046506M86
Clamp
Diagram Reference: 8
Get Part
9953010014
Pin, dowel
Diagram Reference: 9
Get Part
6A111111021S
Head, cylinder 1
Diagram Reference: 10
Get Part
6F811181A1
Gasket, cylinder head 1
Diagram Reference: 11
Get Part
9709506025
Bolt
Diagram Reference: 12
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 13
Get Part
6A14267812
Graphic, rear
Diagram Reference: 14
Get Part
6A11140000
-
Diagram Reference: 15
Get Part
6461141201
Crank 1
Diagram Reference: 16
Get Part
6A11142200
Crank 2
Diagram Reference: 17
Get Part
6461168100
Pin, crank 1
Diagram Reference: 18
Get Part
9331031439
Brg,cyl-cal roller 5g tm
Diagram Reference: 19
Get Part
6461165102
Rod, connecting
Diagram Reference: 20
Get Part
9330600409
Brg,r-b 6004 42mm 69g nk
Diagram Reference: 21
Get Part
9330630204
Brg,r-b 6302 42mm 82g nk
Diagram Reference: 22
Get Part
9310220070
Oil seal
Diagram Reference: 23
Get Part
9020135300
Washer, Plate
Diagram Reference: 24
Get Part
9310215M32
Oil seal(6a1)
Diagram Reference: 25
Get Part
6F8116310098
Piston (std)
Diagram Reference: 26
Get Part
6F81163500 (AP)
Piston (1st o.s)
Diagram Reference: 26
Get Part
6F81163600 (AP)
Piston (2nd o.s)
Diagram Reference: 26
Get Part
6F81161000
Piston ring set (std)
Diagram Reference: 27
Get Part
6F81161010 (AP)
Piston ring set (0.25mm o/s)
Diagram Reference: 27
Get Part
6F81161020 (AP)
Piston ring set (0.50mm o/s)
Diagram Reference: 27
Get Part
93310210V1
Bearing (27v)
Diagram Reference: 28
Get Part
6461163300
Pin,piston
Diagram Reference: 29
Get Part
9345011021
Circlip 101116340000
Diagram Reference: 30
Get Part
9044507254
Hose (l200)
Diagram Reference: 31
Get Part
9046706016
Clip (655)
Diagram Reference: 32
Get Part
6A11361000
Reed valve assembly
Diagram Reference: 33
Get Part
6A1W000400
Reed set
Diagram Reference: 34
Get Part
6A113621A0
Gasket, valve seat
Diagram Reference: 35
Get Part
6A11577101
Stay 1
Diagram Reference: 36
Get Part
9701306060
Bolt, hexagon
Diagram Reference: 37
Get Part
6A12414100
Protector, fuel tank
Diagram Reference: 38
Get Part
9589506010
Bolt, flange(7ht)
Diagram Reference: 39
Get Part
6644279100
Mark 1
Diagram Reference: 40
Get Part
6644279110 (FOR CHN,CAR)
Mark 1
Diagram Reference: 40
Get Part
9470200040
Plug, spark (b7hs)
Diagram Reference: 41
Get Part
9470200272 (FOR CHN,CAR)
Plug, spark (br7hs)
Diagram Reference: 41
Get Part
