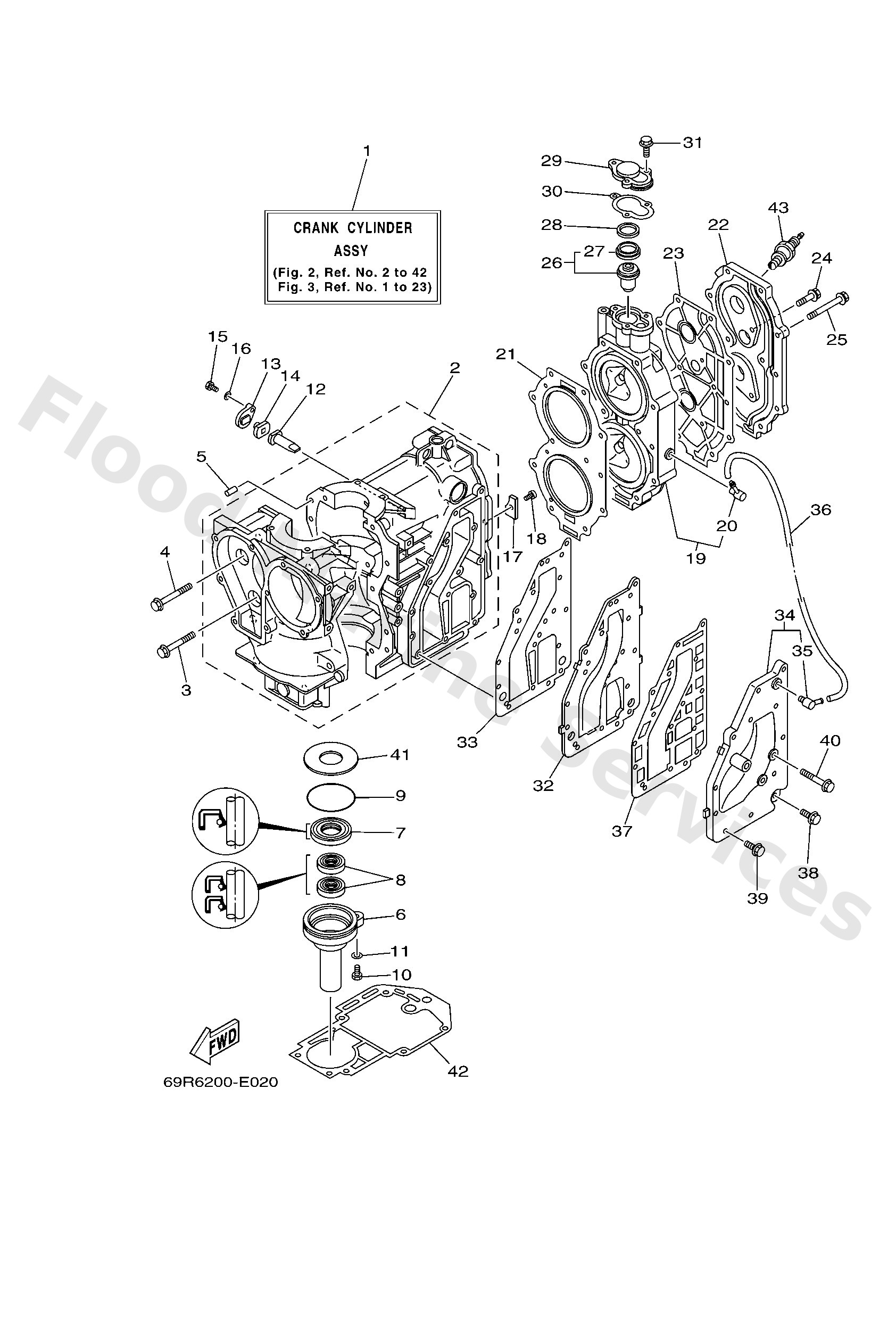

Parts List
Crank cylinder assembly
Diagram Reference: 1
Crank cylinder assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Bolt, with washer
Diagram Reference: 3
Bolt, with washer
Diagram Reference: 4
Pin, dowel (614)
Diagram Reference: 5
Housing, oil seal
Diagram Reference: 6
Oil seal
Diagram Reference: 7
Oil seal
Diagram Reference: 8
O-ring (683)
Diagram Reference: 9
Bolt(61k)
Diagram Reference: 10
Washer, plain (646)
Diagram Reference: 11
Anode
Diagram Reference: 12
Cover, anode
Diagram Reference: 13
Grommet, anode
Diagram Reference: 14
Bolt, hexagon deep recess
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Anode
Diagram Reference: 17
Screw, countersunk
Diagram Reference: 18
Head, cylinder 1
Diagram Reference: 19
Head, cylinder 1
Diagram Reference: 19
Nipple, hose
Diagram Reference: 20
Gasket, cylinder head 1
Diagram Reference: 21
Cover, cylinder head 1
Diagram Reference: 22
Gasket, head cover 1
Diagram Reference: 23
Bolt, with washer
Diagram Reference: 24
Bolt, with washer
Diagram Reference: 25
Thermostat
Diagram Reference: 26
Seal, thermostat
Diagram Reference: 27
Washer, plate (650)
Diagram Reference: 28
Cover, thermostat
Diagram Reference: 29
Gasket, cover
Diagram Reference: 30
Inner cover,exhaust
Diagram Reference: 32
Gasket, exhaust inner cover
Diagram Reference: 33
Outer cover, exhaust
Diagram Reference: 34
Hose (L105)
Diagram Reference: 36
Gasket, exhaust outer cover
Diagram Reference: 37
Bolt, with washer
Diagram Reference: 38
Bolt, with washer
Diagram Reference: 39
Bolt, hexagon w/w deep recess
Diagram Reference: 40
Washer plate 648115870000
Diagram Reference: 41
Gasket, upper casing
Diagram Reference: 42
Plug, spark (b7hs-10)
Diagram Reference: 43
Plug, spark (b8hs-10)
Diagram Reference: 43
Plug, spark (br7hs-10)
Diagram Reference: 43
Plug, spark (br8hs-10)
Diagram Reference: 43
