Parts List

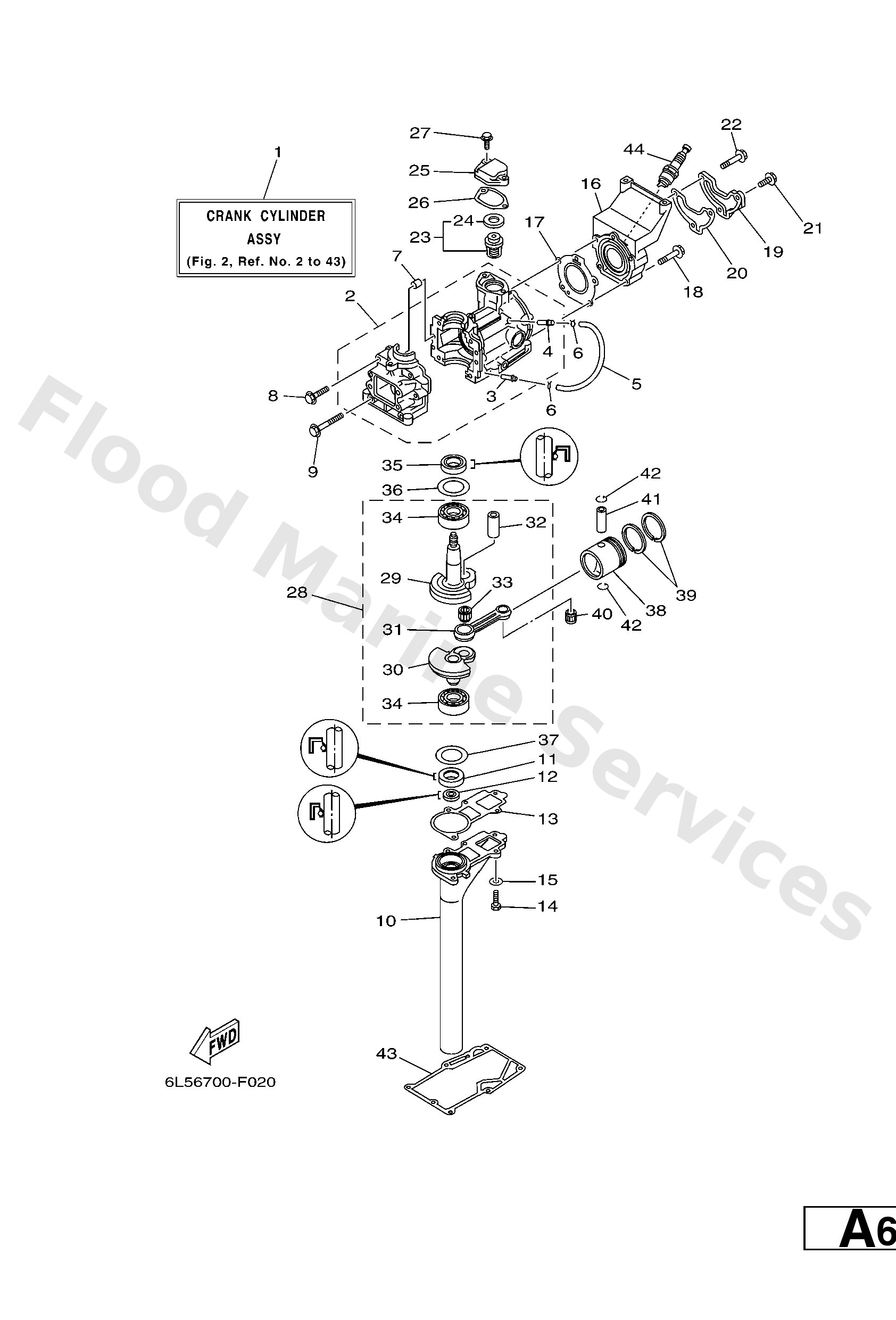

Crank cylinder assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Pipe, joint
Diagram Reference: 3
Nipple, hose
Diagram Reference: 4
Hose (l200)
Diagram Reference: 5
Clip (655)
Diagram Reference: 6
Pin, dowel (614)
Diagram Reference: 7
Bolt (6e0)
Diagram Reference: 8
Bolt, washer based(6l5)
Diagram Reference: 9
Housing, oil seal
Diagram Reference: 10
Oil seal(6j1)
Diagram Reference: 11
Oil seal(6l5)
Diagram Reference: 12
Gasket, oil seal housing
Diagram Reference: 13
Bolt(7u8)
Diagram Reference: 14
Washer, plain (646)
Diagram Reference: 15
Head, cylinder 1
Diagram Reference: 16
Gasket, cylinder head 1
Diagram Reference: 17
Bolt, with washer
Diagram Reference: 18
Cover, cylinder head 1
Diagram Reference: 19
Gasket, head cover
Diagram Reference: 20
Bolt, with washer
Diagram Reference: 21
Bolt, with washer
Diagram Reference: 22
Thermostat
Diagram Reference: 23
Seal, thermostat
Diagram Reference: 24
Cover, thermostat
Diagram Reference: 25
Gasket, cover
Diagram Reference: 26
Crankshaft assembly
Diagram Reference: 28
Crank 1
Diagram Reference: 29
Crank 2
Diagram Reference: 30
Rod, connecting
Diagram Reference: 31
Pin, crank 1
Diagram Reference: 32
Brg,needle
Diagram Reference: 33
Bearing(6e0)
Diagram Reference: 34
Oil seal(6j1)
Diagram Reference: 35
Washer, plate(6l5)
Diagram Reference: 36
Washer, plate(6l5)
Diagram Reference: 37
Piston (std)
Diagram Reference: 38
Piston (0.25mm o/s)
Diagram Reference: 38
Piston (0.50mm o/s)
Diagram Reference: 38
Piston ring set (std)
Diagram Reference: 39
Piston ring set (0.25mm o/s)
Diagram Reference: 39
Piston ring set (0.50mm o/s)
Diagram Reference: 39
Bearing, cylindrical(6l5)
Diagram Reference: 40
Pin, piston
Diagram Reference: 41
Circlip 132116340000
Diagram Reference: 42
Gasket, upper casing
Diagram Reference: 43
Plug, spark (br6hs-10)
Diagram Reference: 44
