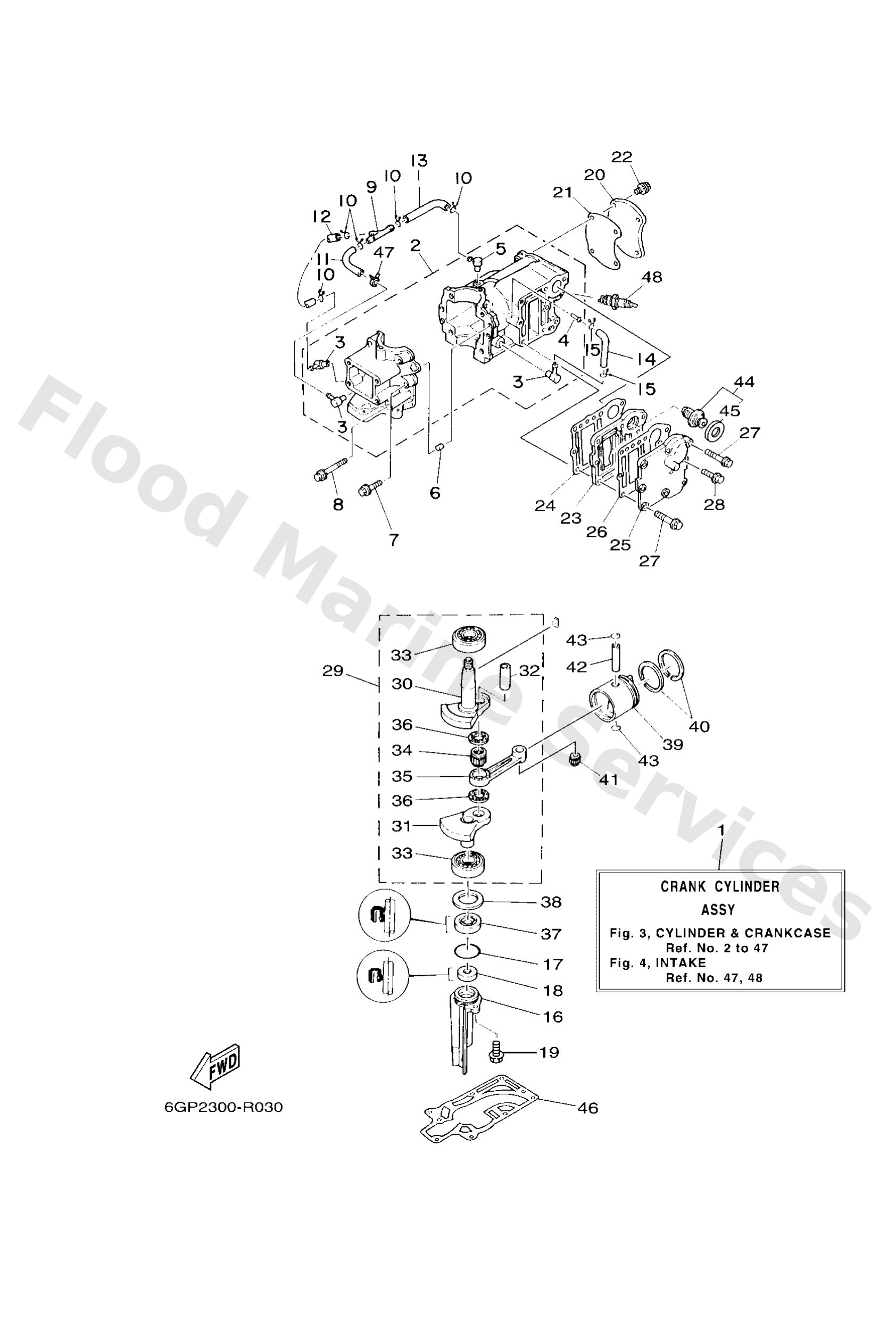

Diagram: CYLINDER & CRANKCASE

Diagram

Parts List

6E3W0090041S
Crank cylinder assembly
Diagram Reference: 1
Get Part
6E31510002
Crankcase assembly
Diagram Reference: 2
Get Part
6501137001
Check valve assembly
Diagram Reference: 3
Get Part
6241448500
Pipe, joint
Diagram Reference: 4
Get Part
6E51137201
Nipple, hose
Diagram Reference: 5
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 6
Get Part
9010506M16
Bolt (6e0)
Diagram Reference: 7
Get Part
9010506M17
Bolt (6e0)
Diagram Reference: 8
Get Part
6E02437800
Pipe, joint
Diagram Reference: 9
Get Part
9046706016
Clip (655)
Diagram Reference: 10
Get Part
9044507M00
Hose (l200)
Diagram Reference: 11
Get Part
9044507M28
Hose (l200)
Diagram Reference: 12
Get Part
9044507M32
Hose (l200)
Diagram Reference: 13
Get Part
6E01539603CA
Housing, oil seal
Diagram Reference: 16
Get Part
9321031MJ5
O-ring
Diagram Reference: 17
Get Part
9310110M25
Oil seal(6e0)
Diagram Reference: 18
Get Part
9759506516
Bolt, with washer(6r6)
Diagram Reference: 19
Get Part
6E311191011S
Cover, cylinder head 1
Diagram Reference: 20
Get Part
6E311193A1
Gasket,head cover
Diagram Reference: 21
Get Part
9010506039
Bolt, flange
Diagram Reference: 22
Get Part
6E341111011S
Inner cover, exhaust
Diagram Reference: 23
Get Part
6E341112A1
Gasket,inner cover exhaust
Diagram Reference: 24
Get Part
6E341113011S
Outer cover, exhaust
Diagram Reference: 25
Get Part
6E341114A1
Gasket,outer cover exhaust
Diagram Reference: 26
Get Part
9010506037
Bolt, flange
Diagram Reference: 27
Get Part
6E31140000
Crank ass'y
Diagram Reference: 29
Get Part
6E31141200
Crank 1
Diagram Reference: 30
Get Part
6E31142200
Crank 2
Diagram Reference: 31
Get Part
6G11168100
Pin, crank
Diagram Reference: 32
Get Part
93306204U0
Bearing(6e0)
Diagram Reference: 33
Get Part
93310418V1
Bearing (6e0)
Diagram Reference: 34
Get Part
6E01165101
Rod, connecting
Diagram Reference: 35
Get Part
9020918112
Washer 132116850000
Diagram Reference: 36
Get Part
9310120M29
Oil seal(6j1)
Diagram Reference: 37
Get Part
9020132M48
Shim (t:0.90mm)
Diagram Reference: 38
Get Part
6E3116310098
Piston
Diagram Reference: 39
Get Part
6J11161000
Piston ring set (std)
Diagram Reference: 40
Get Part
93310112V0
Bearing (6e0)
Diagram Reference: 41
Get Part
6G11163300
Pin, piston
Diagram Reference: 42
Get Part
9345013022
Circlip 132116340000
Diagram Reference: 43
Get Part
6E51241102
Thermostat
Diagram Reference: 44
Get Part
6E51241200
Seal, thermostat
Diagram Reference: 45
Get Part
6E045113A1
Gasket,upper casing
Diagram Reference: 46
Get Part
9046807M02
Clip (6e5)
Diagram Reference: 47
Get Part
9470200272
Plug, spark (br7hs)
Diagram Reference: 48
Get Part
