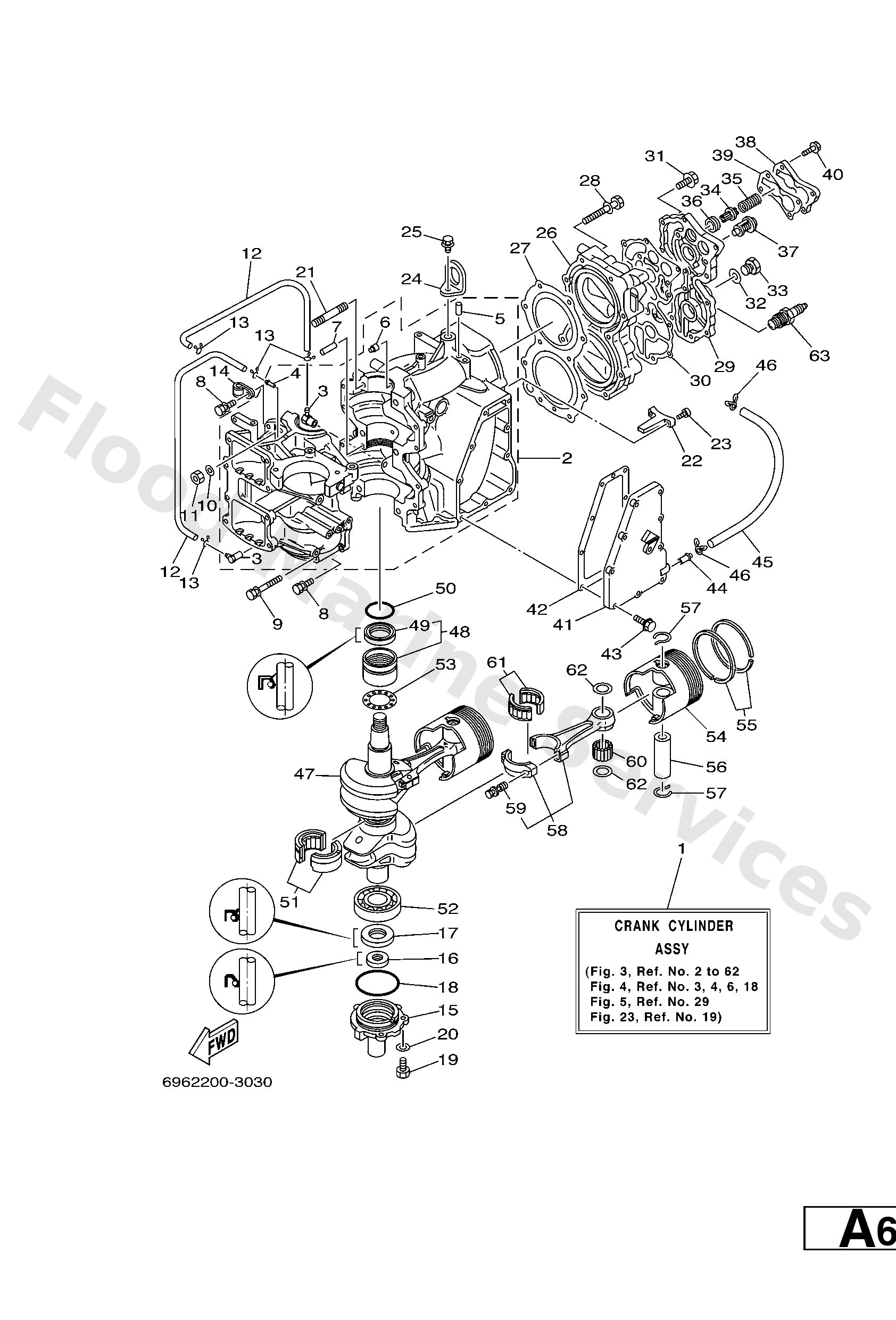

Parts List
Crank Cylinder assembly
Diagram Reference: 1
Crank cylinder assembly
Diagram Reference: 1
Crank cylinder assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Crankcase assembly
Diagram Reference: 2
Crankcase assembly
Diagram Reference: 2
Check valve assembly
Diagram Reference: 3
Pipe, joint
Diagram Reference: 4
Pin,dowel (626)
Diagram Reference: 5
Lock, bearing
Diagram Reference: 6
Pin, dowel (626)
Diagram Reference: 7
Bolt, with washer (697)
Diagram Reference: 8
Bolt, with washer
Diagram Reference: 9
Washer, plate
Diagram Reference: 10
Nut(3bm)
Diagram Reference: 11
Hose (l390)
Diagram Reference: 12
Clip (655)
Diagram Reference: 13
Clamp 6208236100
Diagram Reference: 14
Housing, oil seal
Diagram Reference: 15
Oil seal (18x30x5-663)
Diagram Reference: 16
Oil seal (28x47x7-663)
Diagram Reference: 17
Ring, o(663)
Diagram Reference: 18
Bolt, hexagon deep recess
Diagram Reference: 19
Washer, plain (646)
Diagram Reference: 20
Bolt, stud(663)
Diagram Reference: 21
Anode
Diagram Reference: 22
Screw, flat head(ga5)
Diagram Reference: 23
Hanger, engine
Diagram Reference: 24
Bolt, with washer
Diagram Reference: 25
Head, cylinder 1
Diagram Reference: 26
Gasket, cylinder head 1
Diagram Reference: 27
Bolt, with washer
Diagram Reference: 28
Cover, cylinder head 1
Diagram Reference: 29
Gasket, head cover
Diagram Reference: 30
Bolt, with washer
Diagram Reference: 31
Gasket (663)
Diagram Reference: 32
Plug, (663)
Diagram Reference: 33
Valve, pressure control
Diagram Reference: 34
Spring, compression(663)
Diagram Reference: 35
Grommet(663)
Diagram Reference: 36
Thermostat
Diagram Reference: 37
Cover, thermostat
Diagram Reference: 38
Gasket, thermostat
Diagram Reference: 39
Bolt, with washer
Diagram Reference: 40
Outer cover, exhaust
Diagram Reference: 41
Gasket, exhaust outer cover
Diagram Reference: 42
Pipe, joint 2
Diagram Reference: 44
Pipe 1
Diagram Reference: 45
Clip, pipe 6162435600
Diagram Reference: 46
Shaft, crank
Diagram Reference: 47
Brg,needle
Diagram Reference: 48
Oil seal (697)
Diagram Reference: 49
O-ring (647)
Diagram Reference: 50
Bearing, needle (6f0)
Diagram Reference: 51
Brg,r-b 6206 66mm 236g (696)
Diagram Reference: 52
Brg,r-b 6206 66mm 236g (696)
Diagram Reference: 52
Shim, crank
Diagram Reference: 53
Piston (std)
Diagram Reference: 54
Piston (0.25mm o/s)
Diagram Reference: 54
Piston (0.50mm o/s)
Diagram Reference: 54
Piston ring set (std)
Diagram Reference: 55
Piston ring set (0.25mm o/s)
Diagram Reference: 55
Piston ring set (0.50mm o/s)
Diagram Reference: 55
Pin, piston
Diagram Reference: 56
Clip, piston pin
Diagram Reference: 57
Connecting rod assembly
Diagram Reference: 58
Bolt
Diagram Reference: 59
Pin, dowel(663)
Diagram Reference: 60
Bearing (688)
Diagram Reference: 61
Washer, plate(663)
Diagram Reference: 62
Plug, spark (b8hs-10)
Diagram Reference: 63
Plug, spark (b7hs)
Diagram Reference: 63
Plug, spark (b8hs)
Diagram Reference: 63
Plug, spark (br8hs-10)
Diagram Reference: 63
Plug, spark (br7hs)
Diagram Reference: 63
