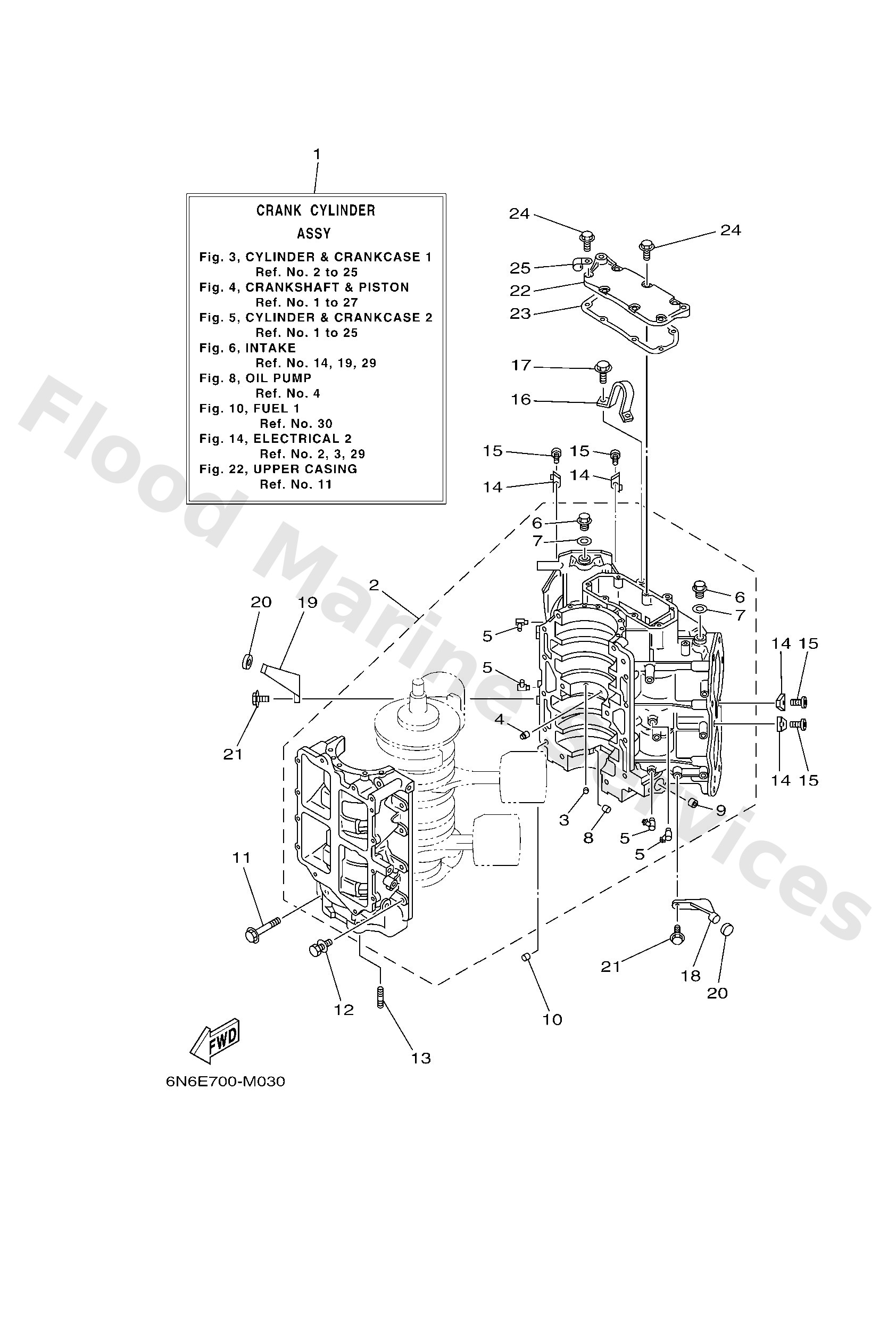

Diagram: CYLINDER & CRANKCASE 1

Diagram

Parts List

6N6W0090181S
Crank cylinder assembly
Diagram Reference: 1
Get Part
6N61510010
Crankcase assembly
Diagram Reference: 2
Get Part
6241137900
Valve, check
Diagram Reference: 3
Get Part
6631151801
Lock, bearing
Diagram Reference: 4
Get Part
6E51137201
Nipple, hose
Diagram Reference: 5
Get Part
9034014M06
Plug, straight screw(62y)
Diagram Reference: 6
Get Part
9043014115
Gasket (663)
Diagram Reference: 7
Get Part
9038406002
Bush, bimetal formed
Diagram Reference: 8
Get Part
9038414011
Bush, bimetal formed
Diagram Reference: 9
Get Part
9360812063
Pin, dowel (626)
Diagram Reference: 10
Get Part
9010510M20
Bolt (6e5)
Diagram Reference: 11
Get Part
9011908M94
Bolt, with washer
Diagram Reference: 12
Get Part
9011608026
Bolt, stud (6e5)
Diagram Reference: 13
Get Part
6E51132500
Anode
Diagram Reference: 14
Get Part
9878004015
Screw, flat head(ga5)
Diagram Reference: 15
Get Part
6E51111901
Hanger, engine
Diagram Reference: 16
Get Part
9011908MA3
Bolt, with washer
Diagram Reference: 17
Get Part
6E542761001S
Stopper
Diagram Reference: 18
Get Part
6E542762001S
Stopper
Diagram Reference: 19
Get Part
68F4453301
Damper, upper mount rubber
Diagram Reference: 20
Get Part
9011906MA2
Bolt, with washer
Diagram Reference: 21
Get Part
6K711371011S
Cover
Diagram Reference: 22
Get Part
6E511381A2
Gasket 1
Diagram Reference: 23
Get Part
9046506M86
Clamp
Diagram Reference: 25
Get Part
