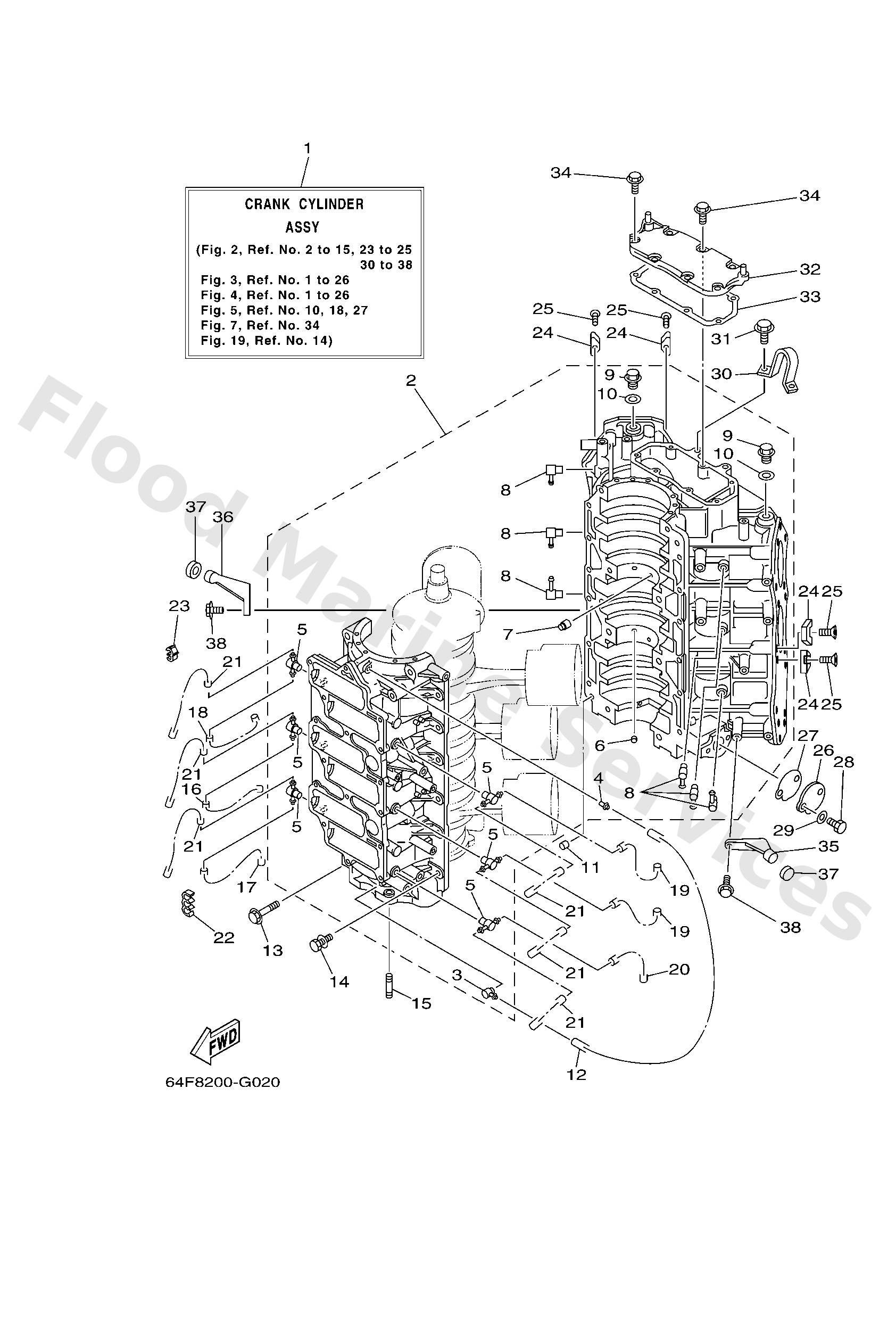

Parts List
Crank Cylinder assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Nipple, hose
Diagram Reference: 3
Pipe, joint
Diagram Reference: 4
Nipple, hose
Diagram Reference: 5
Valve, check
Diagram Reference: 6
Lock, bearing
Diagram Reference: 7
Check valve assembly
Diagram Reference: 8
Plug, straight screw(62y)
Diagram Reference: 9
Gasket (663)
Diagram Reference: 10
Pin, dowel (626)
Diagram Reference: 11
Bolt (6e5)
Diagram Reference: 13
Bolt, with washer
Diagram Reference: 14
Bolt, stud (6e5)
Diagram Reference: 15
Hose (l770)
Diagram Reference: 16
Hose (l390)
Diagram Reference: 17
Hose (L300)
Diagram Reference: 18
Hose (l390)
Diagram Reference: 19
Hose (l390)
Diagram Reference: 20
Hose (L260)
Diagram Reference: 21
Clamp (6g5)
Diagram Reference: 22
Clamp(6h0)
Diagram Reference: 23
Anode
Diagram Reference: 24
Screw, flat head(ga5)
Diagram Reference: 25
Cover
Diagram Reference: 26
Bolt, hexagon deep recess
Diagram Reference: 28
Washer, plain (646)
Diagram Reference: 29
Hanger, engine
Diagram Reference: 30
Bolt, with washer
Diagram Reference: 31
Cover
Diagram Reference: 32
Gasket 1
Diagram Reference: 33
Bolt, with washer
Diagram Reference: 34
Stopper
Diagram Reference: 35
Stopper
Diagram Reference: 36
Damper, upper mount rubber
Diagram Reference: 37
