Parts List

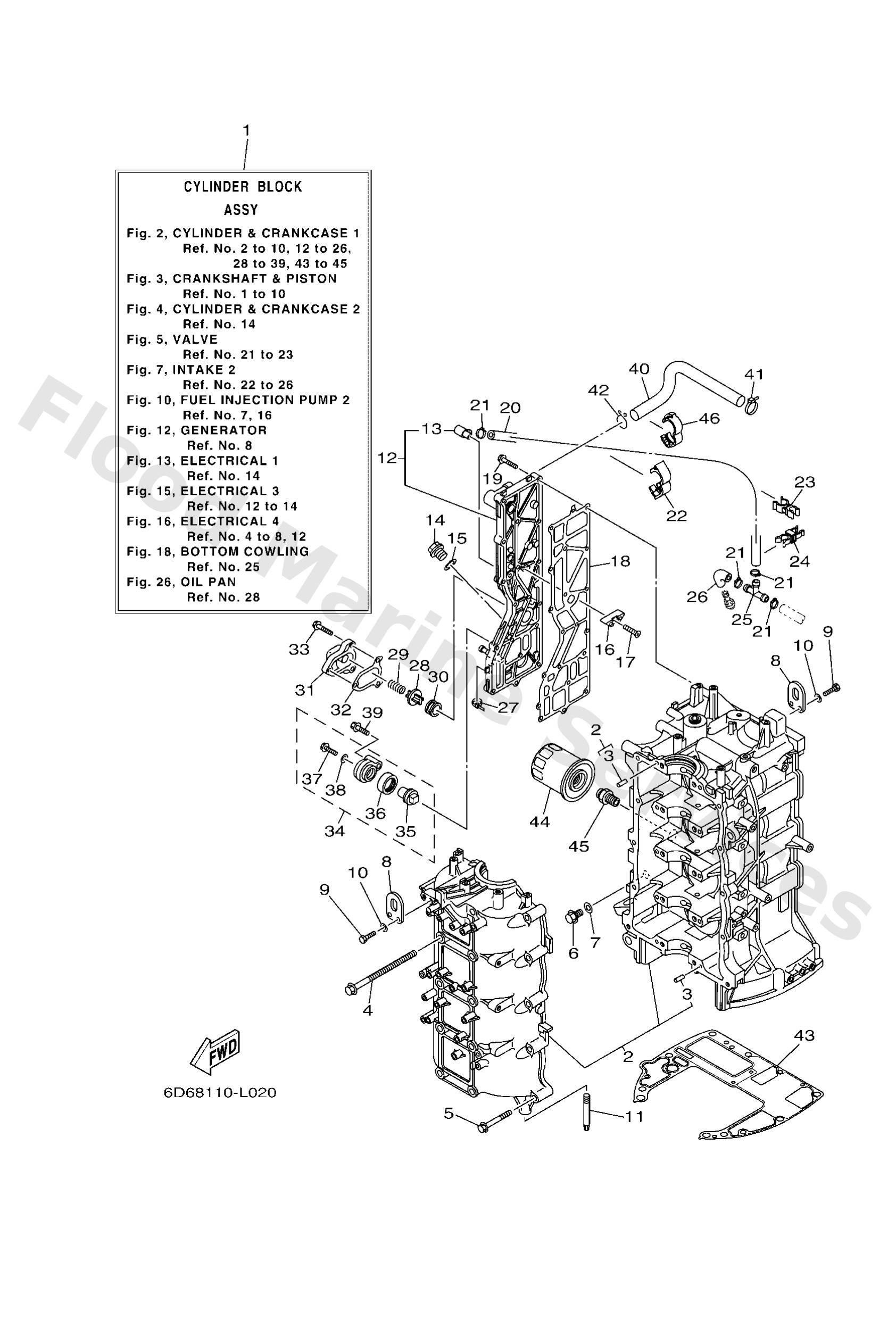

Cylinder block assembly (6d8-07)
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Pin, dowel (614)
Diagram Reference: 3
Bolt, with washer
Diagram Reference: 4
Bolt, with washer
Diagram Reference: 5
Plug, straight screw(62y)
Diagram Reference: 6
Gasket (663)
Diagram Reference: 7
Hanger, engine
Diagram Reference: 8
Bolt(7u8)
Diagram Reference: 9
Washer, plain (646)
Diagram Reference: 10
Guide 1
Diagram Reference: 11
Outer cover, exhaust
Diagram Reference: 12
Nipple, hose
Diagram Reference: 13
Plug, straight screw
Diagram Reference: 14
Gasket (1j7)
Diagram Reference: 15
Anode
Diagram Reference: 16
Screw, flat head(ga5)
Diagram Reference: 17
Gasket, exhaust outer cover
Diagram Reference: 18
Bolt, with washer
Diagram Reference: 19
Pipe 1
Diagram Reference: 20
Clamp
Diagram Reference: 21
Clamp
Diagram Reference: 22
Clamp
Diagram Reference: 23
Clamp
Diagram Reference: 24
Pipe, joint
Diagram Reference: 25
Pipe 6
Diagram Reference: 26
Valve, pressure control
Diagram Reference: 28
Spring, compression (688)
Diagram Reference: 29
Grommet (688)
Diagram Reference: 30
Cover 1
Diagram Reference: 31
Gasket
Diagram Reference: 32
Bolt, with washer
Diagram Reference: 33
Anode cover assembly
Diagram Reference: 34
Anode
Diagram Reference: 35
Grommet, anode
Diagram Reference: 36
Bolt (689)
Diagram Reference: 37
Gasket (6f5)
Diagram Reference: 38
Bolt, hexagon w/w deep recess
Diagram Reference: 39
Hose 1
Diagram Reference: 40
Clamp(63m)
Diagram Reference: 41
Clip
Diagram Reference: 42
Gasket, cylinder
Diagram Reference: 43
Element assembly, oil cleaner
Diagram Reference: 44
Bolt, union
Diagram Reference: 45
Clamp
Diagram Reference: 46
