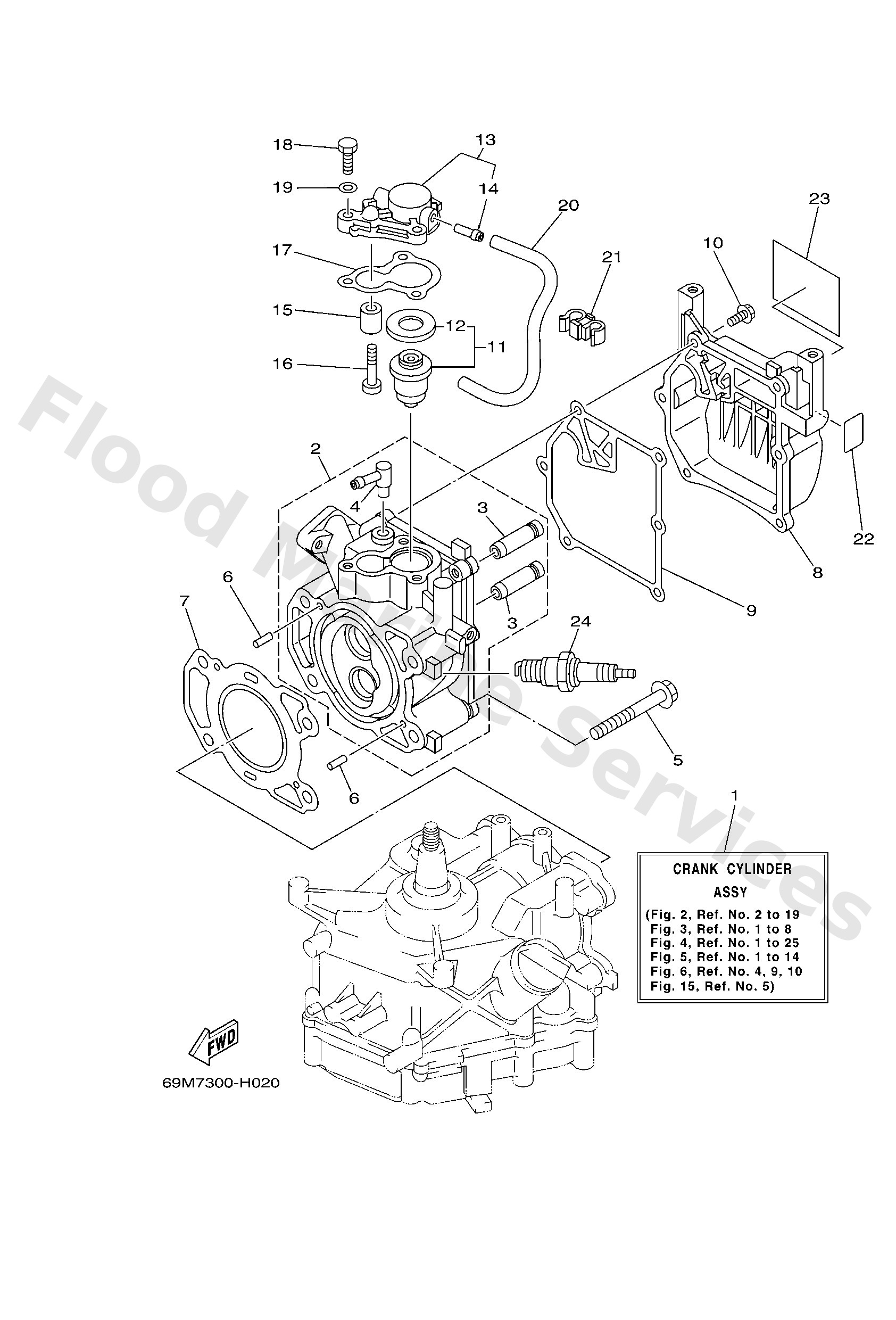

Diagram: CYLINDER & CRANKCASE 1

Diagram

Parts List

69MWE090011S
Crank Cylinder assembly
Diagram Reference: 1
Get Part
69ME1111011S
Head cylinder (2.5)
Diagram Reference: 2
Get Part
67D1113310
Guide, valve 1
Diagram Reference: 3
Get Part
6761137200
Nipple, hose
Diagram Reference: 4
Get Part
9010508M36
Bolt (6g8)
Diagram Reference: 5
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 6
Get Part
69M1118100
Gasket, cylinder head 1
Diagram Reference: 7
Get Part
69ME1191001S
Cover,cylinder head(f2.5)
Diagram Reference: 8
Get Part
69M11193A0
Gasket, head cover 1
Diagram Reference: 9
Get Part
9010506039
Bolt, flange
Diagram Reference: 10
Get Part
69M1241101
Thermostat
Diagram Reference: 11
Get Part
6881241200
Seal, thermostat
Diagram Reference: 12
Get Part
69ME2413001S
Cover, thermostat
Diagram Reference: 13
Get Part
6502437800
Pipe, joint 2
Diagram Reference: 14
Get Part
68DE132500
Anode
Diagram Reference: 15
Get Part
9788005025
Screw, panhead (a93)
Diagram Reference: 16
Get Part
68DE2414A0
Gasket, cover
Diagram Reference: 17
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 18
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 19
Get Part
9044509808
Hose
Diagram Reference: 20
Get Part
9046409013
Clamp
Diagram Reference: 21
Get Part
67D4279110
Mark 1
Diagram Reference: 22
Get Part
68DE213860
Mark, Caution
Diagram Reference: 23
Get Part
9470200248
Plug, spark (br6hs)
Diagram Reference: 24
Get Part
