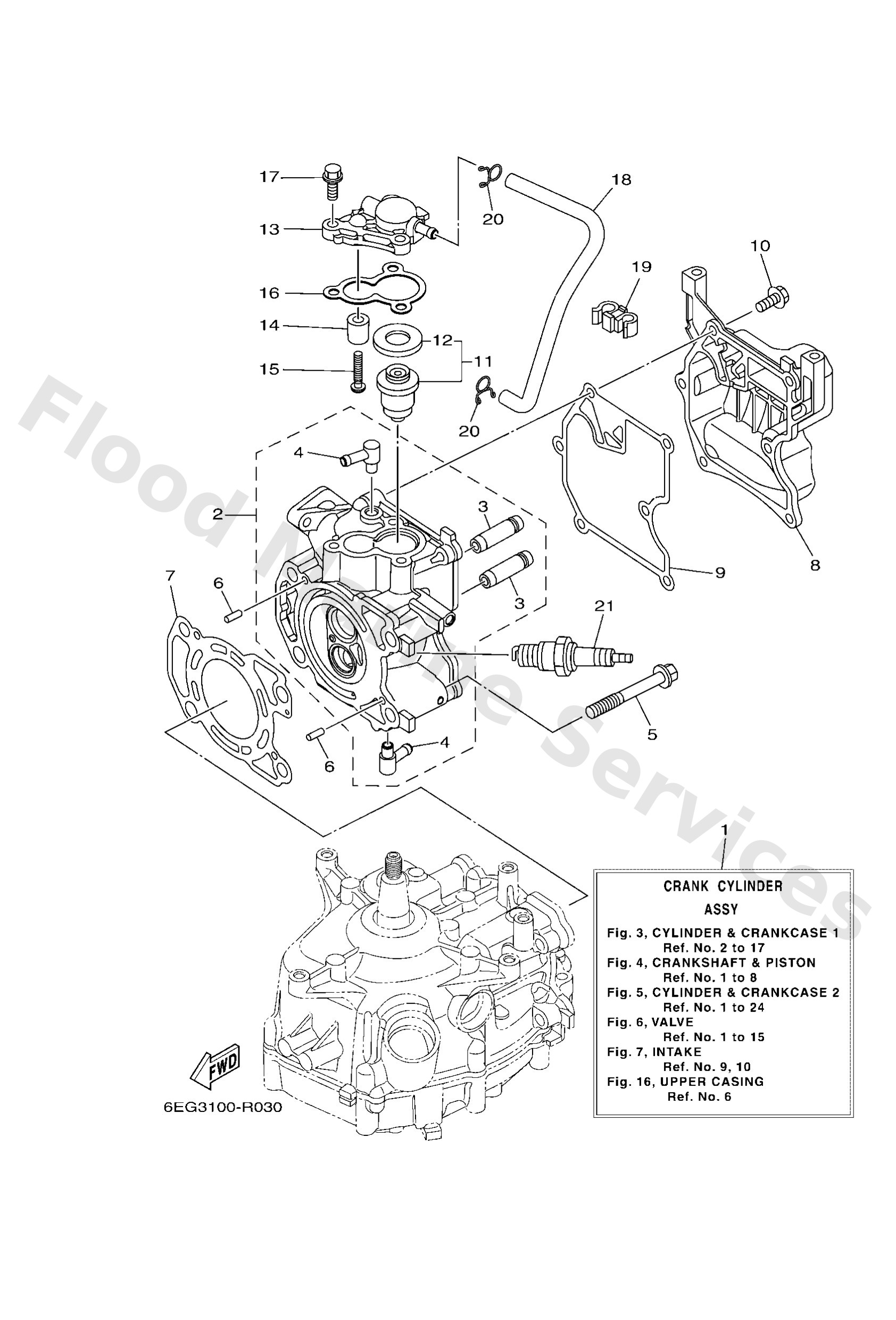

Diagram: CYLINDER & CRANKCASE 1
Parts List
Crank Cylinder assembly
Diagram Reference: 1
Cylinder head assembly
Diagram Reference: 2
Guide, valve 1
Diagram Reference: 3
Nipple, hose
Diagram Reference: 4
Bolt (6g8)
Diagram Reference: 5
Pin, dowel (688)
Diagram Reference: 6
Gasket, cylinder h
Diagram Reference: 7
Cover, cylinder he
Diagram Reference: 8
Gasket, head cover
Diagram Reference: 9
Bolt, flange
Diagram Reference: 10
Thermostat
Diagram Reference: 11
Seal, thermostat
Diagram Reference: 12
Cover, thermostat
Diagram Reference: 13
Anode
Diagram Reference: 14
Screw, panhead (a93)
Diagram Reference: 15
Gasket, cover
Diagram Reference: 16
Bolt, with washer
Diagram Reference: 17
Hose
Diagram Reference: 18
Clamp
Diagram Reference: 19
Clip(6k8)
Diagram Reference: 20
Plug, spark (cr6hsb)
Diagram Reference: 21
