Parts List

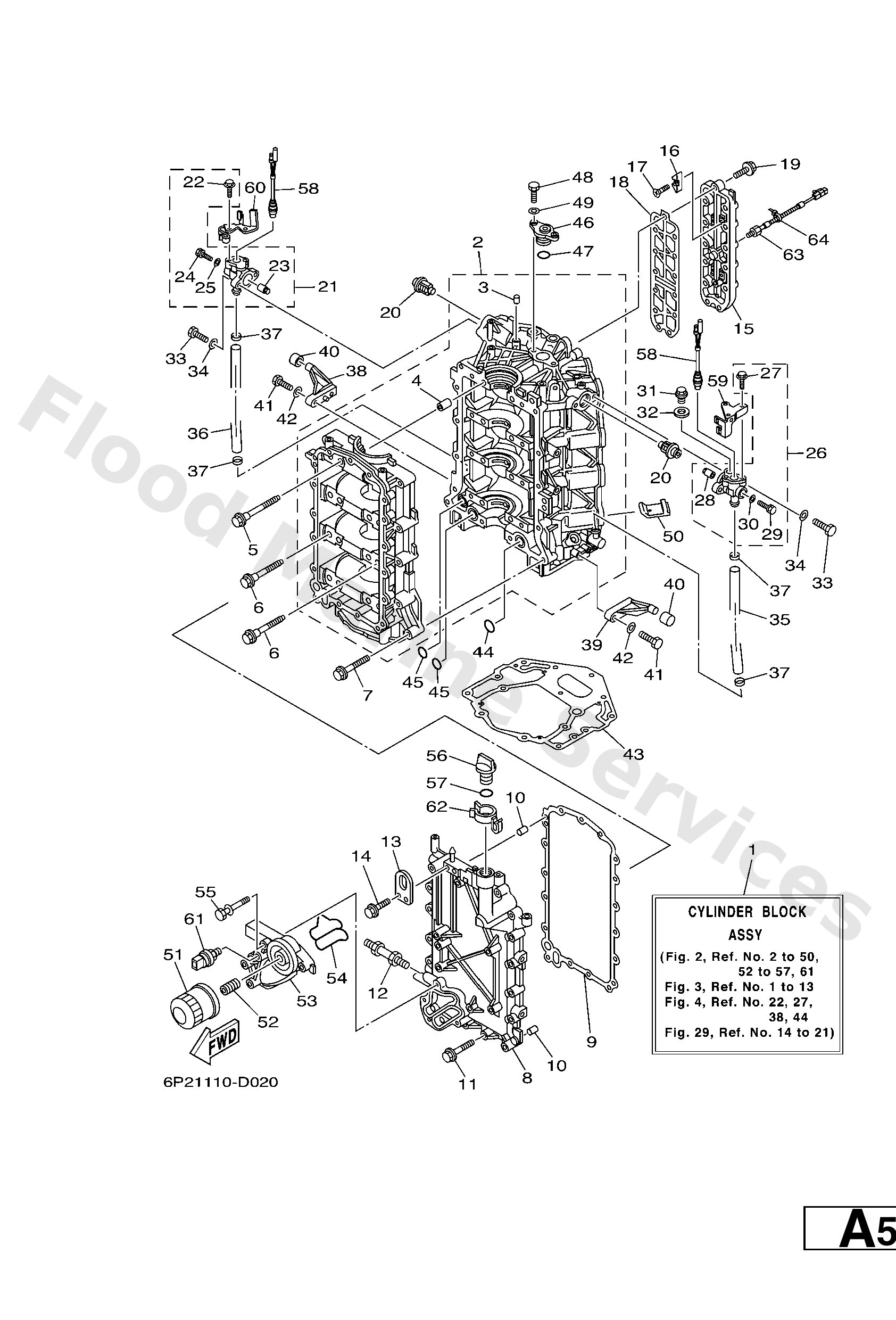

Cylinder block assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Pin, dowel (614)
Diagram Reference: 3
Pin, dowel
Diagram Reference: 4
Bolt
Diagram Reference: 5
Bolt 1
Diagram Reference: 6
Bolt, with washer
Diagram Reference: 7
Cover, crankcase 1
Diagram Reference: 8
Gasket, crankcase cover 1
Diagram Reference: 9
Bolt, with washer
Diagram Reference: 11
Bolt, stud
Diagram Reference: 12
Hanger, engine
Diagram Reference: 13
Bolt, with washer
Diagram Reference: 14
Cover, joint
Diagram Reference: 15
Anode
Diagram Reference: 16
Screw, flat head(ga5)
Diagram Reference: 17
Gasket, cover
Diagram Reference: 18
Bolt, with washer
Diagram Reference: 19
Thermostat
Diagram Reference: 20
Anode assembly
Diagram Reference: 21
Bolt
Diagram Reference: 22
Anode
Diagram Reference: 23
Screw, hexagon
Diagram Reference: 24
Gasket
Diagram Reference: 25
Anode assembly
Diagram Reference: 26
Plug, straight screw(62y)
Diagram Reference: 31
Gasket (663)
Diagram Reference: 32
Bolt
Diagram Reference: 33
Washer, plain (646)
Diagram Reference: 34
Hose 1
Diagram Reference: 35
Hose 2
Diagram Reference: 36
Clamp
Diagram Reference: 37
Stopper
Diagram Reference: 38
Stopper
Diagram Reference: 39
Damper, upper mount rubber
Diagram Reference: 40
Gasket, cylinder
Diagram Reference: 43
O-ring (22f)
Diagram Reference: 44
O-ring
Diagram Reference: 45
Plug, blind
Diagram Reference: 46
O-ring (7or)
Diagram Reference: 47
Bolt(7u8)
Diagram Reference: 48
Grommet, water shut
Diagram Reference: 50
Element assembly, oil cleaner
Diagram Reference: 51
Bolt, union
Diagram Reference: 52
Connector
Diagram Reference: 53
Gasket
Diagram Reference: 54
Bolt, with washer
Diagram Reference: 55
Plug, oil
Diagram Reference: 56
O-ring
Diagram Reference: 57
Thermo switch assembly
Diagram Reference: 58
Plate
Diagram Reference: 59
Plate 2
Diagram Reference: 60
Sender, oil pressure
Diagram Reference: 61
Clamp
Diagram Reference: 62
Sensor, knock
Diagram Reference: 63
