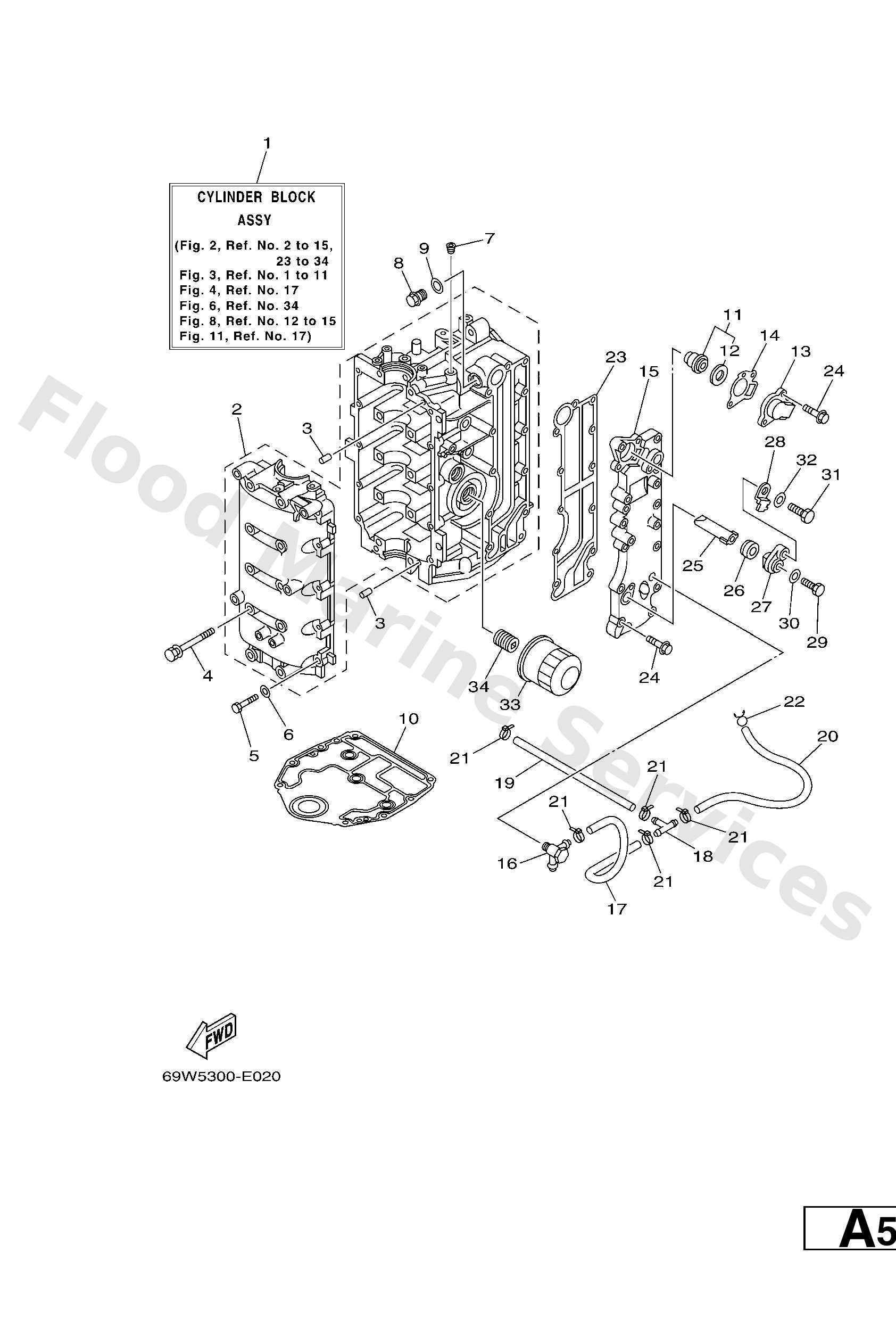

Parts List
Cylinder Block assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Pin, dowel (614)
Diagram Reference: 3
Bolt, with washer(62y)
Diagram Reference: 4
Bolt(3rv)
Diagram Reference: 5
Washer, plain (646)
Diagram Reference: 6
Plug, taper screw
Diagram Reference: 7
Plug, straight screw(62y)
Diagram Reference: 8
Gasket (663)
Diagram Reference: 9
Gasket, cylinder
Diagram Reference: 10
Thermostat
Diagram Reference: 11
Seal, thermostat
Diagram Reference: 12
Cover, thermostat
Diagram Reference: 13
Gasket, cover
Diagram Reference: 14
Outer Cover, Exhaust
Diagram Reference: 15
Nipple, hose
Diagram Reference: 16
Hose (l420)
Diagram Reference: 17
Pipe, joint
Diagram Reference: 18
Hose (L215)
Diagram Reference: 19
Hose (l1500)
Diagram Reference: 20
Clamp
Diagram Reference: 21
Clip
Diagram Reference: 22
Gasket, exhaust outer cover
Diagram Reference: 23
Bolt, with washer
Diagram Reference: 24
Anode
Diagram Reference: 25
Grommet, anode
Diagram Reference: 26
Cover, anode
Diagram Reference: 27
Plate
Diagram Reference: 28
Bolt, hexagon
Diagram Reference: 29
Washer, plain (646)
Diagram Reference: 30
Bolt(7u8)
Diagram Reference: 31
Washer, plain (646)
Diagram Reference: 32
Element assembly, oil cleaner
Diagram Reference: 33
Bolt, union
Diagram Reference: 34
