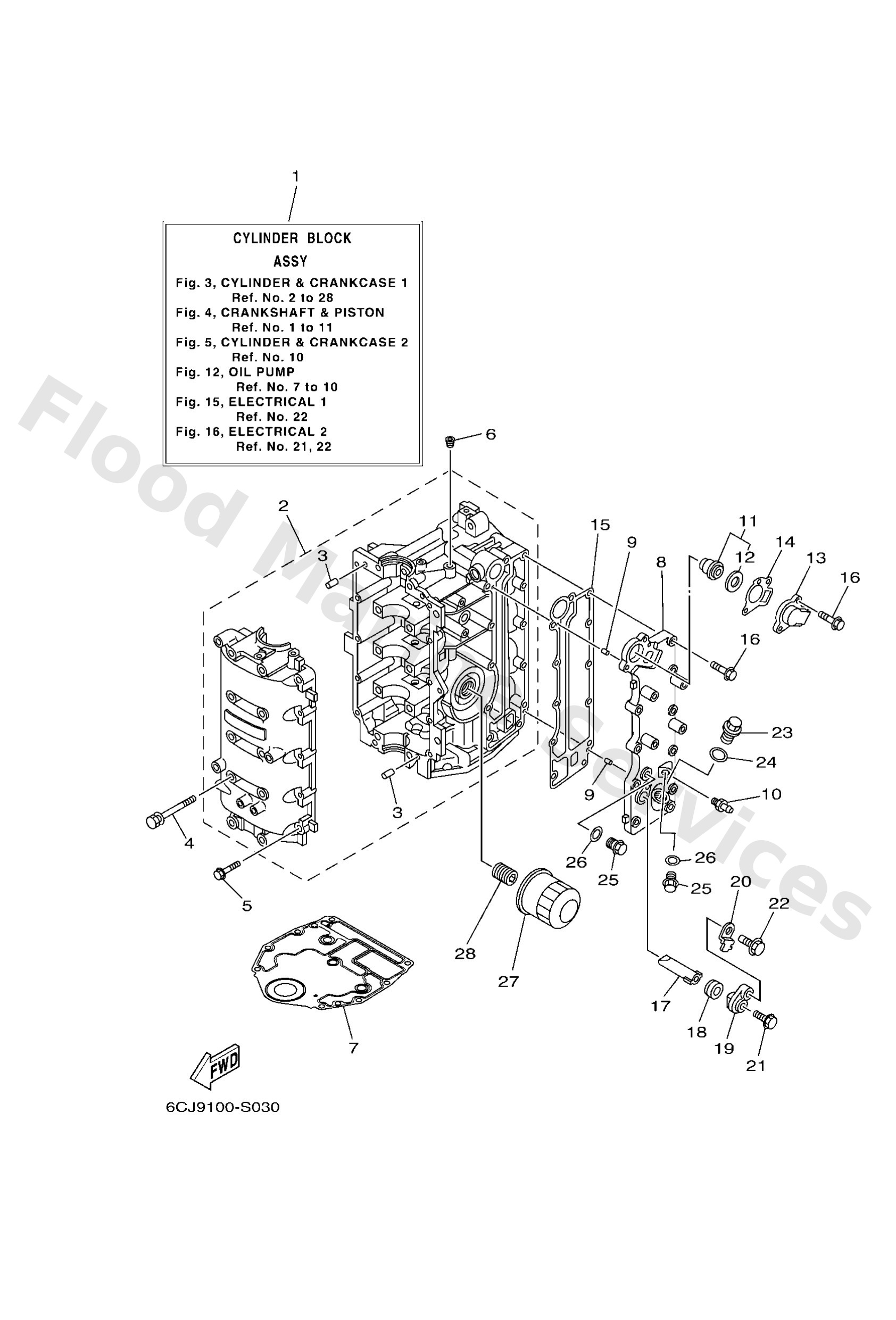

Parts List
Cylinder block assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Pin, dowel (614)
Diagram Reference: 3
Bolt, with washer
Diagram Reference: 4
Bolt(3rv)
Diagram Reference: 5
Plug, taper screw
Diagram Reference: 6
Gasket, cylinder
Diagram Reference: 7
Outer cover, exhaust
Diagram Reference: 8
Pin, dowel (688)
Diagram Reference: 9
Pipe 1
Diagram Reference: 10
Thermostat
Diagram Reference: 11
Seal, thermostat
Diagram Reference: 12
Cover, thermostat
Diagram Reference: 13
Gasket, cover
Diagram Reference: 14
Gasket, exhaust outer cover
Diagram Reference: 15
Bolt, with washer
Diagram Reference: 16
Anode
Diagram Reference: 17
Grommet, anode
Diagram Reference: 18
Cover, anode
Diagram Reference: 19
Plate
Diagram Reference: 20
Bolt, hexagon
Diagram Reference: 21
Bolt, hexagon w/w deep recess
Diagram Reference: 22
Plug, straight screw
Diagram Reference: 23
Washer, plate (22f)
Diagram Reference: 24
Plug, straight screw(62y)
Diagram Reference: 25
Gasket (663)
Diagram Reference: 26
Element assembly, oil cleaner
Diagram Reference: 27
Bolt, union
Diagram Reference: 28
