Parts List

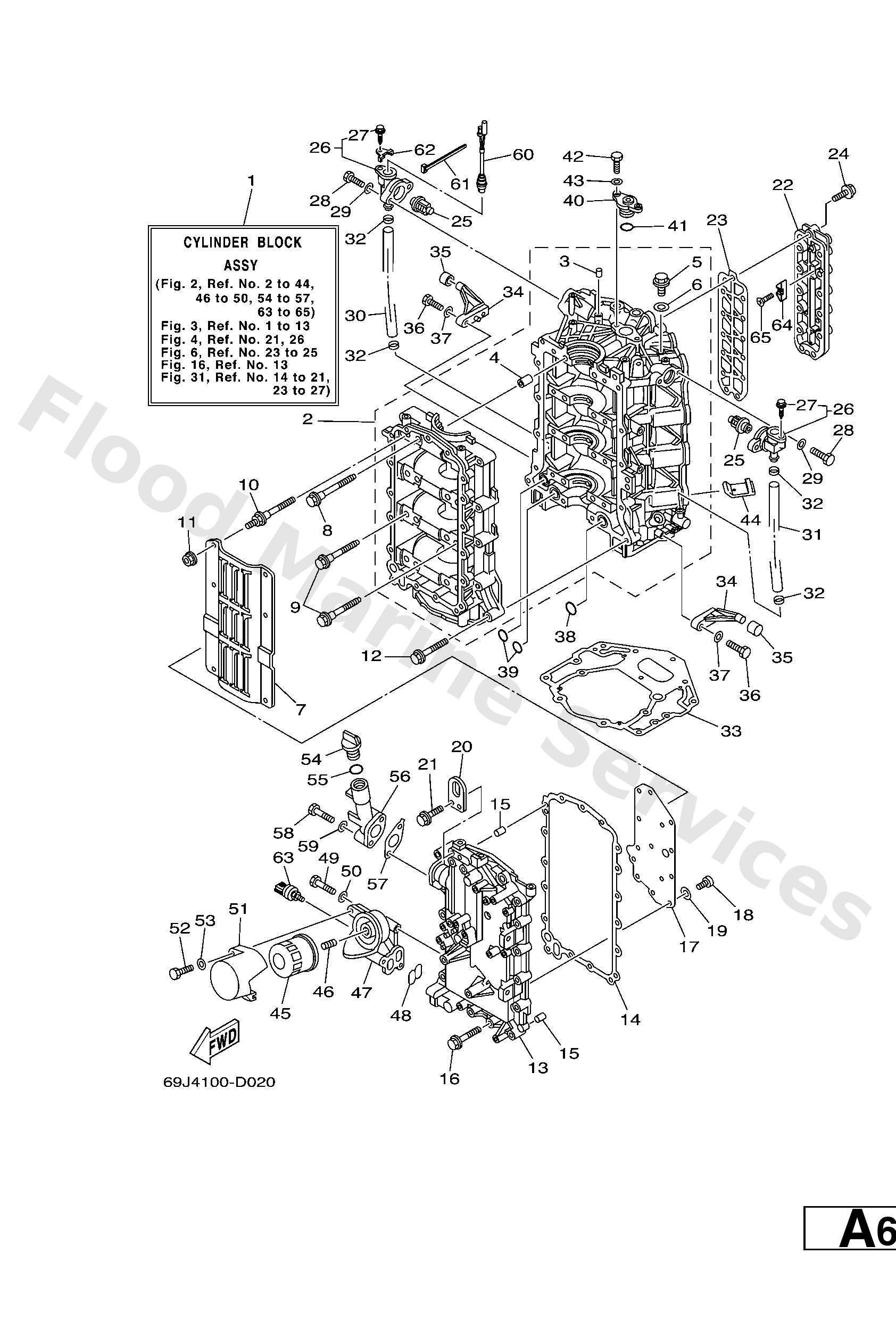

Cylinder block assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Pin, dowel (614)
Diagram Reference: 3
Pin, dowel
Diagram Reference: 4
Plug, straight screw(62y)
Diagram Reference: 5
Gasket (663)
Diagram Reference: 6
Plate, buffle 1
Diagram Reference: 7
Bolt
Diagram Reference: 8
Bolt 1
Diagram Reference: 9
Bolt 2
Diagram Reference: 10
Nut, flange(4mv)
Diagram Reference: 11
Bolt, with washer
Diagram Reference: 12
Cover, crankcase 1
Diagram Reference: 13
Gasket, crankcase cover 1
Diagram Reference: 14
Bolt, with washer
Diagram Reference: 16
Screw, pan head(jg1)
Diagram Reference: 18
Washer(jf2)
Diagram Reference: 19
Hanger, engine
Diagram Reference: 20
Bolt, with washer
Diagram Reference: 21
Cover, joint
Diagram Reference: 22
Gasket, cover
Diagram Reference: 23
Bolt, with washer
Diagram Reference: 24
Thermostat
Diagram Reference: 25
Anode assembly
Diagram Reference: 26
Bolt
Diagram Reference: 27
Bolt
Diagram Reference: 28
Washer, plain (646)
Diagram Reference: 29
Hose 1
Diagram Reference: 30
Hose 2
Diagram Reference: 31
Clamp
Diagram Reference: 32
Gasket, cylinder
Diagram Reference: 33
Stopper
Diagram Reference: 34
Damper, upper mount rubber
Diagram Reference: 35
O-ring (22f)
Diagram Reference: 38
O-ring
Diagram Reference: 39
Plug, blind
Diagram Reference: 40
O-ring (7or)
Diagram Reference: 41
Bolt(7u8)
Diagram Reference: 42
Grommet, water shut
Diagram Reference: 44
Element assembly, oil cleaner
Diagram Reference: 45
Bolt, union
Diagram Reference: 46
Connector
Diagram Reference: 47
Gasket
Diagram Reference: 48
Bolt, hexagon
Diagram Reference: 49
Cover, oil element
Diagram Reference: 51
Bolt (682)
Diagram Reference: 52
Plug, oil
Diagram Reference: 54
O-ring
Diagram Reference: 55
Joint
Diagram Reference: 56
Gasket, oil plug
Diagram Reference: 57
Thermo switch assembly
Diagram Reference: 60
Plate
Diagram Reference: 62
Sender, oil pressure
Diagram Reference: 63
Anode
Diagram Reference: 64
Screw, flat head(ga5)
Diagram Reference: 65
