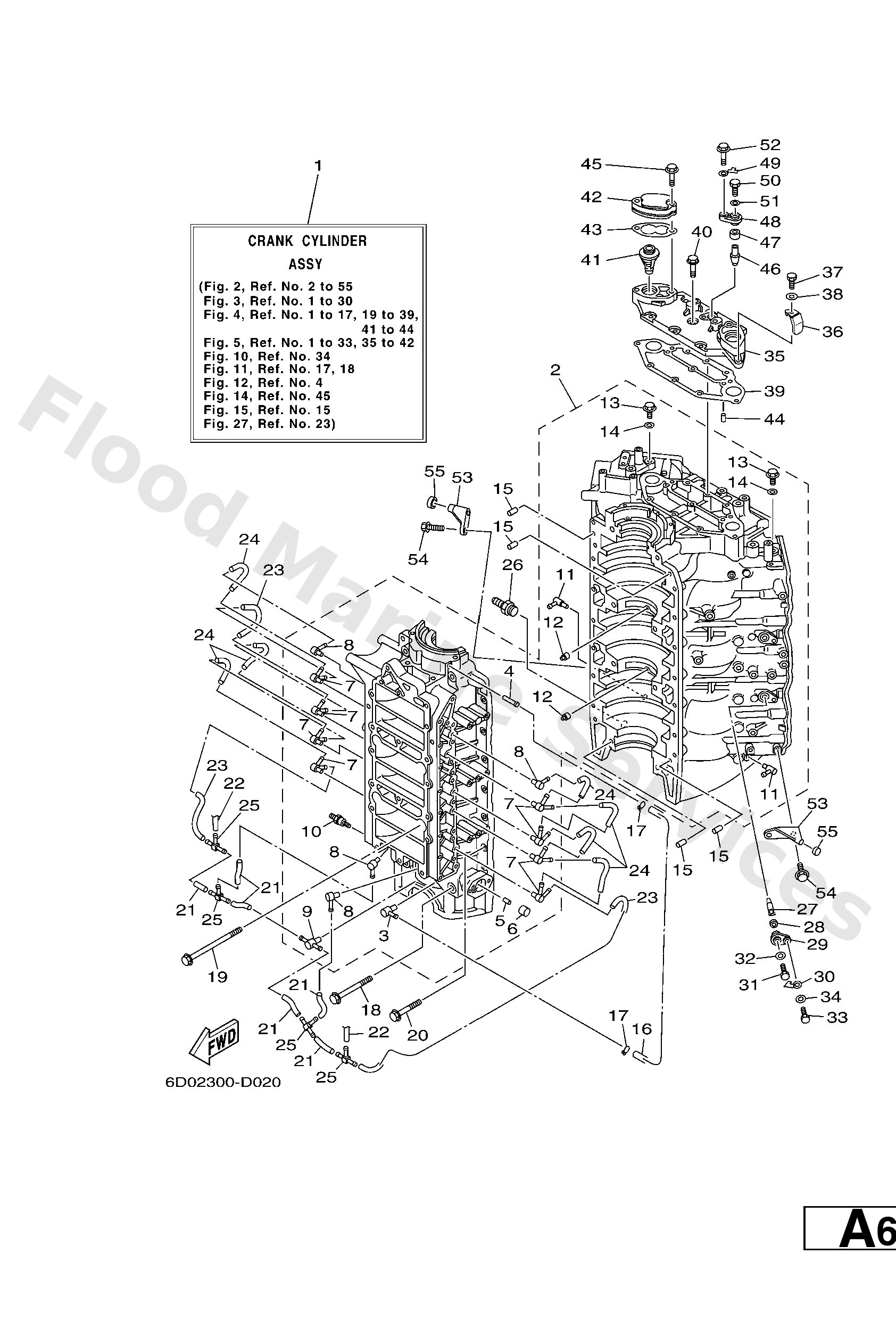

Parts List
Crank cylinder assembly
Diagram Reference: 1
Crankcase assembly
Diagram Reference: 2
Nipple, hose
Diagram Reference: 3
Pipe, joint
Diagram Reference: 4
Bush, bimetal formed(6r3)
Diagram Reference: 5
Bush, formed(61a)
Diagram Reference: 6
Check valve assembly
Diagram Reference: 7
Check valve assembly
Diagram Reference: 8
Check valve assembly
Diagram Reference: 9
Bolt, stud
Diagram Reference: 10
Lock, bearing
Diagram Reference: 12
Plug, straight screw(62y)
Diagram Reference: 13
Gasket (663)
Diagram Reference: 14
Pin, dowel (626)
Diagram Reference: 15
Clip (6e5)
Diagram Reference: 17
Bolt, with washer
Diagram Reference: 18
Bolt, With Washer
Diagram Reference: 19
Bolt, with washer
Diagram Reference: 20
Hose (l200)
Diagram Reference: 21
Hose (l60)
Diagram Reference: 22
Hose (l200)
Diagram Reference: 23
Hose (l200)
Diagram Reference: 24
Pipe, joint
Diagram Reference: 25
Joint, hose
Diagram Reference: 26
Anode
Diagram Reference: 27
Grommet, anode
Diagram Reference: 28
Cover, anode
Diagram Reference: 29
Plate
Diagram Reference: 30
Bolt, hexagon
Diagram Reference: 31
Washer, plain (646)
Diagram Reference: 32
Bolt(62y)
Diagram Reference: 33
Washer, plain (646)
Diagram Reference: 34
Cover
Diagram Reference: 35
Clamp 1
Diagram Reference: 36
Bolt, hexagon
Diagram Reference: 37
Washer, plain (646)
Diagram Reference: 38
Gasket 1
Diagram Reference: 39
Bolt, with washer
Diagram Reference: 40
Thermostat
Diagram Reference: 41
Cover, Thermostat
Diagram Reference: 42
Gasket, cover
Diagram Reference: 43
Pin
Diagram Reference: 44
Bolt, with washer
Diagram Reference: 45
Anode
Diagram Reference: 46
Stopper
Diagram Reference: 53
Damper, upper mount rubber
Diagram Reference: 55
