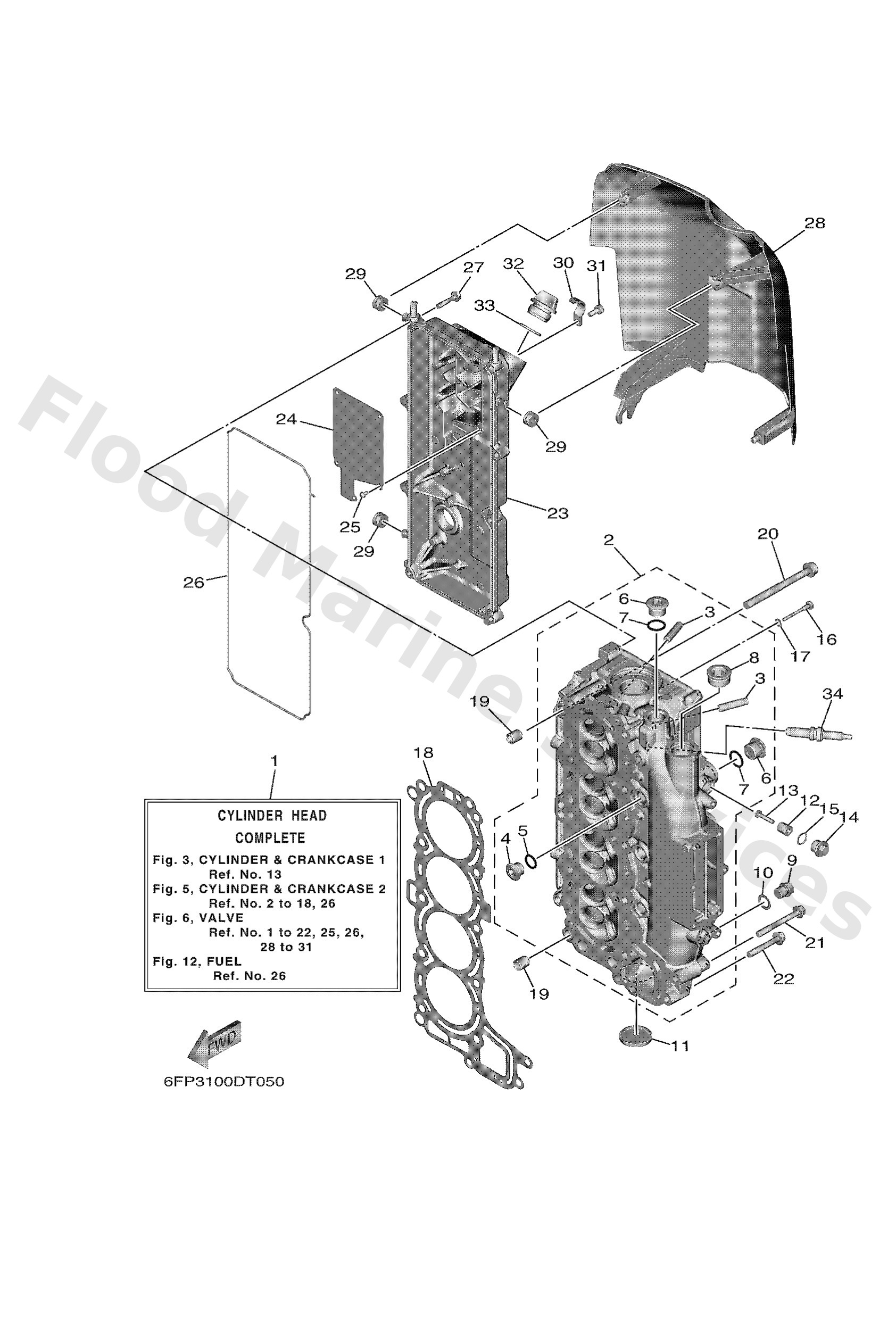

Parts List
Cylinder head complete
Diagram Reference: 1
Head, cylinder 1
Diagram Reference: 2
Guide, valve 1
Diagram Reference: 3
Plug, straight screw
Diagram Reference: 4
O-ring (26h)
Diagram Reference: 5
Plug, straight screw
Diagram Reference: 6
O-ring (1l9)
Diagram Reference: 7
Plug, straight screw
Diagram Reference: 8
Plug, straight screw(62y)
Diagram Reference: 9
Gasket (663)
Diagram Reference: 10
Plug
Diagram Reference: 11
Anode
Diagram Reference: 12
Screw, panhead (a93)
Diagram Reference: 13
Plug, blind
Diagram Reference: 14
O-ring (6g8)
Diagram Reference: 15
Bolt(62y)
Diagram Reference: 16
Gasket 256113960000
Diagram Reference: 17
Gasket, cylinder head 1
Diagram Reference: 18
Pin, dowel
Diagram Reference: 19
Screw, flat fillister
Diagram Reference: 20
Bolt, flange
Diagram Reference: 21
Bolt, flange
Diagram Reference: 22
Cover, cylinder head 1
Diagram Reference: 23
Cover, breather
Diagram Reference: 24
Screw, pan head with washer
Diagram Reference: 25
Gasket, head cover 1
Diagram Reference: 26
Bolt, flange deep recess
Diagram Reference: 27
Cover, cylinder head 2
Diagram Reference: 28
Grommet(3aa)
Diagram Reference: 29
Bracket, strainer 1
Diagram Reference: 30
Bolt, hexagon w/w deep recess
Diagram Reference: 31
Plug, oil
Diagram Reference: 32
O-ring
Diagram Reference: 33
Plug, spark (ngk lkr6e 9n)
Diagram Reference: 34
