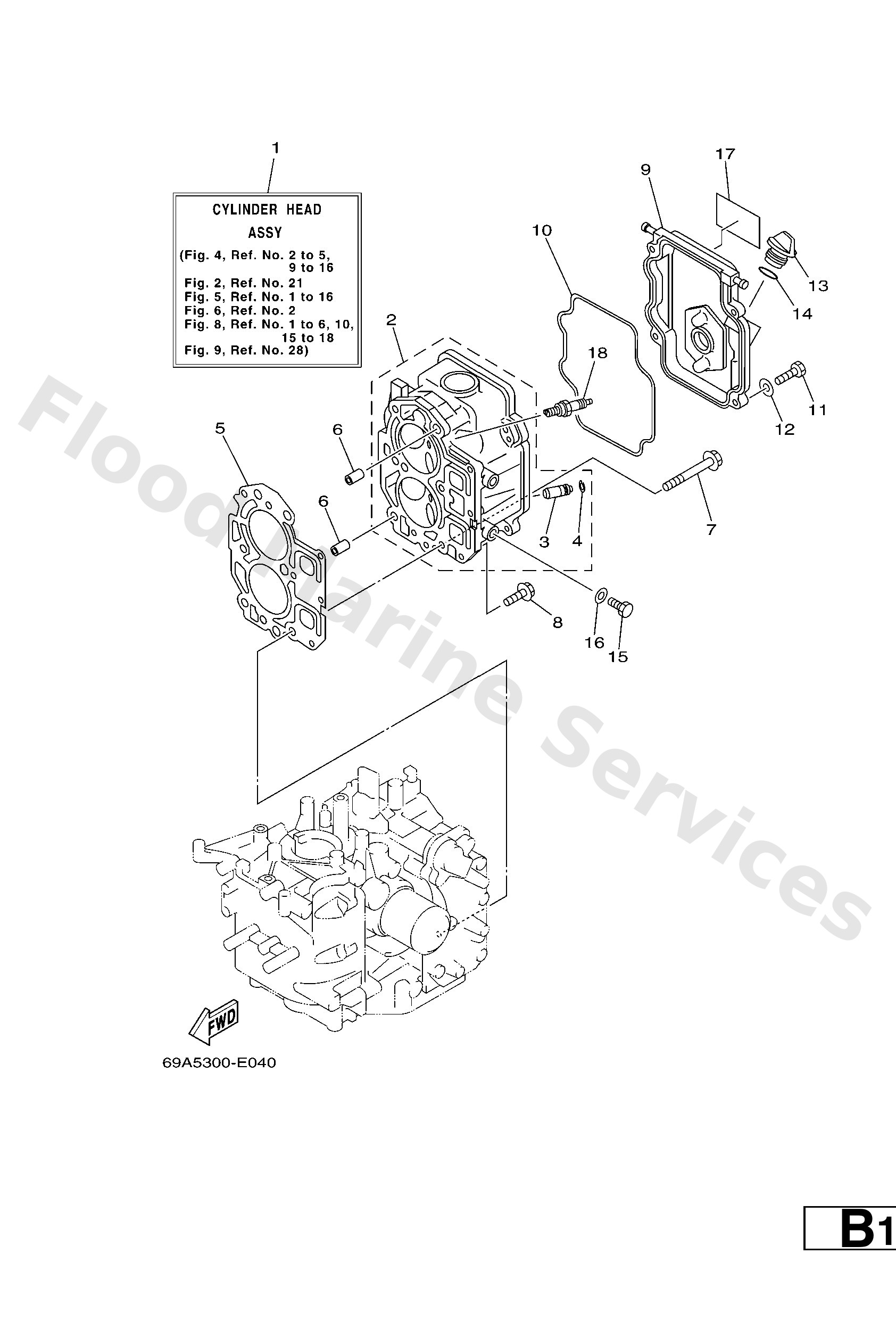

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

66MW009A021S (FOR STD)
Cylinder Head assembly
Diagram Reference: 1
Get Part
66MW009A121S (FOR SAV)
Cylinder Head assembly
Diagram Reference: 1
Get Part
66M11111111S (FOR SAV)
-
Diagram Reference: 2
Get Part
66M11111011S (FOR STD)
Head, cylinder 1
Diagram Reference: 2
Get Part
66M1113329
-
Diagram Reference: 3
Get Part
9345009M01
Circlip (6g8)
Diagram Reference: 4
Get Part
66M1118110
Gasket, cylinder head 1
Diagram Reference: 5
Get Part
9951010114
Pin, dowel(3vd)
Diagram Reference: 6
Get Part
9010508M78
Bolt, washer based
Diagram Reference: 7
Get Part
9011906MA3
Bolt, with washer
Diagram Reference: 8
Get Part
66M11191001S
-
Diagram Reference: 9
Get Part
66M1135600
Seal, cylinder 2
Diagram Reference: 10
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
6G81536300
Plug, oil
Diagram Reference: 13
Get Part
9321024M79
O-ring
Diagram Reference: 14
Get Part
9709508014 (FOR SAV)
Bolt, hexagon deep recess
Diagram Reference: 15
Get Part
9043008143 (FOR SAV)
Gasket (256-11198-00)
Diagram Reference: 16
Get Part
66M1213860
Mark, Caution
Diagram Reference: 17
Get Part
9470100375
Plug, spark (dpr6ea-9)(62y)
Diagram Reference: 18
Get Part
