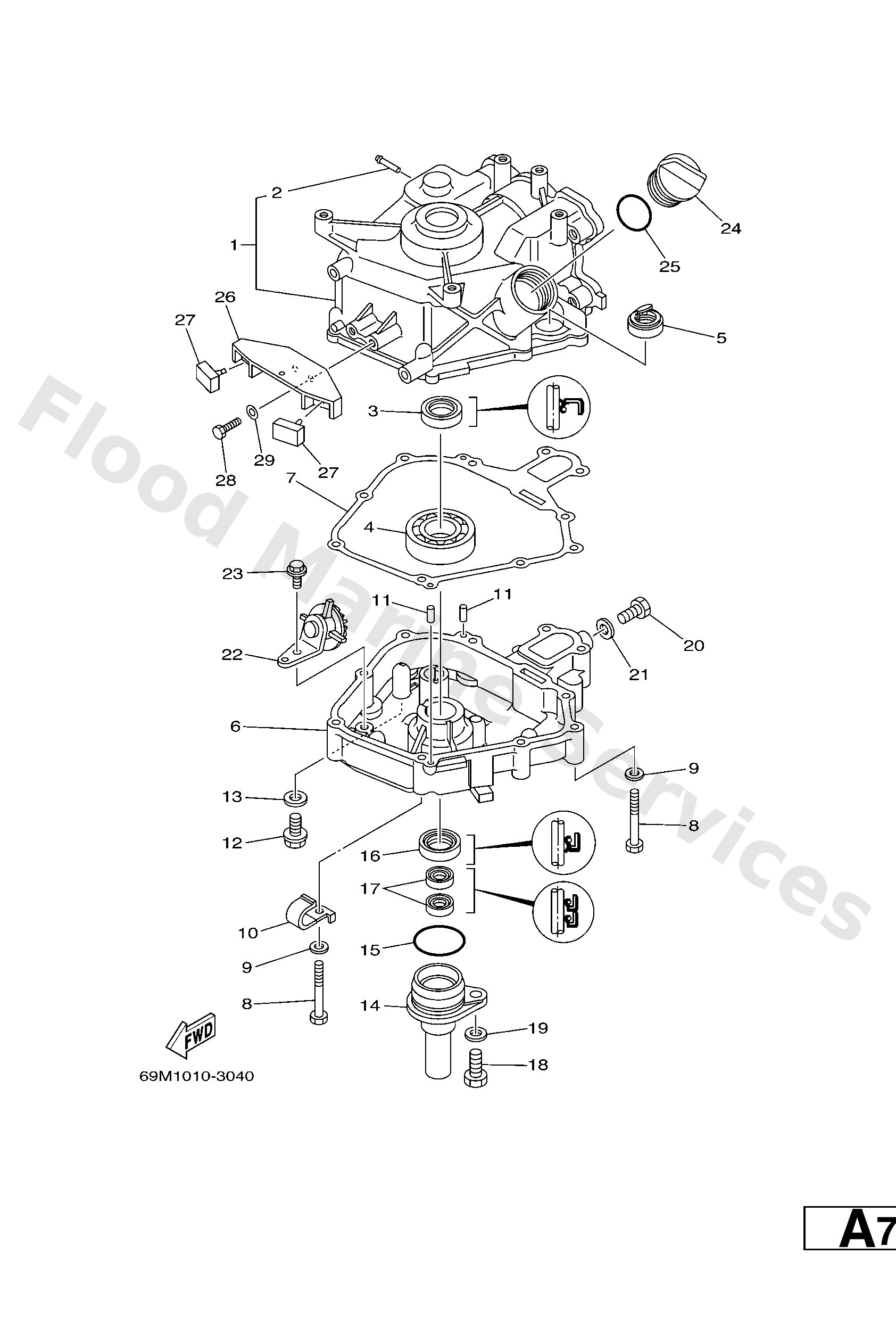

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

69ME1311001S
Cylinder 1
Diagram Reference: 1
Get Part
6H11448500
Pipe, joint
Diagram Reference: 2
Get Part
9310220108
Oil seal
Diagram Reference: 3
Get Part
93306272Y2
Bearing
Diagram Reference: 4
Get Part
69M1536100
Gauge, level
Diagram Reference: 5
Get Part
69ME5111001S
Crankcase (f2.5)
Diagram Reference: 6
Get Part
69M11351A0
Gasket, cylinder
Diagram Reference: 7
Get Part
9701306045
Bolt, hexagon
Diagram Reference: 8
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 9
Get Part
9046508M99
Clamp
Diagram Reference: 10
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 11
Get Part
9010508M76
Bolt, washer based
Diagram Reference: 12
Get Part
9020108818
Washer
Diagram Reference: 13
Get Part
69ME5396005B
Housing, oil seal
Diagram Reference: 14
Get Part
9321035537
O-ring
Diagram Reference: 15
Get Part
9310209004
Oil seal
Diagram Reference: 17
Get Part
9709508020
Bolt, hexagon
Diagram Reference: 18
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 19
Get Part
9709508014
Bolt, hexagon deep recess
Diagram Reference: 20
Get Part
9043008800
Gasket (256-11198-00)
Diagram Reference: 21
Get Part
69ME310200
Gear unit assembly
Diagram Reference: 22
Get Part
9581706012
Bolt, flange
Diagram Reference: 23
Get Part
69ME536300
Plug, oil
Diagram Reference: 24
Get Part
9321024M79
O-ring
Diagram Reference: 25
Get Part
69MG274300
Bracket,1
Diagram Reference: 26
Get Part
6G84453200
Stopper
Diagram Reference: 27
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 28
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 29
Get Part
