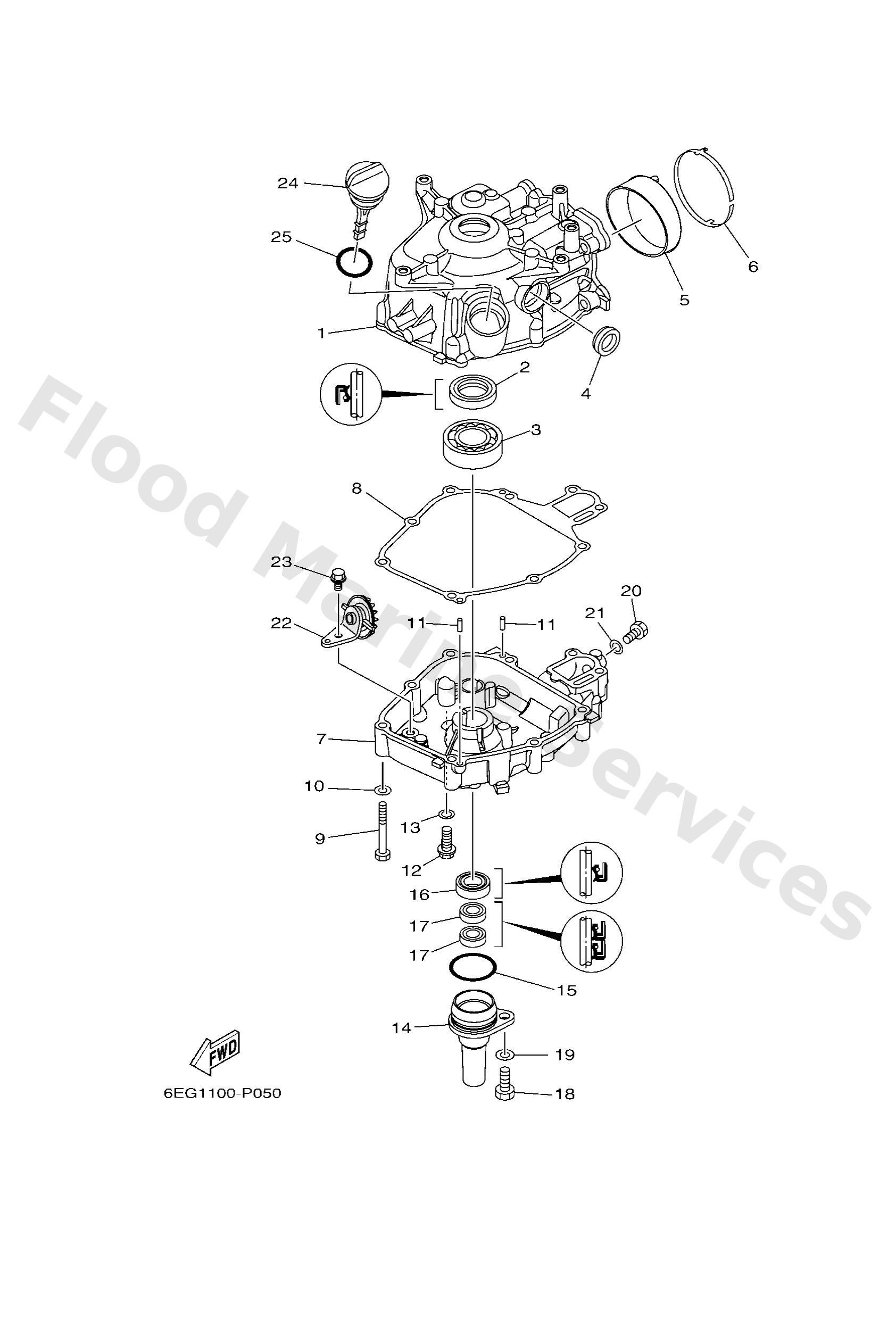

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

6EGE1311001S
Cylinder 1
Diagram Reference: 1
Get Part
9310220814
Oil seal
Diagram Reference: 2
Get Part
93306272Y2
Bearing
Diagram Reference: 3
Get Part
3Y61536100
Gauge, level
Diagram Reference: 4
Get Part
6EG1466400
Grommet, water shut
Diagram Reference: 5
Get Part
6EG1246L00
Ring, stop 1
Diagram Reference: 6
Get Part
6EGE5111001S
Crankcase 1
Diagram Reference: 7
Get Part
6EG1135100
Gasket, cylinder
Diagram Reference: 8
Get Part
9701306045
Bolt, hexagon
Diagram Reference: 9
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 10
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 11
Get Part
9010508M76
Bolt, washer based
Diagram Reference: 12
Get Part
9020108818
Washer
Diagram Reference: 13
Get Part
6EGE539600CA
Housing, oil seal
Diagram Reference: 14
Get Part
9321035803
O-ring
Diagram Reference: 15
Get Part
9310209800
Oil seal
Diagram Reference: 17
Get Part
9709508020
Bolt, hexagon
Diagram Reference: 18
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 19
Get Part
9709508014
Bolt, hexagon deep recess
Diagram Reference: 20
Get Part
9043008143
Gasket (256-11198-00)
Diagram Reference: 21
Get Part
6EGE310200
Gear unit assembly
Diagram Reference: 22
Get Part
9581706012
Bolt, flange
Diagram Reference: 23
Get Part
6EGE536200
Plug, oil level
Diagram Reference: 24
Get Part
9321024800
O-ring
Diagram Reference: 25
Get Part
