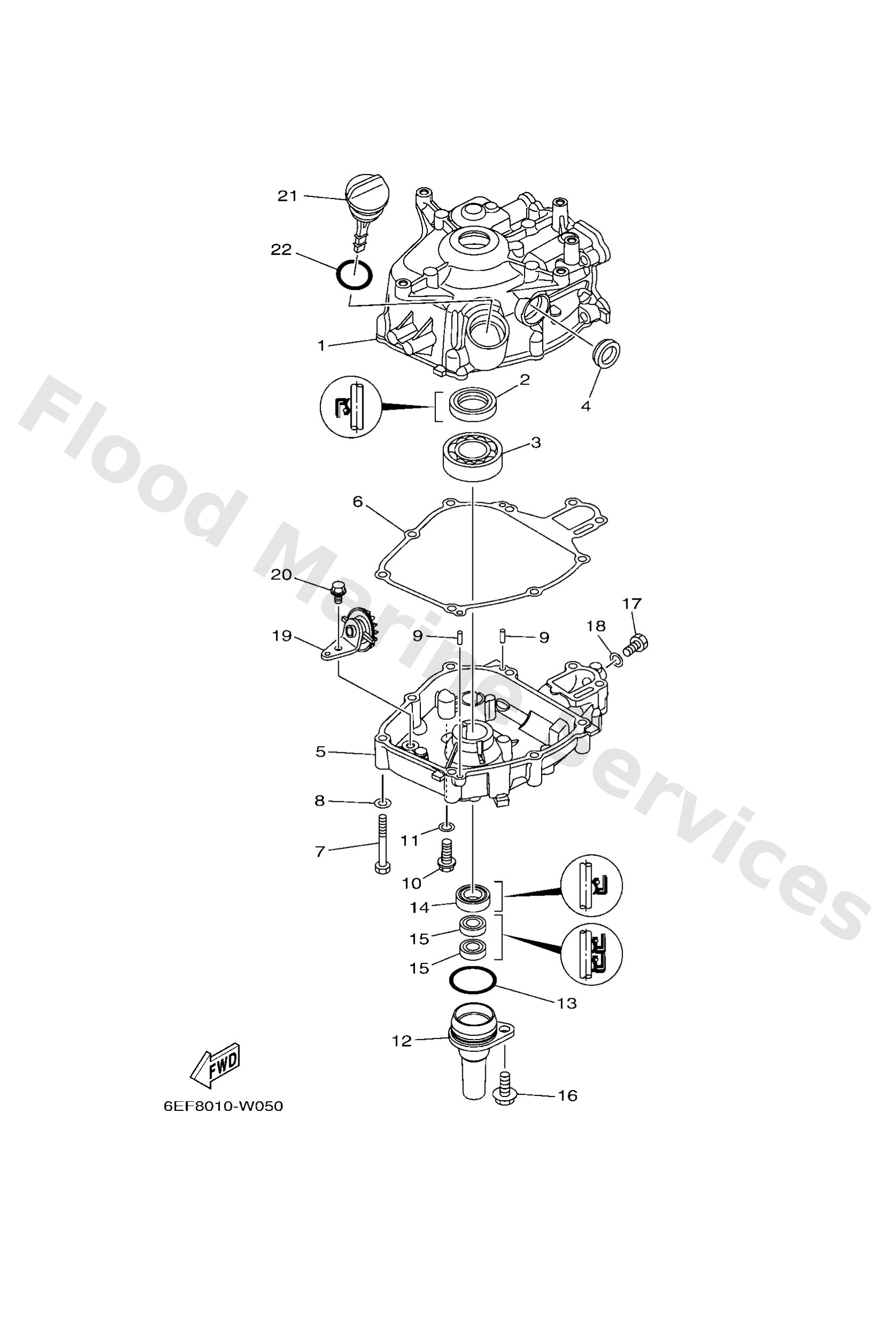

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

6EG11311001S
-
Diagram Reference: 1
Get Part
9310220108
Oil seal
Diagram Reference: 2
Get Part
9330627215
Bearing
Diagram Reference: 3
Get Part
3Y61536100
Gauge, level
Diagram Reference: 4
Get Part
6EG15111001S
Crankcase 1
Diagram Reference: 5
Get Part
6EG1135100
Gasket, cylinder
Diagram Reference: 6
Get Part
9701306045
Bolt, hexagon
Diagram Reference: 7
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 8
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 9
Get Part
9010508M76
Bolt, washer based
Diagram Reference: 10
Get Part
9020108124
Washer, plate
Diagram Reference: 11
Get Part
6EG1539600CA
Housing, Oil Seal
Diagram Reference: 12
Get Part
9321035537
O-ring
Diagram Reference: 13
Get Part
9310209004
Oil seal
Diagram Reference: 15
Get Part
97E9508520
Bolt, hexagon w/w deep recess
Diagram Reference: 16
Get Part
97D9508014
Bolt, hexagon deep recess
Diagram Reference: 17
Get Part
9043008143
Gasket (256-11198-00)
Diagram Reference: 18
Get Part
6EG1310200
-
Diagram Reference: 19
Get Part
9581706012
Bolt, flange
Diagram Reference: 20
Get Part
6EG1536200
Plug, oil level
Diagram Reference: 21
Get Part
9321024M79
O-ring
Diagram Reference: 22
Get Part
