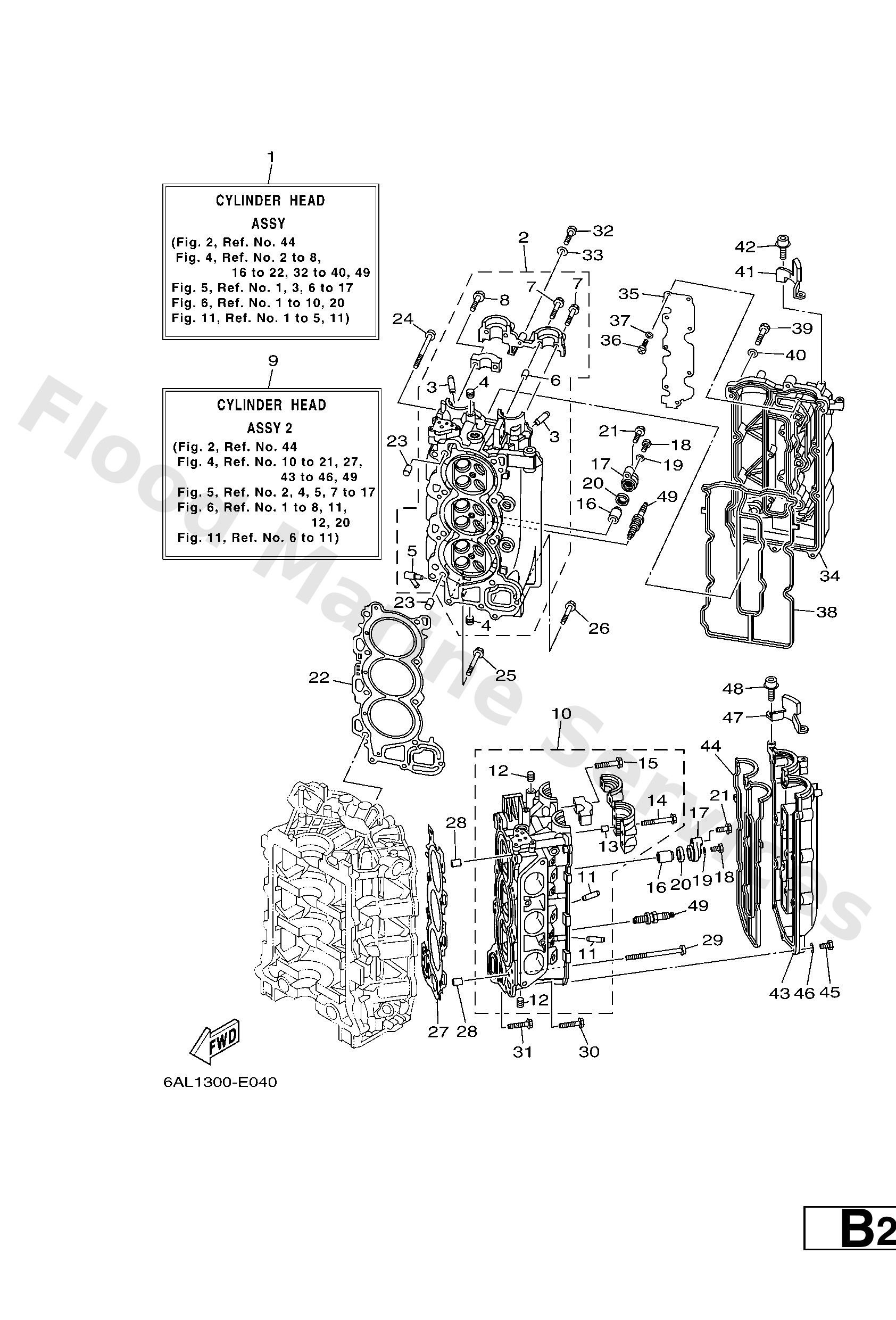

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

6P2W009A001S (Go to P/N ) PE0-OM-100021)
Cylinder head complete
Diagram Reference: 1
Get Part
6P2111100094
Cylinder head assembly
Diagram Reference: 2
Get Part
69J1113310
Guide, intake valve
Diagram Reference: 3
Get Part
9034451019
Plug, taper screw
Diagram Reference: 4
Get Part
6761137200
Nipple, hose
Diagram Reference: 5
Get Part
9180908006
Pin, dowel
Diagram Reference: 6
Get Part
9011907001
Bolt, with washer
Diagram Reference: 7
Get Part
9011907234
Bolt, with washer
Diagram Reference: 8
Get Part
6P2W009C001S (Go to P/N ) PE0-OM-100021)
Cylinder head 2 complete
Diagram Reference: 9
Get Part
6P2111200094
Cylinder head assembly 2
Diagram Reference: 10
Get Part
9011907235
Bolt, with washer
Diagram Reference: 14
Get Part
68V1132501 (Go to P/N ) PE0-OM-100021)
Anode
Diagram Reference: 16
Get Part
69J113270094 (Go to P/N ) PE0-OM-100021)
Anode cover assembly
Diagram Reference: 17
Get Part
9707506020 (Go to P/N ) PE0-OM-100021)
Bolt(7u8)
Diagram Reference: 18
Get Part
9299506600 (Go to P/N ) PE0-OM-100021)
Washer, plain (646)
Diagram Reference: 19
Get Part
67F1132800 (Go to P/N ) PE0-OM-100021)
Grommet, anode
Diagram Reference: 20
Get Part
9757508540
Bolt, hexagon w/w deep recess
Diagram Reference: 21
Get Part
6P21118100
Gasket, cylinder head 1
Diagram Reference: 22
Get Part
9038710M08
Pin, dowel
Diagram Reference: 23
Get Part
9015510002
Screw, flat fillister
Diagram Reference: 24
Get Part
9011908M91
Bolt, with washer
Diagram Reference: 25
Get Part
9011908021
Bolt, with washer
Diagram Reference: 26
Get Part
6P21118200
Gasket, cylinder head 2
Diagram Reference: 27
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 32
Get Part
6P211191001S
Cover, cylinder head 1
Diagram Reference: 34
Get Part
6P21113500
Plate, breather 3
Diagram Reference: 35
Get Part
9850704008
Screw, pan head(jg1)
Diagram Reference: 36
Get Part
9290704600
Washer(jf2)
Diagram Reference: 37
Get Part
6P21119300
Gasket, head cover 1
Diagram Reference: 38
Get Part
6P21514200
Guide 1
Diagram Reference: 41
Get Part
9011006150
Bolt, hexagon socket head
Diagram Reference: 42
Get Part
6P211192001S
Cover, cylinder head 2
Diagram Reference: 43
Get Part
6P21119400
Gasket, head cover 2
Diagram Reference: 44
Get Part
6P21514300
Guide
Diagram Reference: 47
Get Part
9470200400
Plug, spark (lfr6a-11)
Diagram Reference: 49
Get Part
51
Pin,Upper Shock Mount
Diagram Reference: 4
Get Part
item_description
Diagram Reference: 50
Get Part
