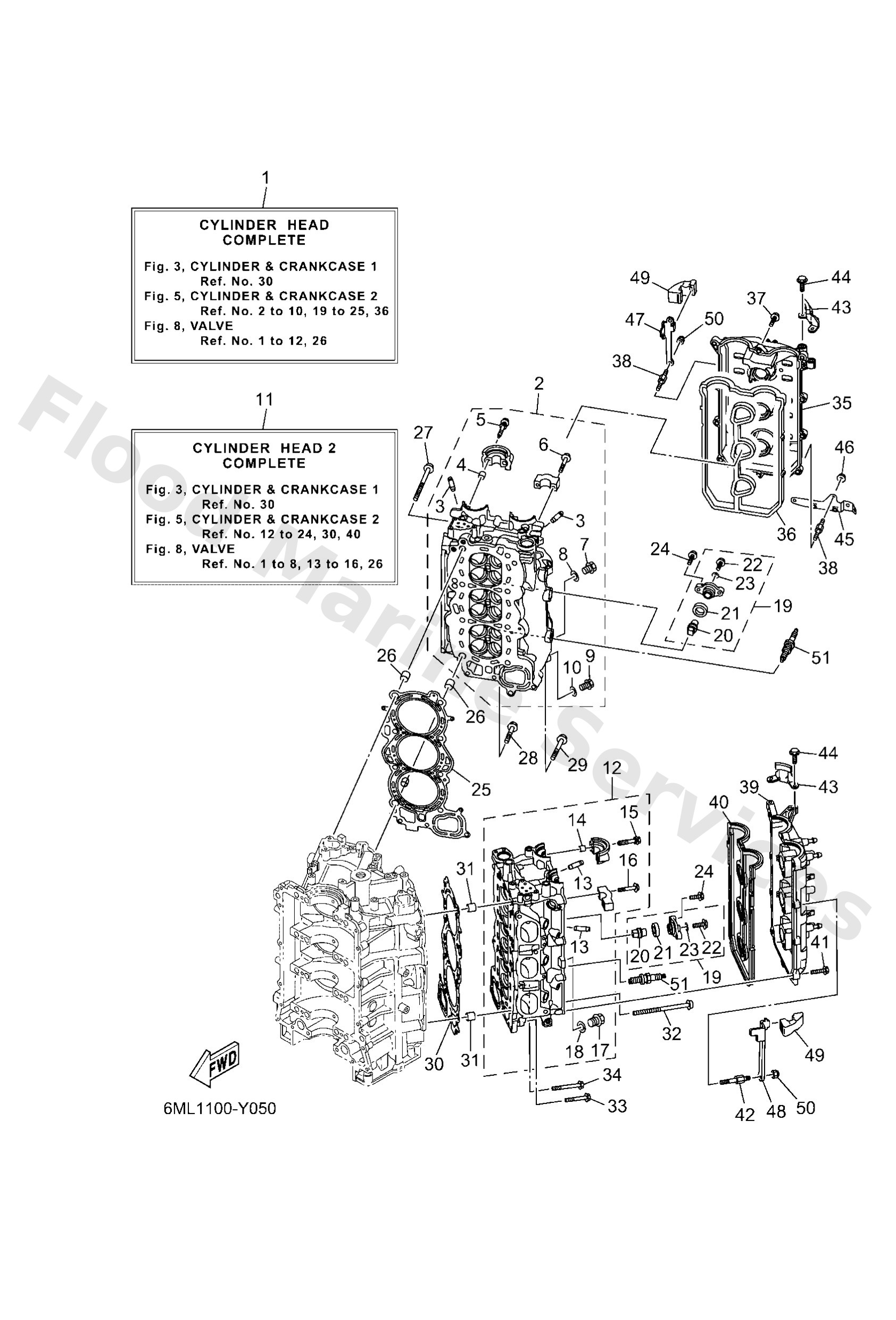

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

6MLW009A009S
Cylinder head complete
Diagram Reference: 1
Get Part
6ML11110009S
Cylinder head assembly
Diagram Reference: 2
Get Part
6S51113310
Guide, valve 1
Diagram Reference: 3
Get Part
9180908006
Pin, dowel
Diagram Reference: 4
Get Part
9011907001
Bolt, with washer
Diagram Reference: 5
Get Part
9011907234
Bolt, with washer
Diagram Reference: 6
Get Part
9034018M09
Plug, straight screw
Diagram Reference: 7
Get Part
90201186F1
Washer, plate (22f)
Diagram Reference: 8
Get Part
9034014M06
Plug, straight screw(62y)
Diagram Reference: 9
Get Part
9043014115
Gasket (663)
Diagram Reference: 10
Get Part
6MLW009C009S
Cylinder head 2 complete
Diagram Reference: 11
Get Part
6ML11120009S
Cylinder head assembly 2
Diagram Reference: 12
Get Part
6ML1130100
Anode cover assembly
Diagram Reference: 19
Get Part
6ML1132500
Anode
Diagram Reference: 20
Get Part
67F1132801
Grommet, anode
Diagram Reference: 21
Get Part
9010506M07
Bolt (689)
Diagram Reference: 22
Get Part
9043006M03
Gasket (6f5)
Diagram Reference: 23
Get Part
95D9508025
Bolt, flange deep recess
Diagram Reference: 24
Get Part
6ML1118100
Gasket, cylinder head 1
Diagram Reference: 25
Get Part
9038711005
Collar
Diagram Reference: 26
Get Part
9014911001
Screw
Diagram Reference: 27
Get Part
9010508175
Bolt, flange
Diagram Reference: 28
Get Part
9010508220
Bolt, flange
Diagram Reference: 29
Get Part
6ML1118200
Gasket, cylinder head 2
Diagram Reference: 30
Get Part
6ML1119100
Cover, cylinder head 1
Diagram Reference: 35
Get Part
6CB1119300
Gasket, head cover 1
Diagram Reference: 36
Get Part
95D9506030
Bolt, flange deep recess
Diagram Reference: 37
Get Part
9010906277
Bolt
Diagram Reference: 38
Get Part
6CB1119202
Cover, cylinder head 2
Diagram Reference: 39
Get Part
6CB1119400
Gasket, head cover 2
Diagram Reference: 40
Get Part
6ML1514200
Guide 1
Diagram Reference: 43
Get Part
95D9506014
Bolt, flange deep recess
Diagram Reference: 44
Get Part
6KA2134V00
Bracket
Diagram Reference: 45
Get Part
9017906M28
Nut(63v)
Diagram Reference: 46
Get Part
6KW1199800
Bracket 1
Diagram Reference: 47
Get Part
6KW1199900
Bracket 2
Diagram Reference: 48
Get Part
6KW4266200
Damper
Diagram Reference: 49
Get Part
9018506M07
Nut, self-locking(6e5)
Diagram Reference: 50
Get Part
9470200442
Plug, spark (ngk ilmar7e9)
Diagram Reference: 51
Get Part
