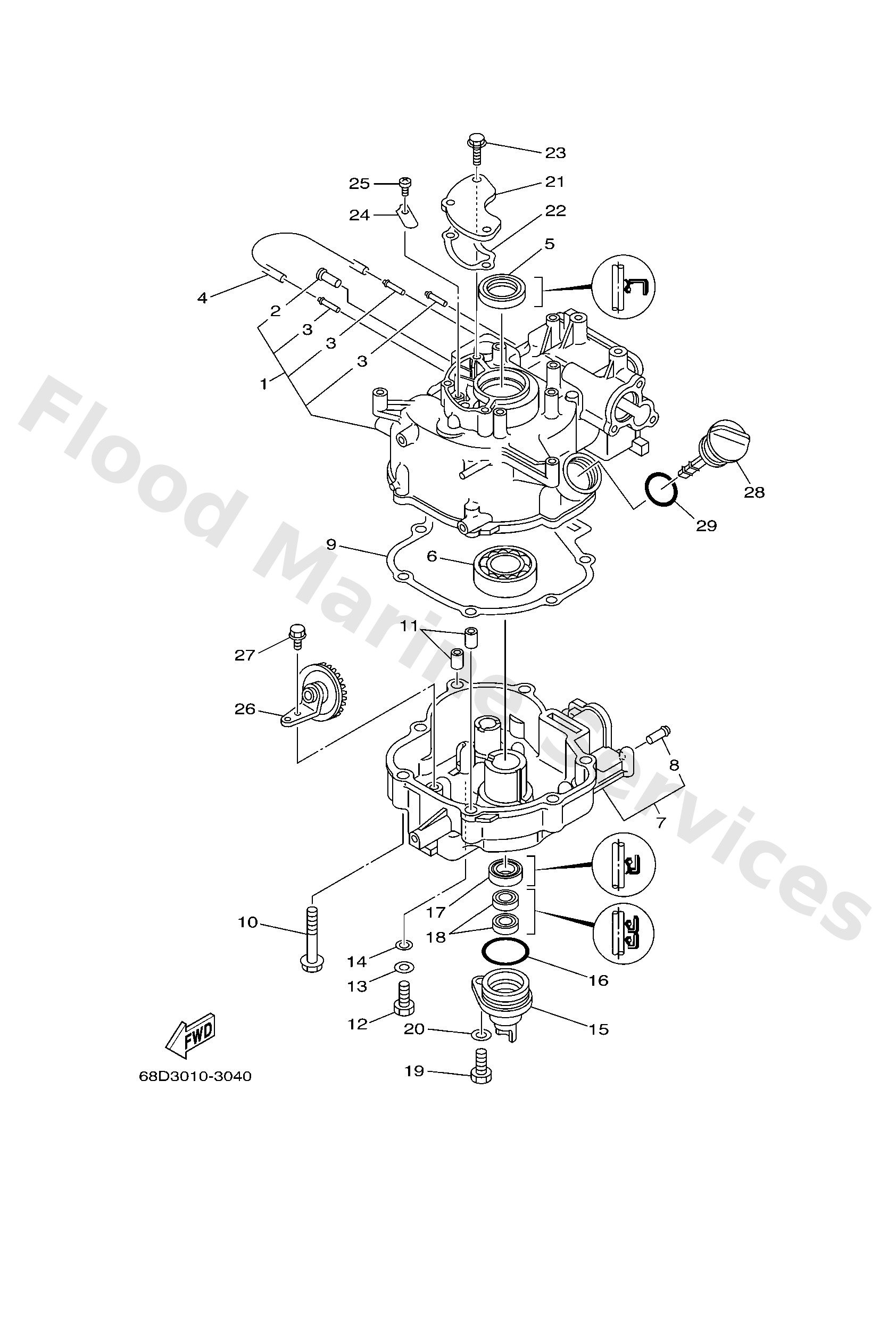

Diagram: CYLINDER & CRANKCASE 2
Parts List
Cylinder 1
Diagram Reference: 1
Pipe, joint 2
Diagram Reference: 2
Pipe, joint
Diagram Reference: 3
Hose (l200)
Diagram Reference: 4
Oil seal (25x40x5-256)
Diagram Reference: 5
Bearing (6k8)
Diagram Reference: 6
Crankcase 1
Diagram Reference: 7
Gasket, cylinder
Diagram Reference: 9
Bolt, with washer
Diagram Reference: 10
Pin, dowel(3vd)
Diagram Reference: 11
Bolt, hexagon
Diagram Reference: 12
Washer, plain (663)
Diagram Reference: 13
Washer
Diagram Reference: 14
Housing, oil seal
Diagram Reference: 15
O-ring
Diagram Reference: 16
Oil seal
Diagram Reference: 17
Oil seal
Diagram Reference: 18
Cover, Breather
Diagram Reference: 21
Gasket, Breather Cover
Diagram Reference: 22
Bolt(gj3)
Diagram Reference: 23
Breather 1
Diagram Reference: 24
Screw, pan head (7h3)
Diagram Reference: 25
Gear unit assembly
Diagram Reference: 26
Bolt, flange
Diagram Reference: 27
Plug, oil level
Diagram Reference: 28
O-ring
Diagram Reference: 29
