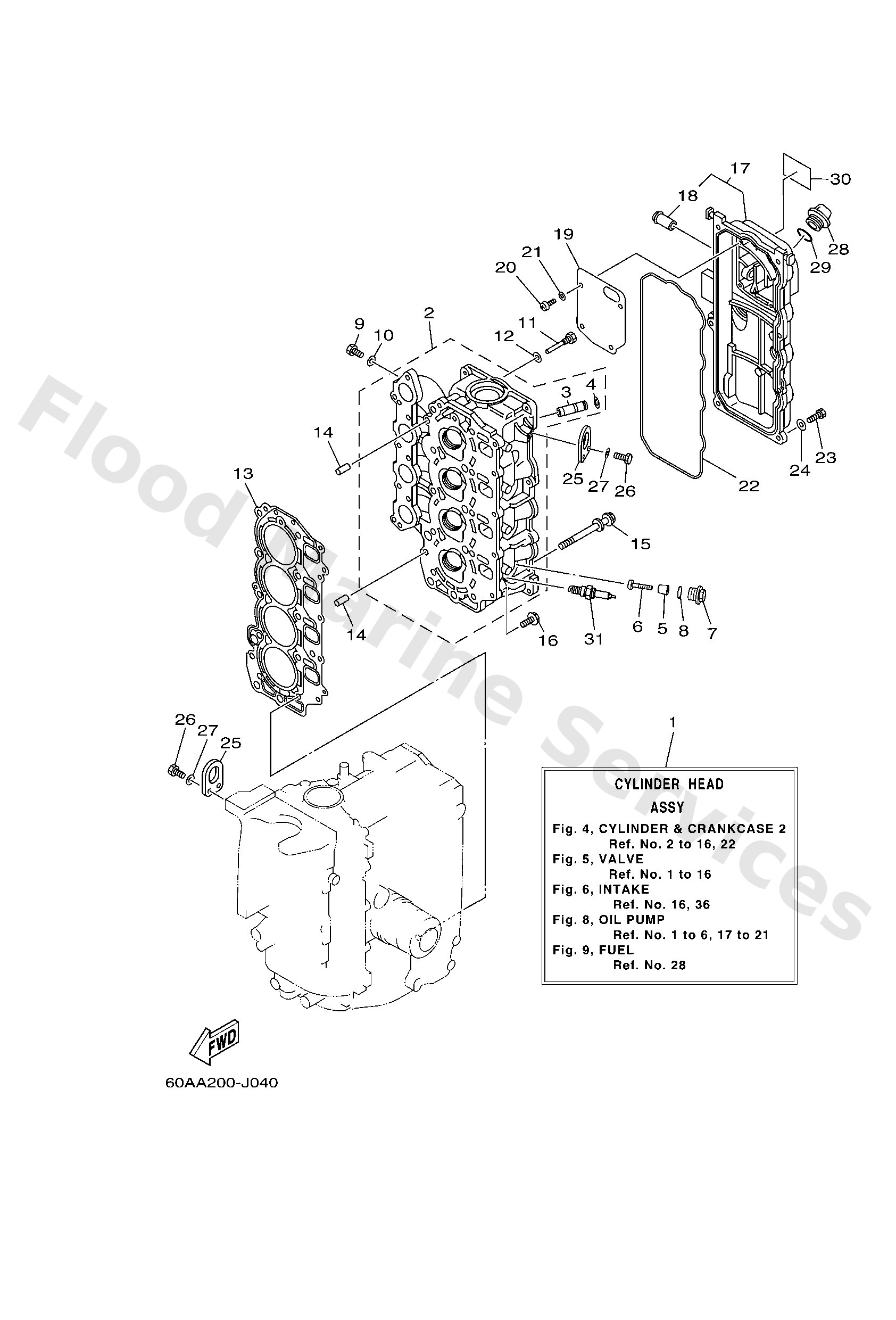

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

64JW009A039S (Go to P/N ) PE0-OM-100006)
Cylinder head assembly
Diagram Reference: 1
Get Part
64J11111019S (Go to P/N ) PE0-OM-100006)
Head, cylinder 1
Diagram Reference: 2
Get Part
62Y1113330
Guide, valve 1
Diagram Reference: 3
Get Part
9345009M01
Circlip (6g8)
Diagram Reference: 4
Get Part
6G81132500 (Go to P/N ) PE0-OM-100006)
Anode
Diagram Reference: 5
Get Part
9788005025 (Go to P/N ) PE0-OM-100006)
Screw, panhead (a93)
Diagram Reference: 6
Get Part
6G81119701 (Go to P/N ) PE0-OM-100006)
Plug, blind
Diagram Reference: 7
Get Part
9321013M63 (Go to P/N ) PE0-OM-100006)
O-ring (6g8)
Diagram Reference: 8
Get Part
9709506010
Bolt
Diagram Reference: 9
Get Part
9043006014
Gasket 256113960000
Diagram Reference: 10
Get Part
9010906M65
Bolt(62y)
Diagram Reference: 11
Get Part
62Y1118100
Gasket, cylinder head 1
Diagram Reference: 13
Get Part
9953008012
Pin, dowel(6g8)
Diagram Reference: 14
Get Part
9011909M00
Bolt, with washer(62y)
Diagram Reference: 15
Get Part
9011906MA3
Bolt, with washer
Diagram Reference: 16
Get Part
62Y11191019S
Cover, cylinder head 1
Diagram Reference: 17
Get Part
62Y1448500
Pipe, joint
Diagram Reference: 18
Get Part
62Y1116800
Cover, breather
Diagram Reference: 19
Get Part
9850704010
Screw, pan head(6g8)
Diagram Reference: 20
Get Part
9290704600
Washer(jf2)
Diagram Reference: 21
Get Part
62Y1135600
Seal, cylinder 2
Diagram Reference: 22
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 23
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 24
Get Part
62Y1111900
Hanger, engine
Diagram Reference: 25
Get Part
6G81536300
Plug, oil
Diagram Reference: 28
Get Part
9321024M79
O-ring
Diagram Reference: 29
Get Part
62Y1213860
Mark, Caution
Diagram Reference: 30
Get Part
9470100375 ((NGK DPR6EA-9))
Plug, spark (dpr6ea-9)(62y)
Diagram Reference: ?
Get Part
64JW009A029S
Cylinder head assembly
Diagram Reference: 1
Get Part
64J11111009S
64J-11111-01-9S
Diagram Reference: 2
Get Part
62Y1132500
Anode
Diagram Reference: 5
Get Part
66M1132800
Grommet, anode
Diagram Reference: 6
Get Part
item_description
Diagram Reference: 6
Get Part
66M113270094
Cover, anode
Diagram Reference: 7
Get Part
66M1253500
Plate
Diagram Reference: 8
Get Part
9709505012
Bolt, hexagon
Diagram Reference: 9
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 10
Get Part
