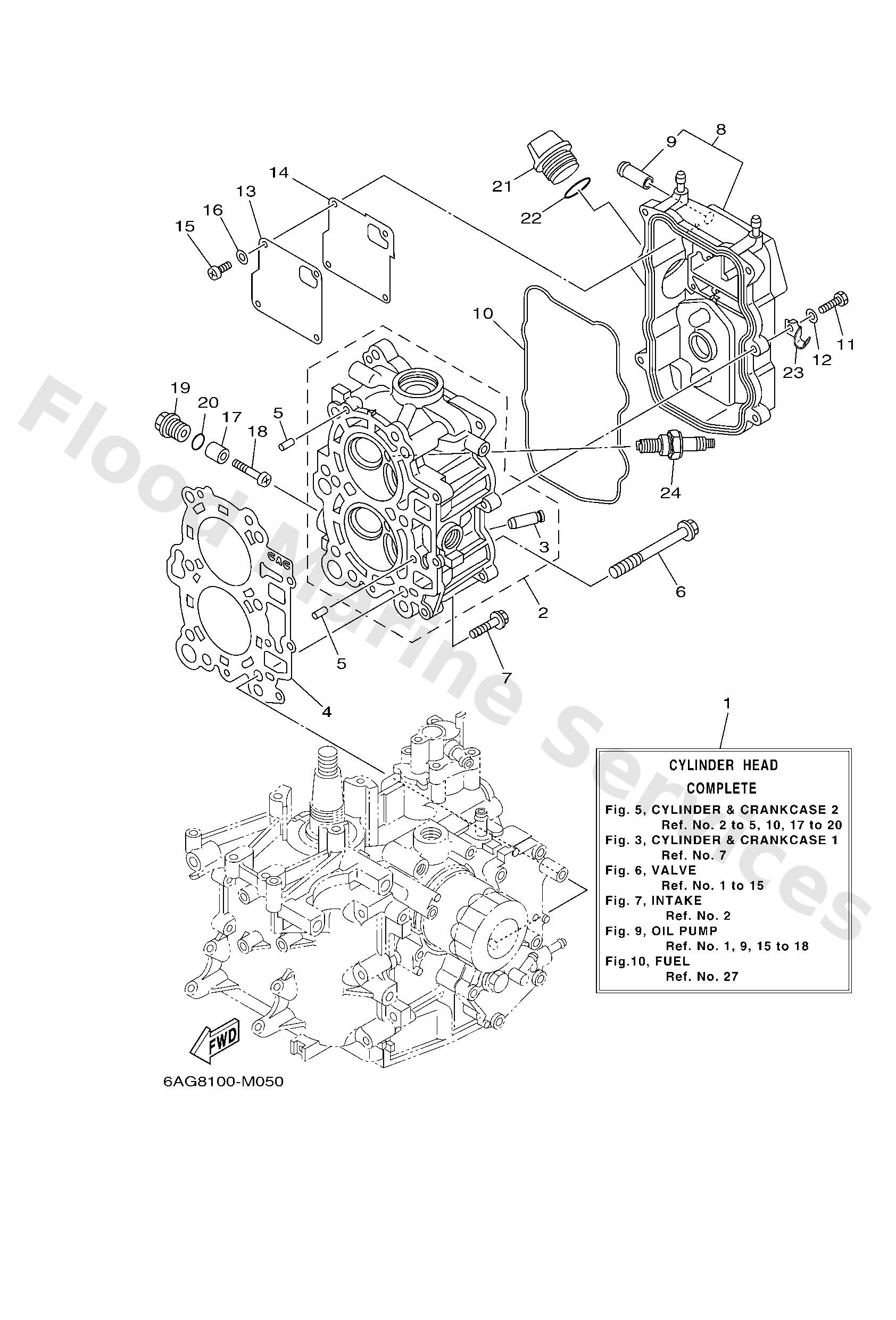

Diagram: CYLINDER & CRANKCASE 2
Parts List
Cylinder head complete
Diagram Reference: 1
Head, cylinder 1
Diagram Reference: 2
Guide, valve 1
Diagram Reference: 3
Gasket, cylinder head 1
Diagram Reference: 4
Pin, dowel (614)
Diagram Reference: 5
Bolt, flange
Diagram Reference: 6
Bolt, with washer
Diagram Reference: 7
Cover, cylinder head 1
Diagram Reference: 8
Nipple, hose
Diagram Reference: 9
Seal, cylinder 2
Diagram Reference: 10
Bolt(7u8)
Diagram Reference: 11
Washer, plain (646)
Diagram Reference: 12
Cover, breather
Diagram Reference: 13
Gasket, breather cover
Diagram Reference: 14
Screw, pan head(6g8)
Diagram Reference: 15
Washer(jf2)
Diagram Reference: 16
Anode
Diagram Reference: 17
Screw, panhead (a93)
Diagram Reference: 18
Plug, blind
Diagram Reference: 19
O-ring (6g8)
Diagram Reference: 20
Plug, oil
Diagram Reference: 21
O-ring
Diagram Reference: 22
Clamp
Diagram Reference: 23
Plug, spark (dpr6eb-9)
Diagram Reference: 24
