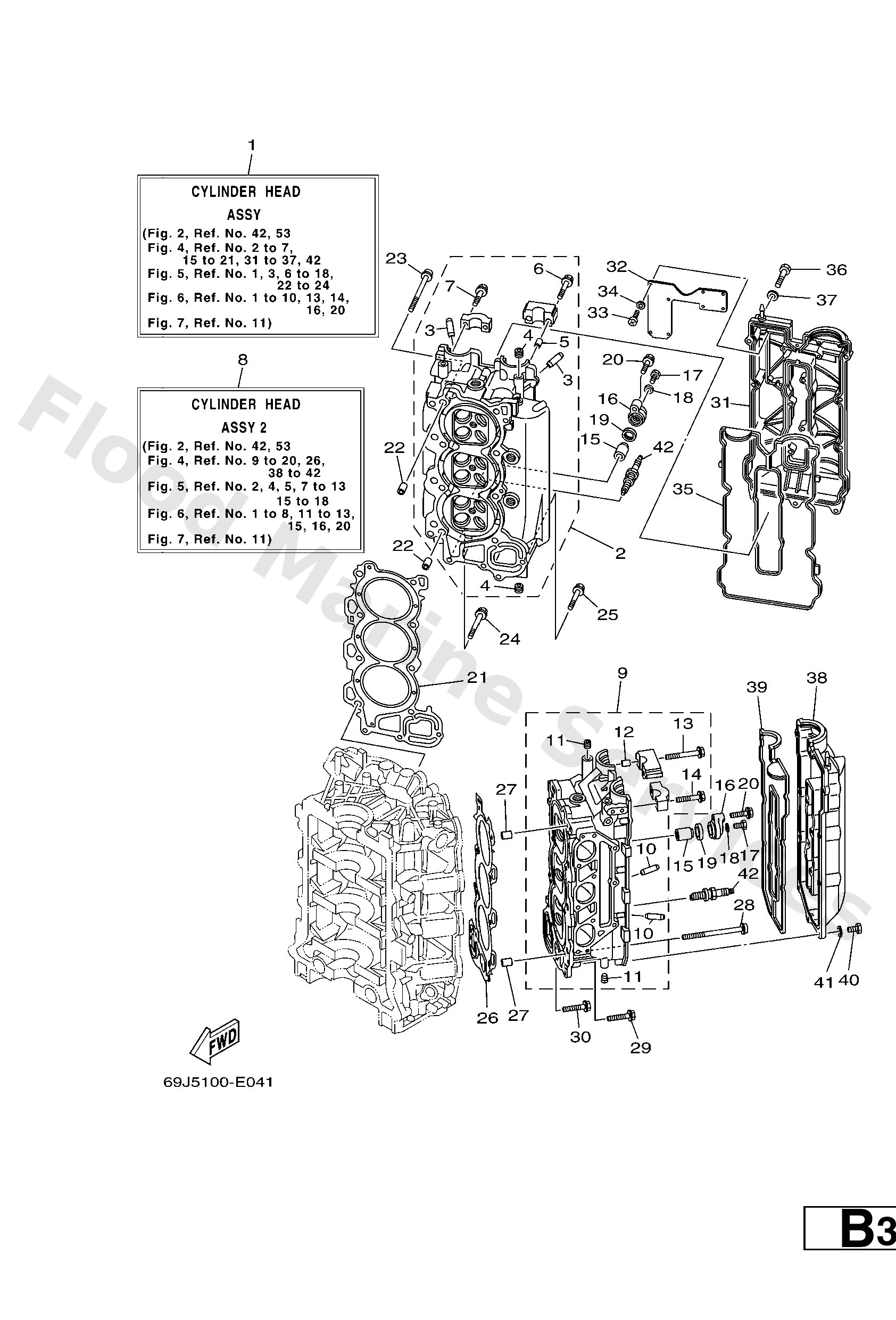

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

69JW009A041S (Go to P/N ) PE0-OM-100018)
Cylinder head complete
Diagram Reference: 1
Get Part
69J111100194
Cylinder head assembly
Diagram Reference: 2
Get Part
69J1113310
Guide, intake valve
Diagram Reference: 3
Get Part
9034451019
Plug, taper screw
Diagram Reference: 4
Get Part
9180908006
Pin, dowel
Diagram Reference: 5
Get Part
9011907235
Bolt, with washer
Diagram Reference: 6
Get Part
9011907234
Bolt, with washer
Diagram Reference: 7
Get Part
69JW009C041S (Go to P/N ) PE0-OM-100018)
69J-W009C-05-1S
Diagram Reference: 8
Get Part
69J111200194
Cylinder head assembly 2
Diagram Reference: 9
Get Part
68V1132501 (Go to P/N ) PE0-OM-100018)
Anode
Diagram Reference: 15
Get Part
69J113270094 (Go to P/N ) PE0-OM-100018)
Anode cover assembly
Diagram Reference: 16
Get Part
9707506020 (Go to P/N ) PE0-OM-100018)
Bolt(7u8)
Diagram Reference: 17
Get Part
9299506600 (Go to P/N ) PE0-OM-100018)
Washer, plain (646)
Diagram Reference: 18
Get Part
67F1132800 (Go to P/N ) PE0-OM-100018)
Grommet, anode
Diagram Reference: 19
Get Part
9757508540
Bolt, hexagon w/w deep recess
Diagram Reference: 20
Get Part
69J1118103
Gasket, cylinder head 1
Diagram Reference: 21
Get Part
9038710M08
Pin, dowel
Diagram Reference: 22
Get Part
9015510001
Screw, flat fillister
Diagram Reference: 23
Get Part
9011908M91
Bolt, with washer
Diagram Reference: 24
Get Part
9011908021
Bolt, with washer
Diagram Reference: 25
Get Part
69J1118203
Gasket, cylinder head 2
Diagram Reference: 26
Get Part
69J11191001S
Cover, cylinder head 1
Diagram Reference: 31
Get Part
69J1113500
Plate, breather 3
Diagram Reference: 32
Get Part
9850704008
Screw, pan head(jg1)
Diagram Reference: 33
Get Part
9290704600
Washer(jf2)
Diagram Reference: 34
Get Part
69J1119301
Gasket, head cover 1
Diagram Reference: 35
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 36
Get Part
69J11192001S
-
Diagram Reference: 38
Get Part
69J1119400
Gasket, head cover 2
Diagram Reference: 39
Get Part
9470200391
Plug, spark (lfr5a-11)
Diagram Reference: 42
Get Part
44
-
Diagram Reference: 4
Get Part
