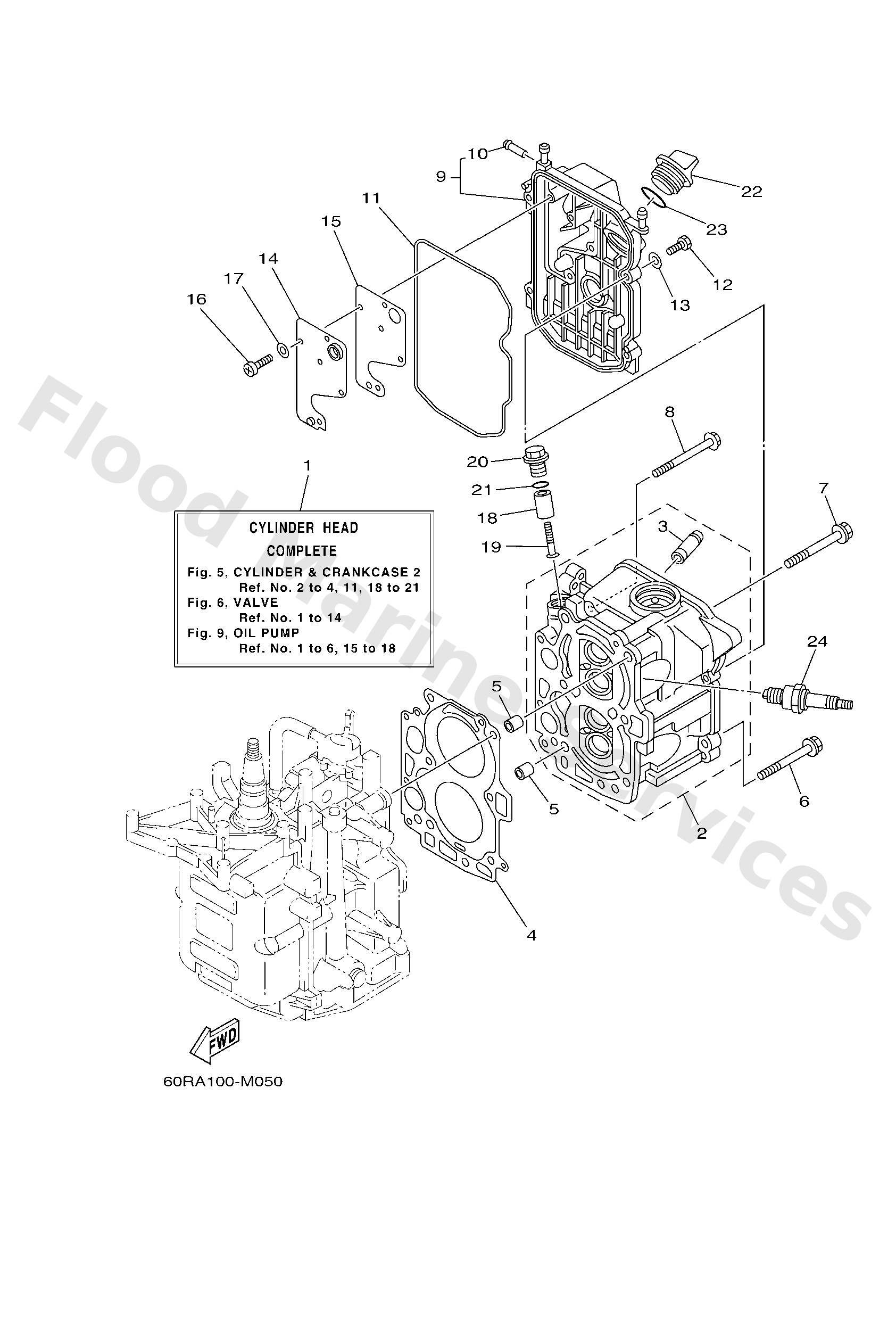

Diagram: CYLINDER & CRANKCASE 2
Parts List
Cylinder head assembly
Diagram Reference: 1
Head, cylinder 1
Diagram Reference: 2
Guide, valve 1
Diagram Reference: 3
Gasket, cylinder head 1
Diagram Reference: 4
Pin, dowel(3vd)
Diagram Reference: 5
Bolt (6g8)
Diagram Reference: 6
Bolt, washer based
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Cover, cylinder head 1
Diagram Reference: 9
Pipe, joint 2
Diagram Reference: 10
Seal, cylinder 2
Diagram Reference: 11
Bolt(7u8)
Diagram Reference: 12
Washer, plain (646)
Diagram Reference: 13
Cover, breather
Diagram Reference: 14
Gasket, breather cover
Diagram Reference: 15
Screw, pan head(6g8)
Diagram Reference: 16
Washer(jf2)
Diagram Reference: 17
Anode
Diagram Reference: 18
Screw, panhead (a93)
Diagram Reference: 19
Plug, blind
Diagram Reference: 20
O-ring (6g8)
Diagram Reference: 21
Plug, oil
Diagram Reference: 22
O-ring
Diagram Reference: 23
Plug, spark (br6hs-10)
Diagram Reference: 24
