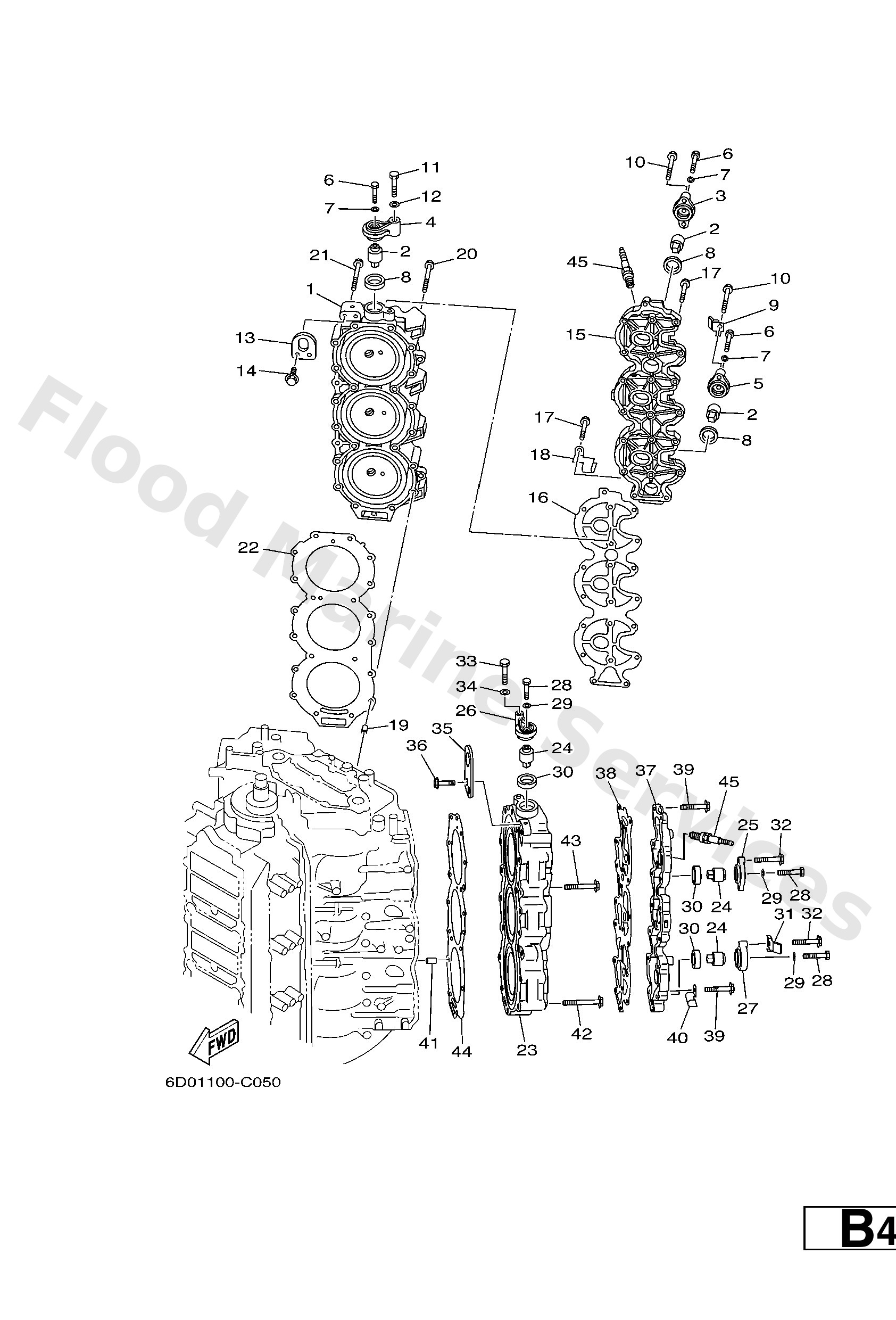

Diagram: CYLINDER & CRANKCASE 2

Diagram

Parts List

6D011111001S
-
Diagram Reference: 1
Get Part
67F1132500 (Go to P/N ) PE0-OM-100024)
Anode
Diagram Reference: 2
Get Part
67F113270094 (Go to P/N ) PE0-OM-100024)
Anode cover assembly
Diagram Reference: 3
Get Part
69J113270094 (Go to P/N ) PE0-OM-100024)
Anode cover assembly
Diagram Reference: 4
Get Part
60V113270094 (Go to P/N ) PE0-OM-100024)
Anode cover assembly
Diagram Reference: 5
Get Part
9707506020 (Go to P/N ) PE0-OM-100024)
Bolt(7u8)
Diagram Reference: 6
Get Part
9299506600 (Go to P/N ) PE0-OM-100024)
Washer, plain (646)
Diagram Reference: 7
Get Part
67F1132800 (Go to P/N ) PE0-OM-100024)
Grommet, anode
Diagram Reference: 8
Get Part
60V1253500
Plate
Diagram Reference: 9
Get Part
9757508550
Bolt, with washer
Diagram Reference: 10
Get Part
9707508035
Bolt(70w)
Diagram Reference: 11
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 12
Get Part
68F1111900
Hanger, engine
Diagram Reference: 13
Get Part
9011906MA2
Bolt, with washer
Diagram Reference: 14
Get Part
60V11191001S
-
Diagram Reference: 15
Get Part
60V1119300
Gasket, head cover 1
Diagram Reference: 16
Get Part
9011906MA4
Bolt, with washer
Diagram Reference: 17
Get Part
68F8391900
Clamp, harness
Diagram Reference: 18
Get Part
9959010114
Pin, dowel
Diagram Reference: 19
Get Part
9011908MA5
Bolt, with washer
Diagram Reference: 20
Get Part
9011908MA8
Bolt, with washer
Diagram Reference: 21
Get Part
6D01118100
Gasket, cylinder head 1
Diagram Reference: 22
Get Part
6D011121001S
-
Diagram Reference: 23
Get Part
69J1111E00
Hanger, engine 2
Diagram Reference: 35
Get Part
60V11192001S
Cover, cylinder head 2
Diagram Reference: 37
Get Part
9470200405
Plug, spark (bkr6eku)
Diagram Reference: 45
Get Part
