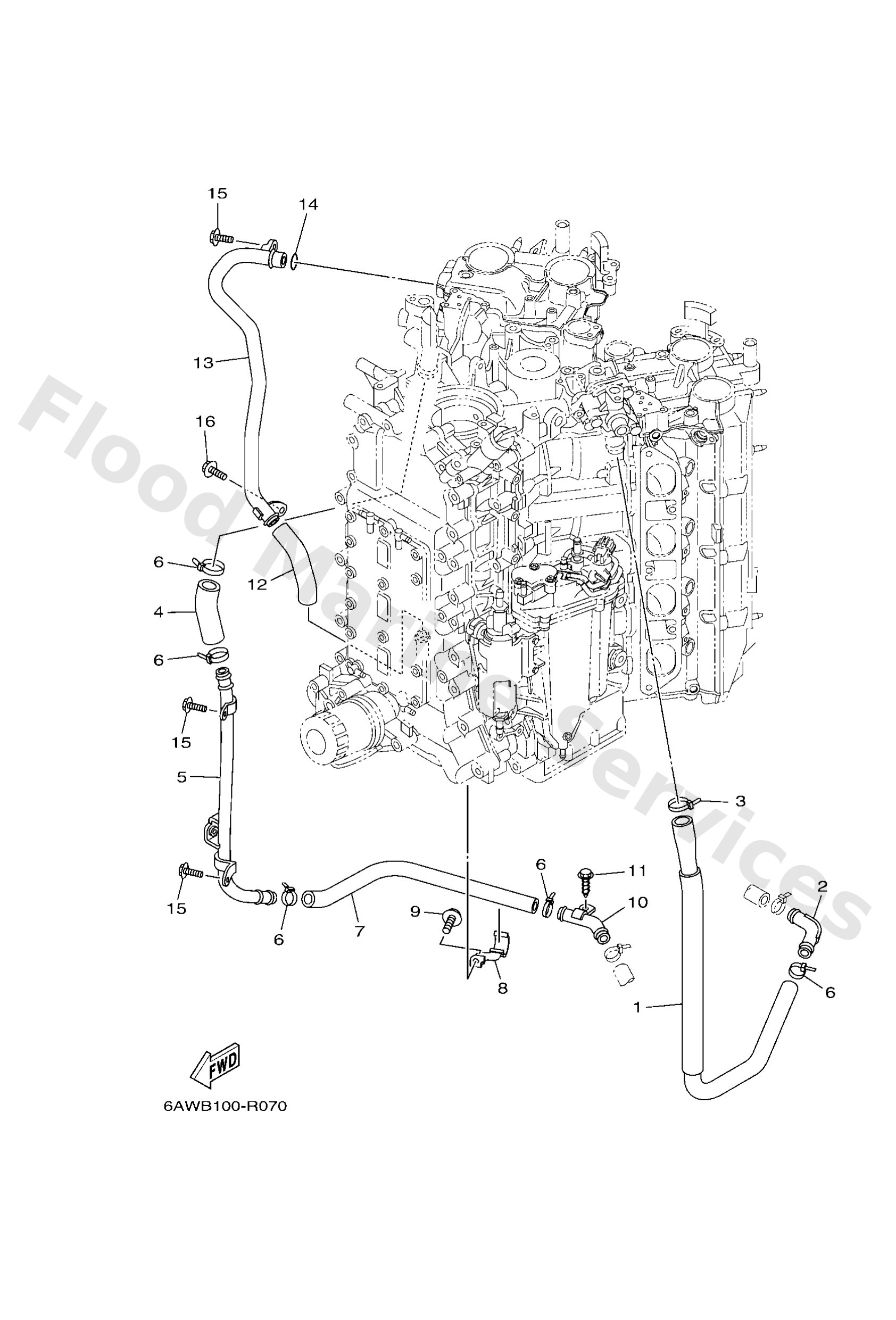

Diagram: CYLINDER & CRANKCASE 4

Diagram

Parts List

6AW1243A00
Hose 1
Diagram Reference: 1
Get Part
6AW1247700
Pipe 7
Diagram Reference: 2
Get Part
9046511M59
Clamp(63m)
Diagram Reference: 3
Get Part
6AW1243E00
Hose 2
Diagram Reference: 4
Get Part
6AW1248400
Pipe 4
Diagram Reference: 5
Get Part
6AW1244G00
Hose, 4
Diagram Reference: 7
Get Part
6AW1249110
Clamp 1
Diagram Reference: 8
Get Part
97E9506514
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
6AW1247600
Pipe 6
Diagram Reference: 10
Get Part
9010906M86
Bolt
Diagram Reference: 11
Get Part
6AW1244J00
Hose 6
Diagram Reference: 12
Get Part
6AW1137800
Hose 2
Diagram Reference: 13
Get Part
93210207A0
O-ring
Diagram Reference: 14
Get Part
95D9506014
Bolt, flange deep recess
Diagram Reference: 15
Get Part
95D9506010
Bolt, flange deep recess
Diagram Reference: 16
Get Part
