Yamaha Outboard Parts - CYLINDER HEAD - ME730TIM (2006) | Flood Marine

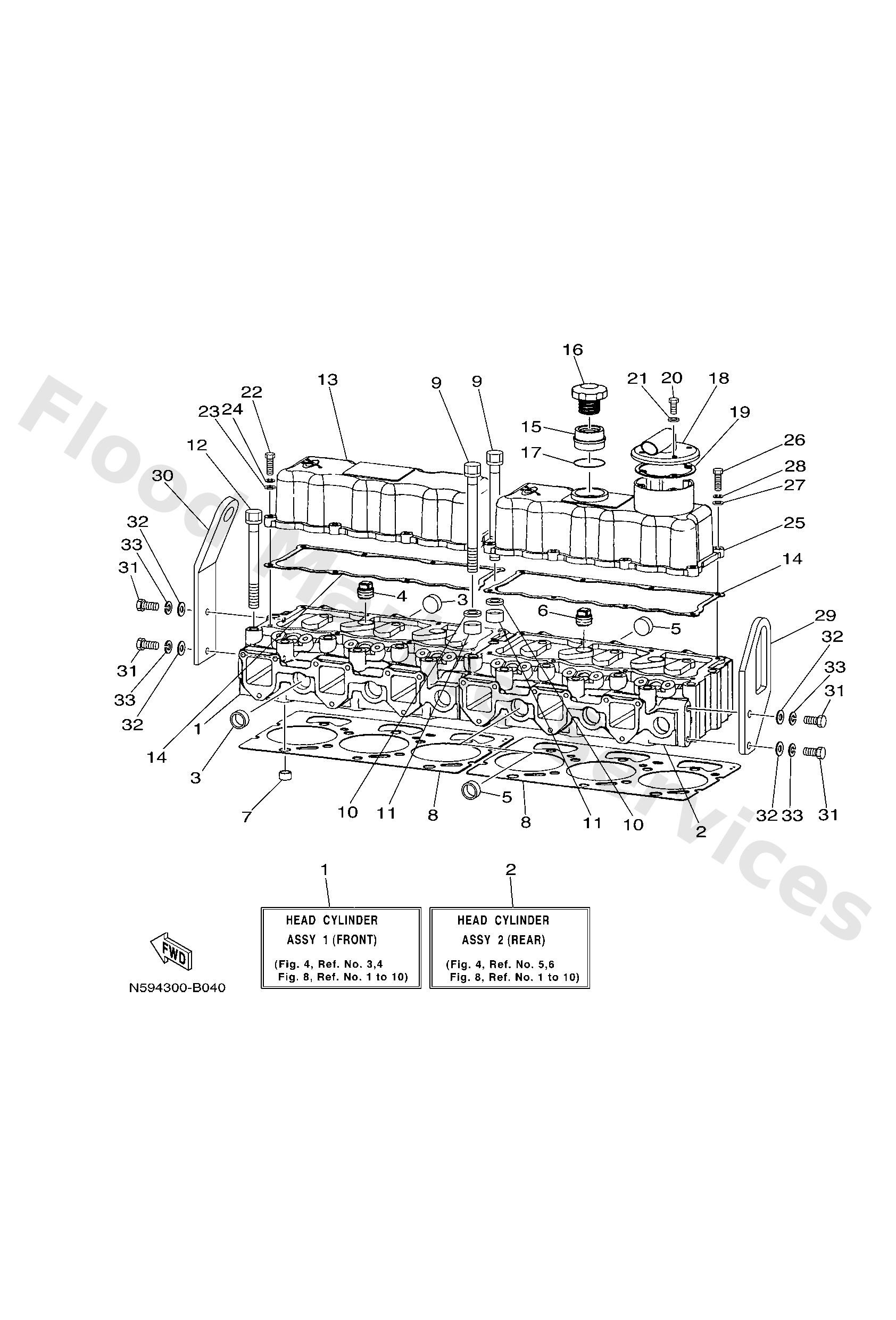

Diagram: CYLINDER HEAD

Diagram

Parts List

Reference
Description
Price


1
N5911102Y0
4- 1
Loading…

↗
2
N5911103Y0
4- 2
Loading…

↗
3
N5915385Y0
Plug, tight
Loading…

↗
4
N5913455Y0
4- 4
Loading…

↗
7
N591319LY0
4- 7
Loading…

↗
8
N591118103
Gasket, cylinder head 1
Loading…

↗
9
N595159JY0
Bolt, cyl. head (long)
Loading…

↗
10
N5921516Y0
Washer
Loading…

↗
11
N5921515Y0
Washer
Loading…

↗
12
N595159KY0
Bolt, cyl. head (short)
Loading…

↗
13
N5911191Y0
4- 13
Loading…

↗
14
N591119300
Gasket, head cover 1
Loading…

↗
15
N5947547Y0
4- 15
Loading…

↗
16
N596778AY1
Oil Filler assembly
Loading…

↗
17
N5924486Y0
O-Ring
Loading…

↗
18
N5911108Y0
4- 18
Loading…

↗
19
N592464JY0
Gskt., Breather
Loading…

↗
20
N5944331Y0
Bolt M8X20
Loading…

↗
21
N5914558Y0
Washer, Spring
Loading…

↗
22
N5921531Y0
Bolt M8X30
Loading…

↗
23
N5912664Y0
Washer, Plain
Loading…

↗
25
N5911192Y0
4- 25
Loading…

↗
29
N591111E00
Hanger, engine 2
Loading…

↗
30
N591111900
Hanger, engine
Loading…

↗
31
N5912228Y0
Bolt M12X30
Loading…

↗
32
N5913318Y0
4- 32
Loading…

↗
33
N5914285Y0
Washer, Spring
Loading…

↗
