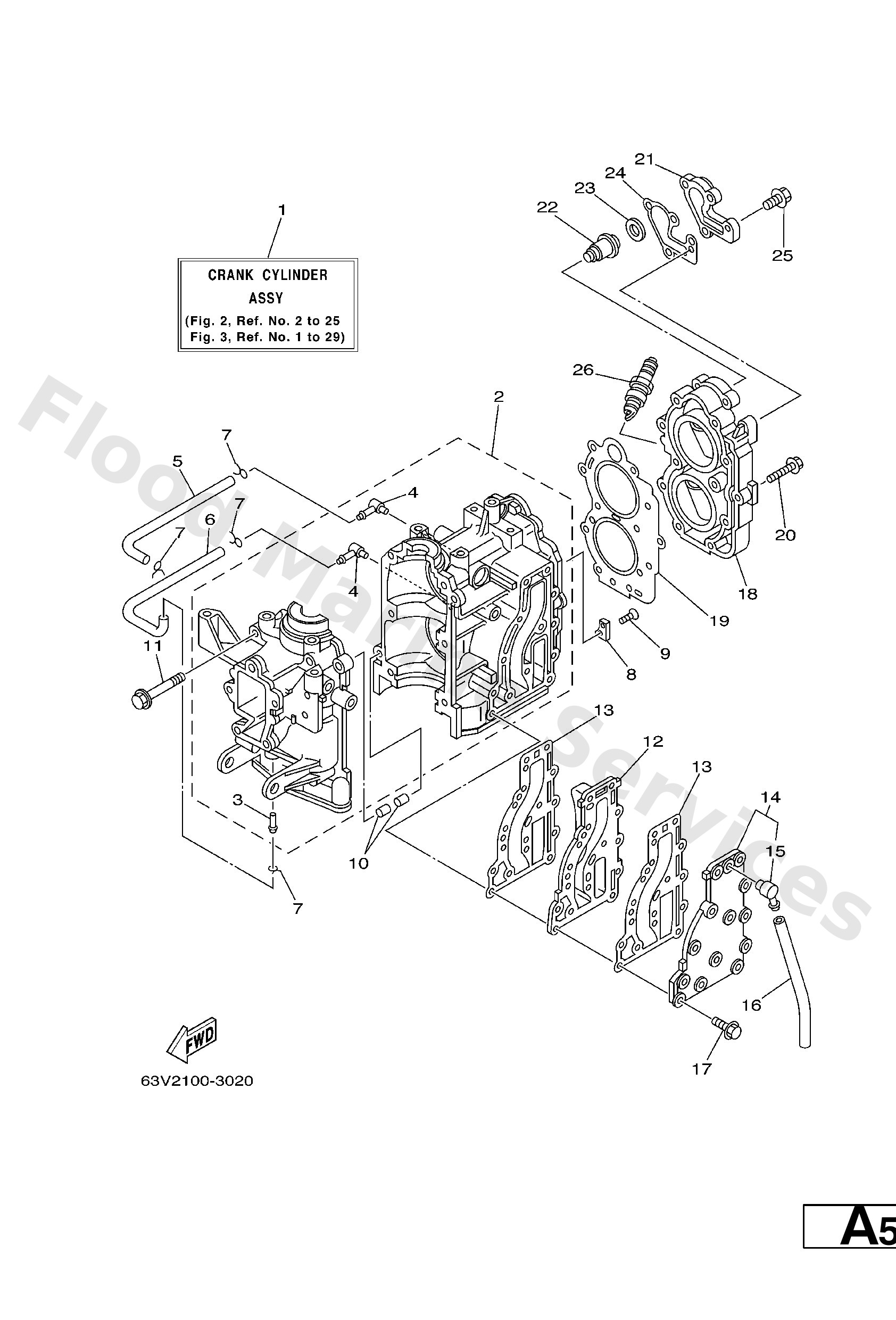

Diagram: CYLINDER. CRANKCASE

Diagram

Parts List

624−14485−00
Pipe, joint
Diagram Reference: 3
Get Part
650−14485−03
Pipe, joint
Diagram Reference: 4
Get Part
90445−07M08
Hose (l390)
Diagram Reference: 5
Get Part
90467−06016
Clip (655)
Diagram Reference: 7
Get Part
682−11325−00
Anode 1
Diagram Reference: 8
Get Part
98780−05015
Ybs53-516 screw,flat head
Diagram Reference: 9
Get Part
93606−12019
Pin, dowel (614)
Diagram Reference: 10
Get Part
90119−08M07
Bolt, with washer(63v)
Diagram Reference: 11
Get Part
63V−41112−A0
Gasket, exhaust inner cover
Diagram Reference: 13
Get Part
676−11372−00
Nipple, hose
Diagram Reference: 15
Get Part
90445−09105
Hose (l420)
Diagram Reference: 16
Get Part
90119−06MA4
Bolt, with washer
Diagram Reference: 17
Get Part
63V−11181−A1
Gasket, cylinder head 1
Diagram Reference: 19
Get Part
90105−07002
Bolt, flange
Diagram Reference: 20
Get Part
6E5−12411−30
Thermostat
Diagram Reference: 22
Get Part
90201−16M03
Washer, plate(63v)
Diagram Reference: 23
Get Part
682−12414−A1
Gasket, cover
Diagram Reference: 24
Get Part
90119−06MA2
Bolt, with washer
Diagram Reference: 25
Get Part
94702−00217
Plug, spark (b7hs-10)
Diagram Reference: 26
Get Part
94702−00271 (FOR CHINA,CARIB)
Plug, spark (br7hs-10)
Diagram Reference: 26
Get Part
