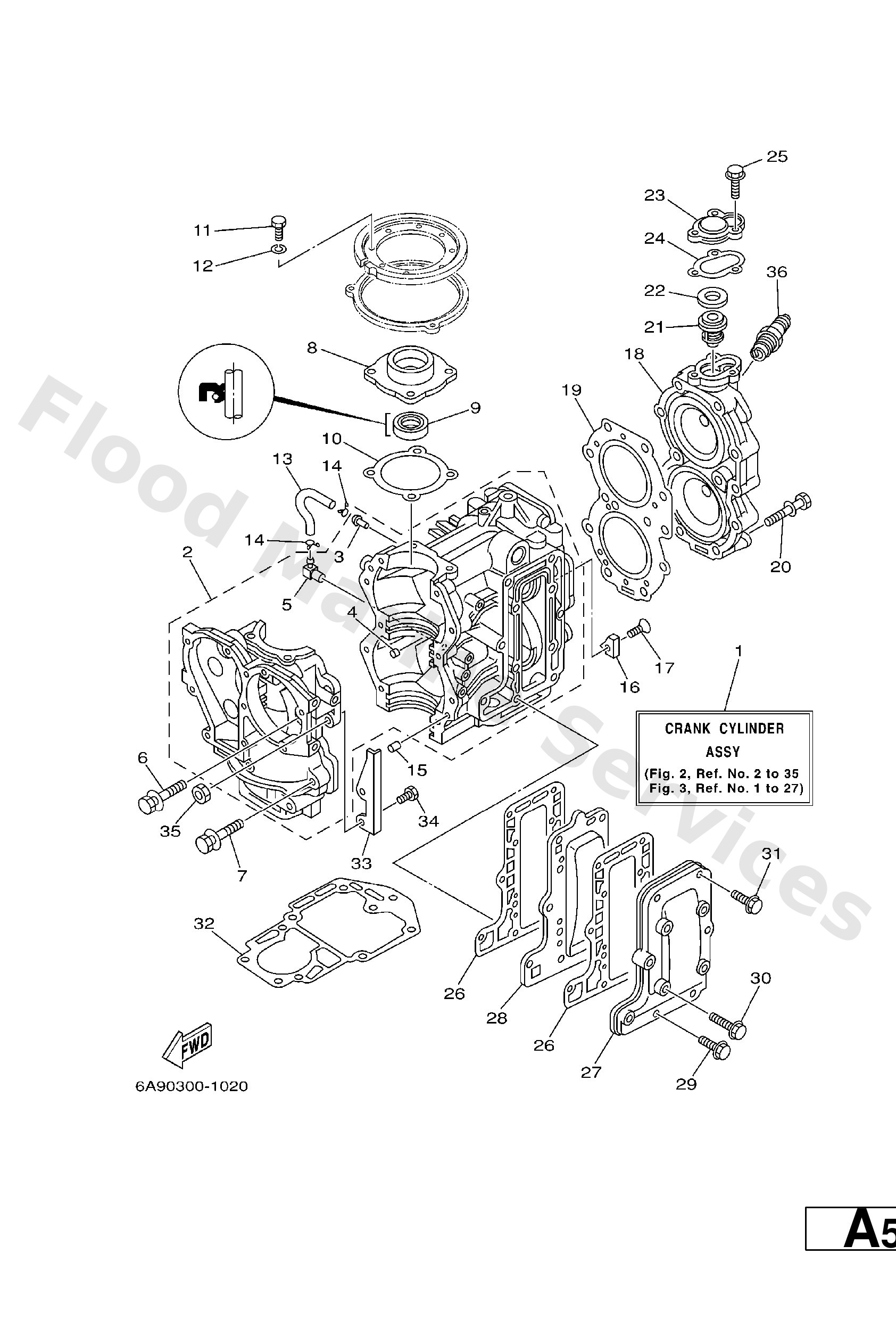

Diagram: CYLINDER. CRANKCASE

Diagram

Parts List

624--14485--00
Pipe, joint
Diagram Reference: 3
Get Part
624--11379--00
Valve, check
Diagram Reference: 4
Get Part
650--11370--00
Check valve assembly
Diagram Reference: 5
Get Part
90119--08009
Bolt, with washer
Diagram Reference: 6
Get Part
90119--08M66
Bolt, with washer
Diagram Reference: 7
Get Part
93102--23096
Oil seal (23x38x7-648)
Diagram Reference: 9
Get Part
66415369A0
Gasket, oil seal housing
Diagram Reference: 10
Get Part
97013--06020
Bolt(62y)
Diagram Reference: 11
Get Part
92903--06100
Washer(6a1)
Diagram Reference: 12
Get Part
90445--07260
Hose (l390)
Diagram Reference: 13
Get Part
90467--06016
Clip (655)
Diagram Reference: 14
Get Part
93606--12019
Pin, dowel (614)
Diagram Reference: 15
Get Part
689--11325--00
Anode
Diagram Reference: 16
Get Part
90151--06M02
Screw, countersunk
Diagram Reference: 17
Get Part
69511181A1
Gasket, cylinder head 1
Diagram Reference: 19
Get Part
9011908016
Bolt, With Washer
Diagram Reference: 20
Get Part
6F51241102
Thermostat
Diagram Reference: 21
Get Part
90201--21567
Washer, plate (650)
Diagram Reference: 22
Get Part
655--12414--A1
Gasket, cover
Diagram Reference: 24
Get Part
90119--06MA2
Bolt, with washer
Diagram Reference: 25
Get Part
66441114A0
Gasket, exhaust outer cover
Diagram Reference: 26
Get Part
6644111100
Inner cover, exhaust
Diagram Reference: 28
Get Part
90119--06MA3
Bolt, with washer
Diagram Reference: 29
Get Part
90119--06MA4
Bolt, with washer
Diagram Reference: 30
Get Part
90119--06MA5
Bolt, with washer
Diagram Reference: 31
Get Part
689--45113--A1
Gasket, upper casing
Diagram Reference: 32
Get Part
6954161600
Stopper, Magneto Base
Diagram Reference: 33
Get Part
95380--06600
Nut(661)
Diagram Reference: 35
Get Part
94702--00272
Plug, spark (br7hs)
Diagram Reference: 36
Get Part
