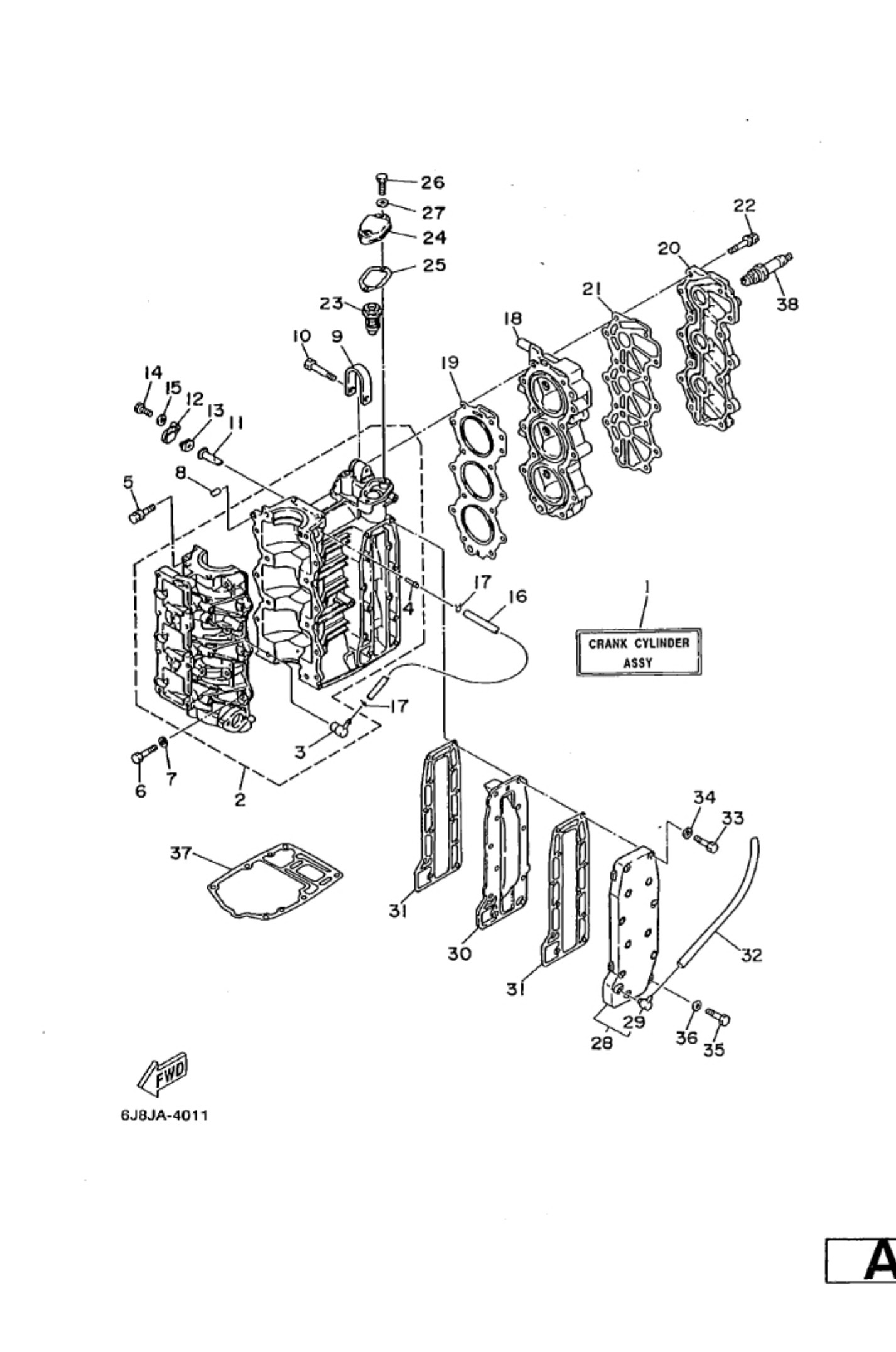

Diagram: CYLINDER. CRANKCASE

Diagram

Parts List

6J8W0090424D (LIE IRAE)
Crank cylinder assembly
Diagram Reference: 1
Get Part
6J8151001194 (1p)
Crankcase assembly
Diagram Reference: 2
Get Part
6501137000 (HEIRIE)
Check valve assembly
Diagram Reference: 3
Get Part
6241448500 (LIRIRIn)
Pipe, joint
Diagram Reference: 4
Get Part
9701306030 (6| 6| 6) 6)
Bolt
Diagram Reference: 6
Get Part
9290306600 (6| 6f 6] 6)
Washer, plain (646)
Diagram Reference: 7
Get Part
9360612019 (2| 2 2|2)
Pin, dowel (614)
Diagram Reference: 8
Get Part
6F51111900 (URINE)
Hanger, engine
Diagram Reference: 9
Get Part
9701308035
Bolt
Diagram Reference: 10
Get Part
6J81132500 (2| 2| 2| 2)
Anode
Diagram Reference: 11
Get Part
6H31132800 (2f 2| 2] 2)
Grommet, anode
Diagram Reference: 13
Get Part
9701306016 (2| 2| 2| 2)
Bolt, hexagon deep recess
Diagram Reference: 14
Get Part
9044507M29 (URIRIS)
Hose (l200)
Diagram Reference: 16
Get Part
9046706016 (2| 2] 2| 2)
Clip (655)
Diagram Reference: 17
Get Part
6J8111110094 (LRIRIE)
Head, cylinder 1
Diagram Reference: 18
Get Part
6J811181A1 (HRIRIR)
Gasket, cylinder head 1
Diagram Reference: 19
Get Part
6] (RIE)
Sm
Diagram Reference: 20
Get Part
64811193A1 (HRIRIE)
Gasket, Head Cover 1
Diagram Reference: 21
Get Part
9011908M21 (14[14}14[14)
Bolt, with washer(63v)
Diagram Reference: 22
Get Part
6881241110 (1] 1] 1] 1)
Thermostat
Diagram Reference: 23
Get Part
6J8JA4011
-
Diagram Reference: 23
Get Part
Bl
Gasket, Cover
Diagram Reference: 25
Get Part
9701306025 (2f 2| 2f 2)
Bolt(62y)
Diagram Reference: 26
Get Part
6J841113009M
Outer cover, exhaust
Diagram Reference: 28
Get Part
6761137200 (p11)
Nipple, hose
Diagram Reference: 29
Get Part
6J841111009M (pp)
Inner cover, exhaust
Diagram Reference: 30
Get Part
6J841114A0 (2| 2] 22)
Gasket, exhaust outer cover
Diagram Reference: 31
Get Part
111J00
-
Diagram Reference: 31
Get Part
9701306035 (RLERRARIERI])
Bolt(3rv)
Diagram Reference: 33
Get Part
9470200271 (af 3] af a)
Plug, spark (br7hs-10)
Diagram Reference: 38
