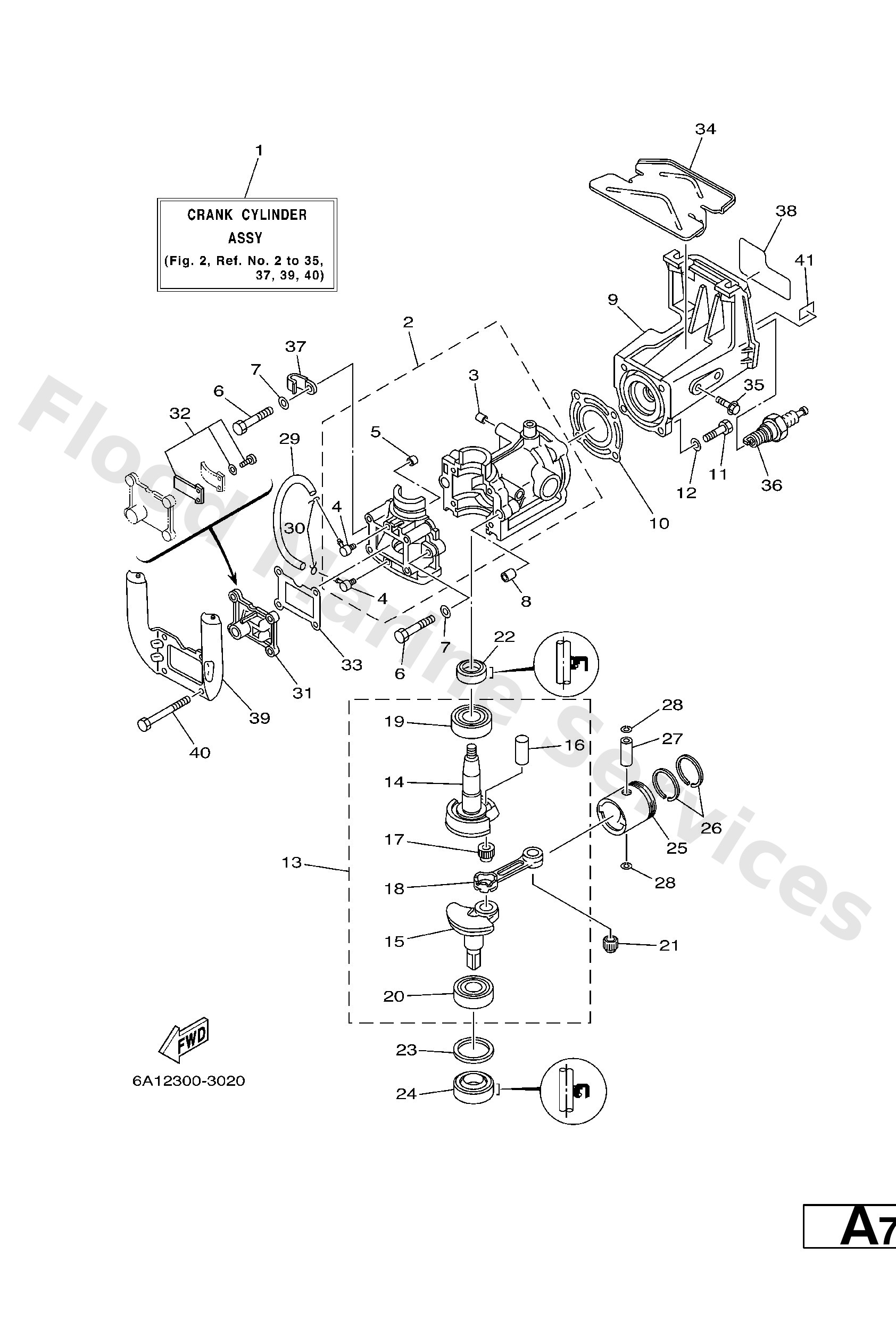

Diagram: CYLINDER. CRANKCASE
Parts List
Plug, blind 6551131300
Diagram Reference: 3
Pipe, joint
Diagram Reference: 4
Valve, check
Diagram Reference: 5
Bolt (682)
Diagram Reference: 6
Washer, plain (646)
Diagram Reference: 7
Pin, dowel
Diagram Reference: 8
Gasket, cylinder head 1
Diagram Reference: 10
Bolt
Diagram Reference: 11
Washer, plain (646)
Diagram Reference: 12
Crank 1
Diagram Reference: 14
Crank 2
Diagram Reference: 15
Pin, crank 1
Diagram Reference: 16
Brg,cyl-cal roller 5g tm
Diagram Reference: 17
Rod, connecting
Diagram Reference: 18
Brg,r-b 6004 42mm 69g nk
Diagram Reference: 19
Brg,r-b 6302 42mm 82g nk
Diagram Reference: 20
Bearing (27v)
Diagram Reference: 21
Oil seal
Diagram Reference: 22
Washer, Plate
Diagram Reference: 23
Oil seal(6a1)
Diagram Reference: 24
Pin,piston
Diagram Reference: 27
Circlip 101116340000
Diagram Reference: 28
Hose (l200)
Diagram Reference: 29
Clip (655)
Diagram Reference: 30
Reed valve assembly
Diagram Reference: 31
Reed set
Diagram Reference: 32
Gasket, valve seat
Diagram Reference: 33
Protector, fuel tank
Diagram Reference: 34
Bolt, flange(7ht)
Diagram Reference: 35
Plug, Spark (Ngk Br5Hs)
Diagram Reference: 36
Clamp
Diagram Reference: 37
Graphic, rear
Diagram Reference: 38
Stay 1
Diagram Reference: 39
Bolt, hexagon
Diagram Reference: 40
Mark 1
Diagram Reference: 41
