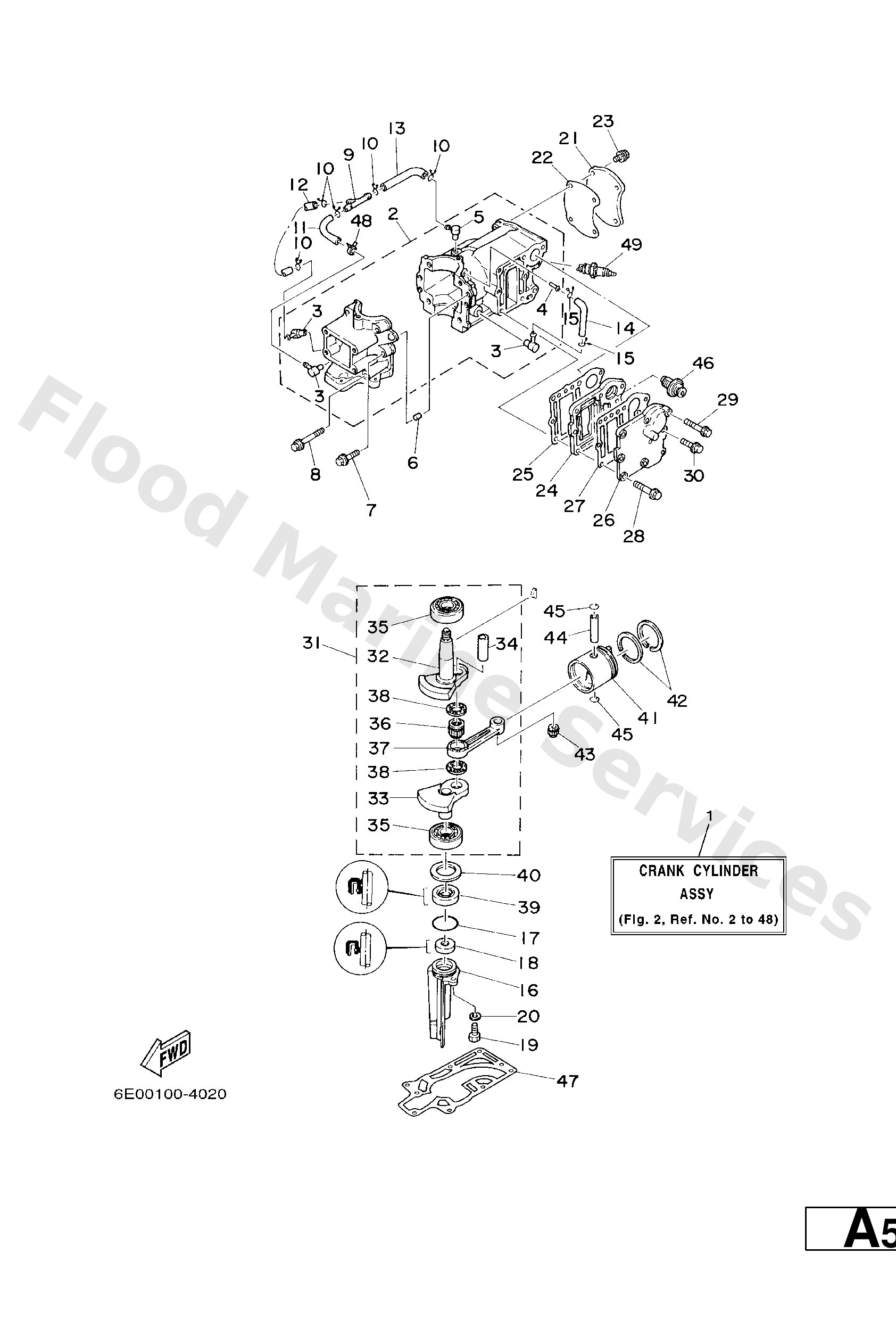

Parts List
Check valve assembly
Diagram Reference: 3
Pipe, joint
Diagram Reference: 4
Nipple, hose
Diagram Reference: 5
Pin, dowel (614)
Diagram Reference: 6
Bolt (6e0)
Diagram Reference: 7
Bolt (6e0)
Diagram Reference: 8
Pipe, joint
Diagram Reference: 9
Clip (655)
Diagram Reference: 10
Hose (l200)
Diagram Reference: 11
Hose (l200)
Diagram Reference: 12
Hose (l200)
Diagram Reference: 13
O-ring
Diagram Reference: 17
Oil seal(6e0)
Diagram Reference: 18
Bolt, hexagon deep recess
Diagram Reference: 19
Washer, plain (646)
Diagram Reference: 20
Gasket,head cover
Diagram Reference: 22
Gasket,head cover
Diagram Reference: 22
Bolt, flange
Diagram Reference: 23
Inner cover, exhaust
Diagram Reference: 24
Inner cover, exhaust
Diagram Reference: 24
Gasket,inner cover exhaust
Diagram Reference: 25
Gasket,inner cover exhaust
Diagram Reference: 25
Outer cover, exhaust
Diagram Reference: 26
Outer cover, exhaust
Diagram Reference: 26
Gasket,outer cover exhaust
Diagram Reference: 27
Gasket,outer cover exhaust
Diagram Reference: 27
Bolt, flange
Diagram Reference: 28
Bolt, flange
Diagram Reference: 29
Crank assembly
Diagram Reference: 31
Crank ass'y
Diagram Reference: 31
Crank 1
Diagram Reference: 32
Crank 1
Diagram Reference: 32
Crank 2
Diagram Reference: 33
Crank 2
Diagram Reference: 33
Pin, crank
Diagram Reference: 34
Bearing(6e0)
Diagram Reference: 35
Bearing (6e0)
Diagram Reference: 36
Rod, connecting
Diagram Reference: 37
Washer 132116850000
Diagram Reference: 38
Oil seal(6j1)
Diagram Reference: 39
Shim (t:0.90mm)
Diagram Reference: 40
Piston
Diagram Reference: 41
Piston
Diagram Reference: 41
Piston ring set (std)
Diagram Reference: 42
Piston ring set (std)
Diagram Reference: 42
Bearing (6e0)
Diagram Reference: 43
Pin, piston
Diagram Reference: 44
Circlip 132116340000
Diagram Reference: 45
Thermostat
Diagram Reference: 46
Gasket,upper casing
Diagram Reference: 47
Clip (6e5)
Diagram Reference: 48
Plug, spark (br7hs)
Diagram Reference: 49
