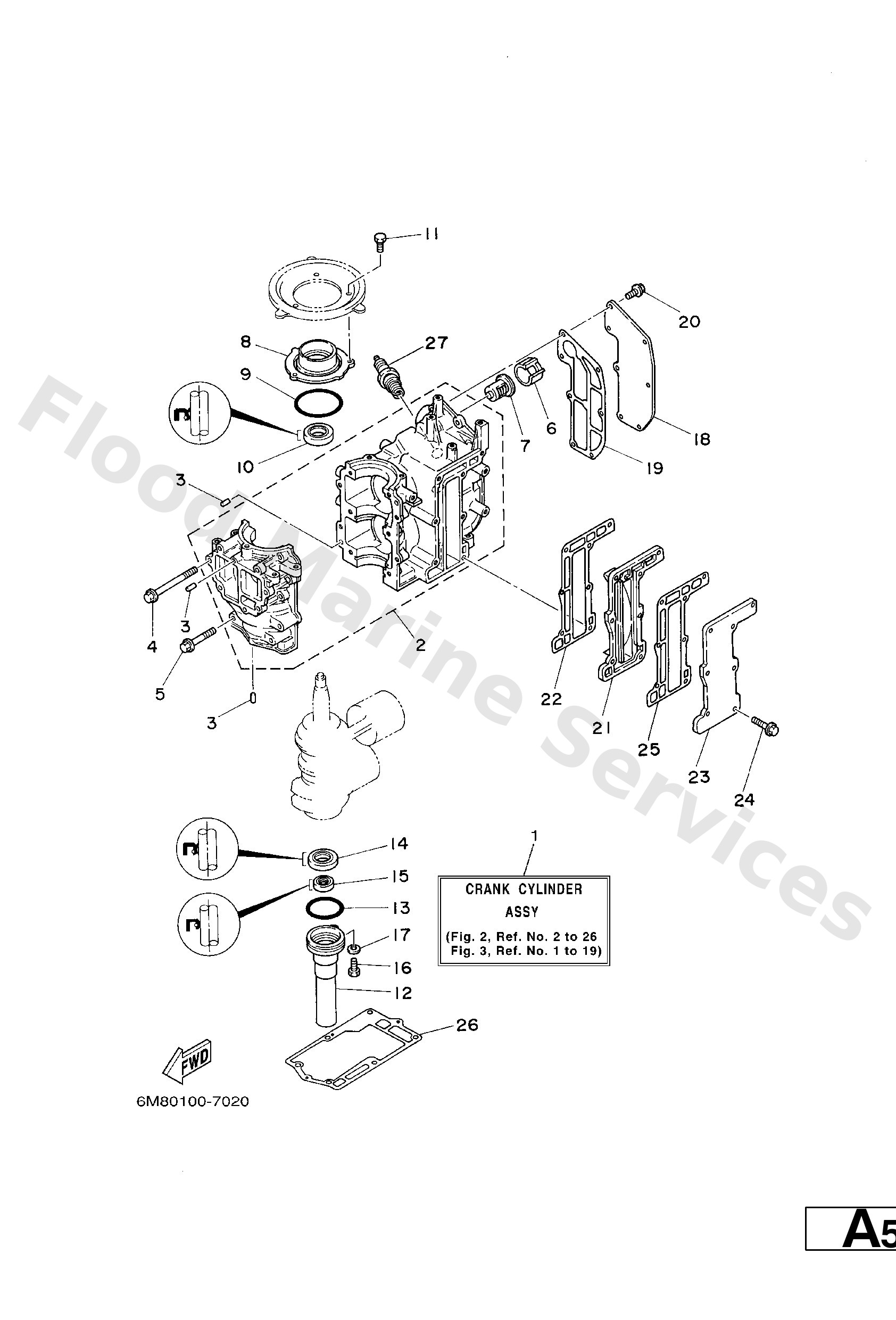

Parts List
Pin,dowel (626)
Diagram Reference: 3
Bolt (6g1)
Diagram Reference: 4
Bolt (6g1)
Diagram Reference: 5
Collar (6g1)
Diagram Reference: 6
Thermostat
Diagram Reference: 7
O-ring (6g1)
Diagram Reference: 9
Oil seal (6e0)
Diagram Reference: 10
Bolt, hexagon deep recess
Diagram Reference: 11
O-ring (647)
Diagram Reference: 13
Oil seal(6j1)
Diagram Reference: 14
Oil seal(6g1)
Diagram Reference: 15
Bolt, hexagon deep recess
Diagram Reference: 16
Washer, plain (646)
Diagram Reference: 17
Gasket, head cover 1
Diagram Reference: 19
Bolt (6e0)
Diagram Reference: 20
Gasket, exhaust inner cover
Diagram Reference: 22
Bolt (6g1)
Diagram Reference: 24
Gasket, exhaust outer cover
Diagram Reference: 25
Gasket, upper casing
Diagram Reference: 26
Plug, spark (br7hs-10)
Diagram Reference: 27
Plug, spark (br6hs-10)
Diagram Reference: 27
