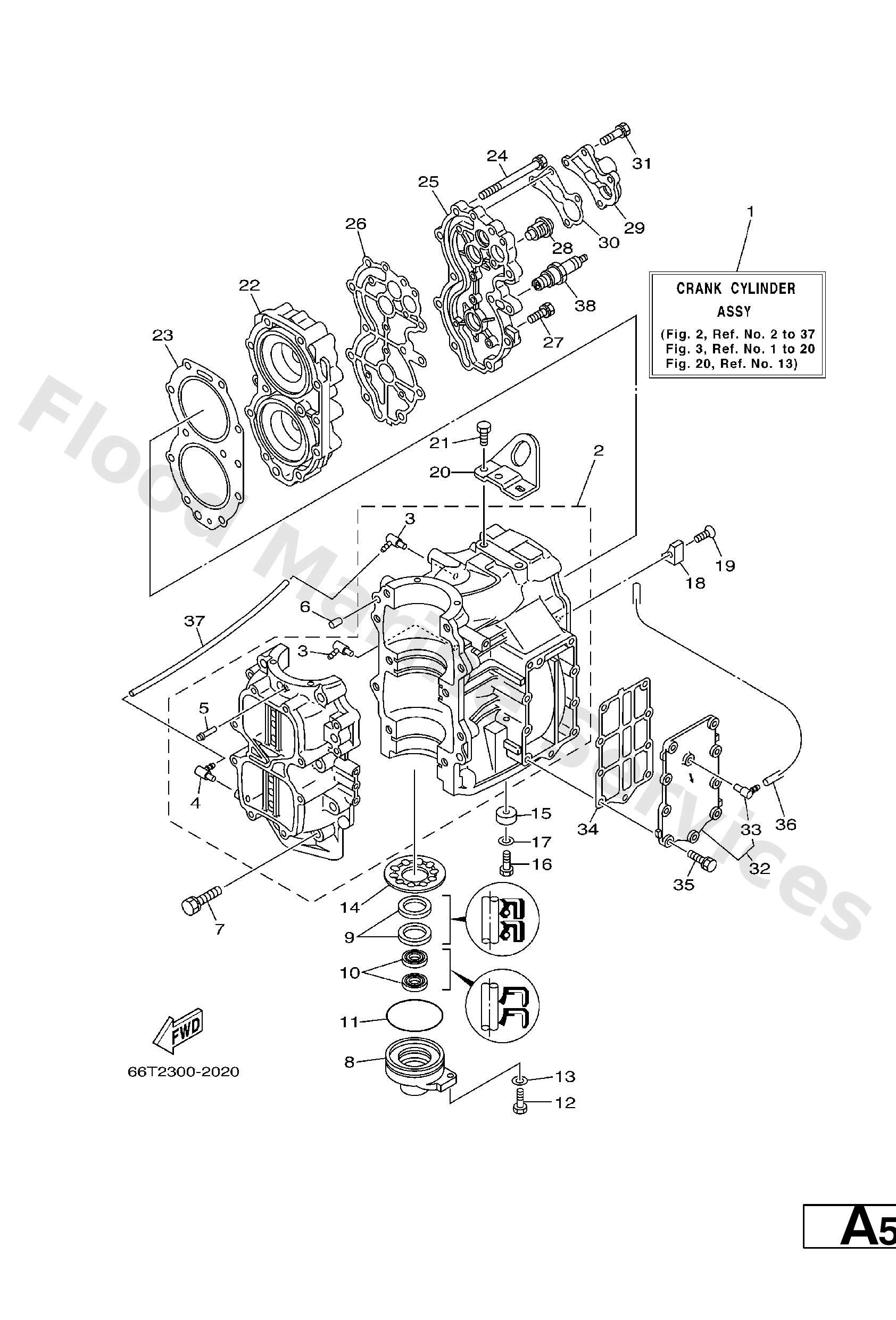

Diagram: CYLINDER. CRANKCASE

Diagram

Parts List

6E5−13552−01
Nozzle
Diagram Reference: 3
Get Part
624−14485−00
Pipe, joint
Diagram Reference: 5
Get Part
93608−12063
Pin, dowel (626)
Diagram Reference: 6
Get Part
90119−10005
Bolt, with washer
Diagram Reference: 7
Get Part
93102−30M56
Oil seal
Diagram Reference: 9
Get Part
93101−16001
Oil seal
Diagram Reference: 10
Get Part
93210−65M50
O-ring
Diagram Reference: 11
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 12
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 13
Get Part
66T−11565−00
Washer, bearing cover
Diagram Reference: 14
Get Part
676−45251−00
Anode
Diagram Reference: 15
Get Part
676−11325−00
Anode
Diagram Reference: 18
Get Part
90141−06M00
Screw, countersunk
Diagram Reference: 19
Get Part
66T−11119−00
Hanger, engine
Diagram Reference: 20
Get Part
90101−08002
Bolt
Diagram Reference: 21
Get Part
66T−11181−A2
Gasket, cylinder head 1
Diagram Reference: 23
Get Part
90119−08MA5
Bolt, with washer
Diagram Reference: 24
Get Part
66T−11193−A2
Gasket, head cover 1
Diagram Reference: 26
Get Part
90119−06MA3
Bolt, with washer
Diagram Reference: 27
Get Part
6E5−12411−01
Thermostat
Diagram Reference: 28
Get Part
676−12413−00−1S
Cover, thermostat
Diagram Reference: 29
Get Part
676−12414−A1
Gasket, cover
Diagram Reference: 30
Get Part
90119−06MA5
Bolt, with washer
Diagram Reference: 31
Get Part
66T−41113−00−1S
Outer cover, exhaust
Diagram Reference: 32
Get Part
676−11372−00
Nipple, hose
Diagram Reference: 33
Get Part
66T−41114−A0
Gasket, exhaust outer cover
Diagram Reference: 34
Get Part
90445−09M75
Hose (l1500)
Diagram Reference: 36
Get Part
90445−07M08
Hose (l390)
Diagram Reference: 37
Get Part
94702−00272
Plug, spark (br7hs)
Diagram Reference: 38
