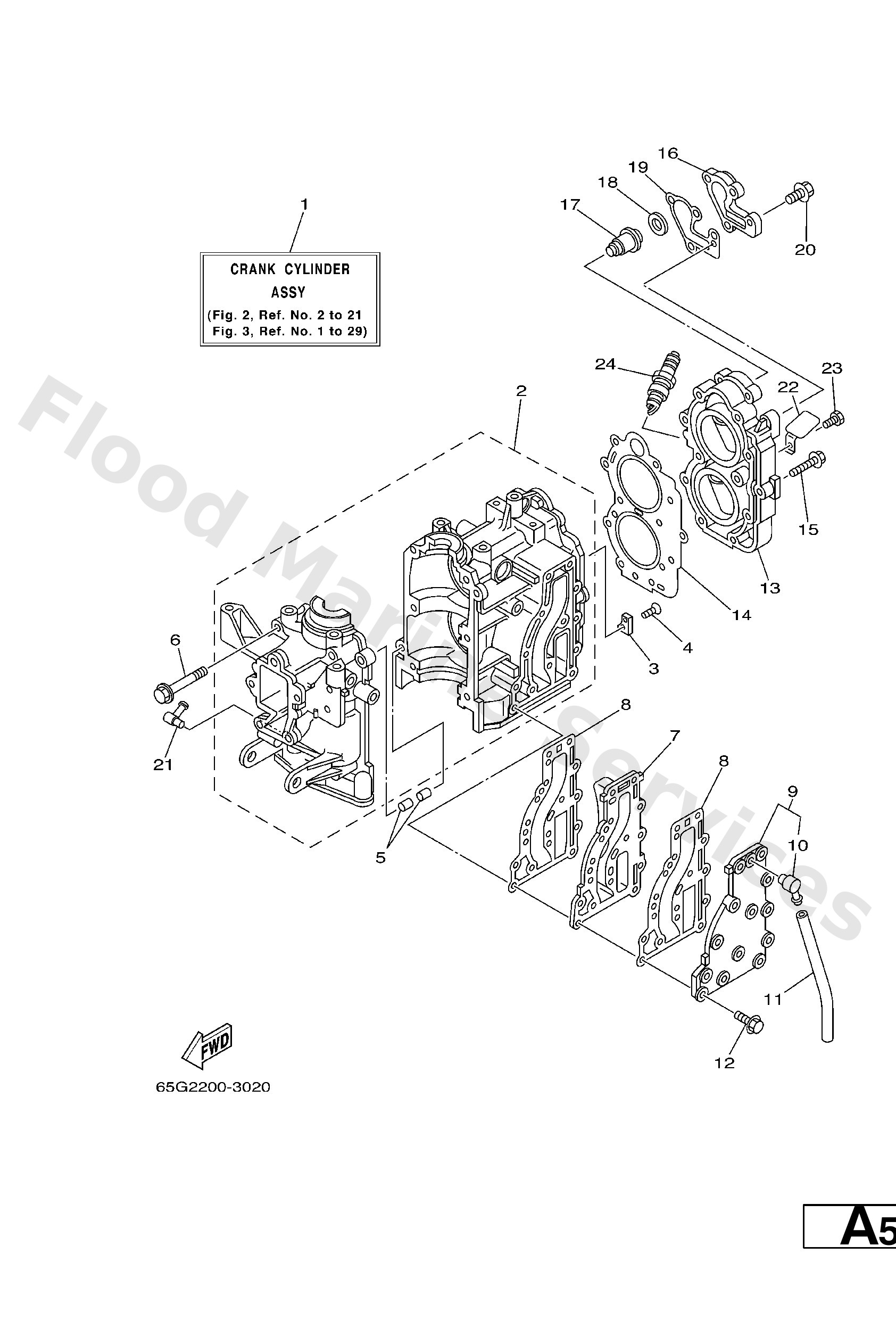

Diagram: CYLINDER. CRANKCASE

Diagram

Parts List

65G−15100−01−1S

Crankcase assembly

Diagram Reference: 2

682−11325−00

Anode 1

Diagram Reference: 3

98780−05015

Ybs53-516 screw,flat head

Diagram Reference: 4

93606−12019

Pin, dowel (614)

Diagram Reference: 5

90119−08M07

Bolt, with washer(63v)

Diagram Reference: 6

63V−41111−00−1S

Inner cover, exhaust

Diagram Reference: 7

63V−41112−A0

Gasket, exhaust inner cover

Diagram Reference: 8

63V−41113−00−1S

Outer cover, exhaust

Diagram Reference: 9

676−11372−00

Nipple, hose

Diagram Reference: 10

90445−09105

Hose (l420)

Diagram Reference: 11

90119−06MA4

Bolt, with washer

Diagram Reference: 12

65G−11111−00−1S

Head, Cylinder 1

Diagram Reference: 13

63V−11181−A1

Gasket, cylinder head 1

Diagram Reference: 14

90105−07002

Bolt, flange

Diagram Reference: 15

682−12413−00−1S

Cover, thermostat

Diagram Reference: 16

6F5−12411−02

Thermostat

Diagram Reference: 17

90201−21567

Washer, plate (650)

Diagram Reference: 18

682−12414−A1

Gasket, cover

Diagram Reference: 19

90119−06MA2

Bolt, with washer

Diagram Reference: 20

65G−11951−00

2−

Diagram Reference: 22

97090−06012

Bolt(gh1)

Diagram Reference: 23

94702−00217

Plug, spark (b7hs-10)

Diagram Reference: 24
