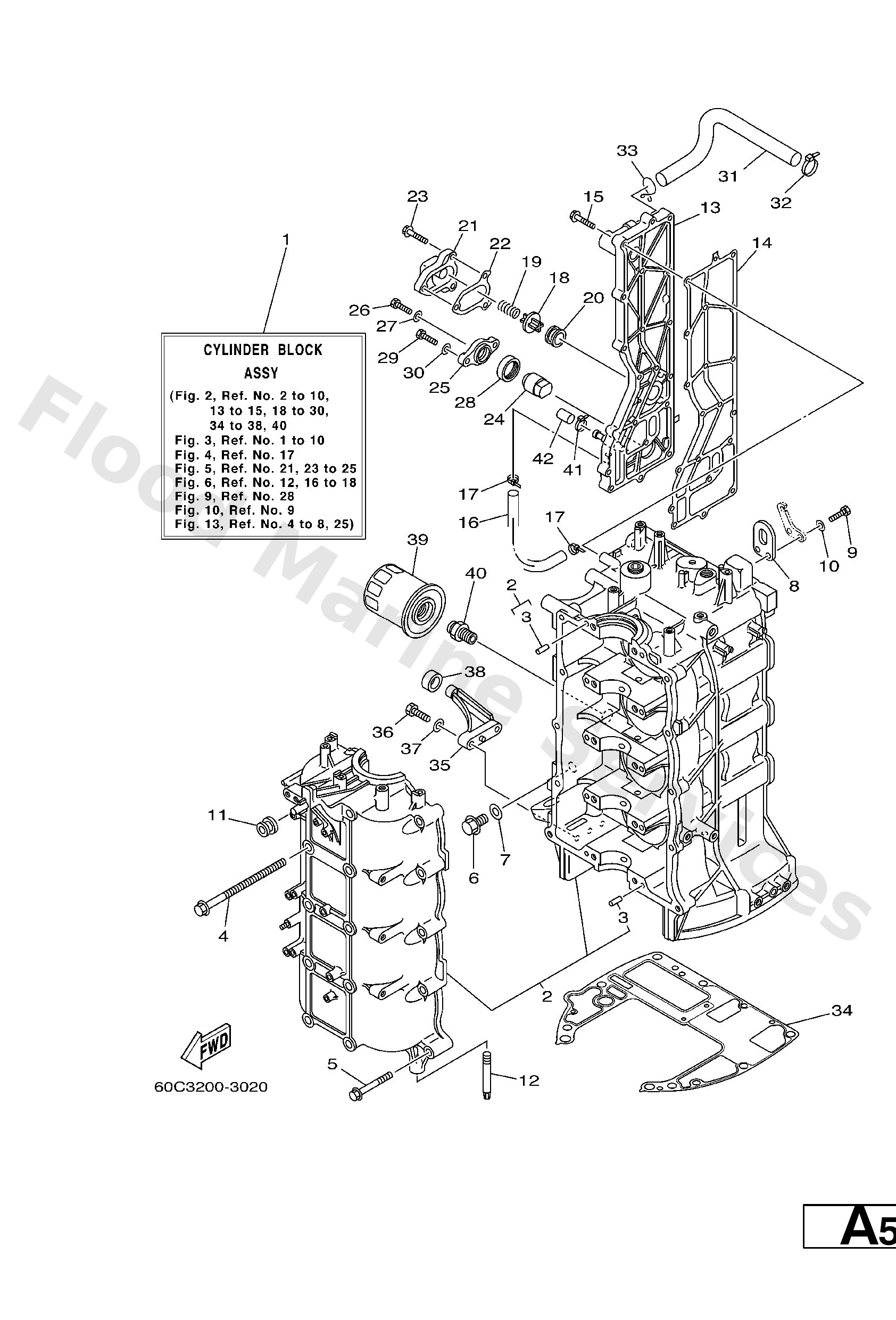

Parts List
Pin, dowel (614)
Diagram Reference: 3
Bolt, with washer
Diagram Reference: 4
Bolt, with washer
Diagram Reference: 5
Plug, straight screw(62y)
Diagram Reference: 6
Gasket (663)
Diagram Reference: 7
Hanger, engine
Diagram Reference: 8
Bolt(7u8)
Diagram Reference: 9
Washer, plain (646)
Diagram Reference: 10
Grommet(53y)
Diagram Reference: 11
Guide 1
Diagram Reference: 12
Gasket, exhaust outer cover
Diagram Reference: 14
Bolt, with washer
Diagram Reference: 15
Hose (l400)
Diagram Reference: 16
Clamp
Diagram Reference: 17
Valve, pressure control
Diagram Reference: 18
Spring, compression (688)
Diagram Reference: 19
Grommet (688)
Diagram Reference: 20
Gasket
Diagram Reference: 22
Bolt, with washer
Diagram Reference: 23
Anode
Diagram Reference: 24
Bolt(7u8)
Diagram Reference: 26
Grommet, anode
Diagram Reference: 28
Bolt, hexagon deep recess
Diagram Reference: 29
Washer, plain (663)
Diagram Reference: 30
Hose 1
Diagram Reference: 31
Clip
Diagram Reference: 33
Gasket, cylinder
Diagram Reference: 34
Stopper
Diagram Reference: 35
Bolt
Diagram Reference: 36
Damper, upper mount rubber
Diagram Reference: 38
Element assembly, oil cleaner
Diagram Reference: 39
Bolt, union
Diagram Reference: 40
Cap
Diagram Reference: 42
