F2.5AMH (2003)
CYLINDER. CRANKCASE 1

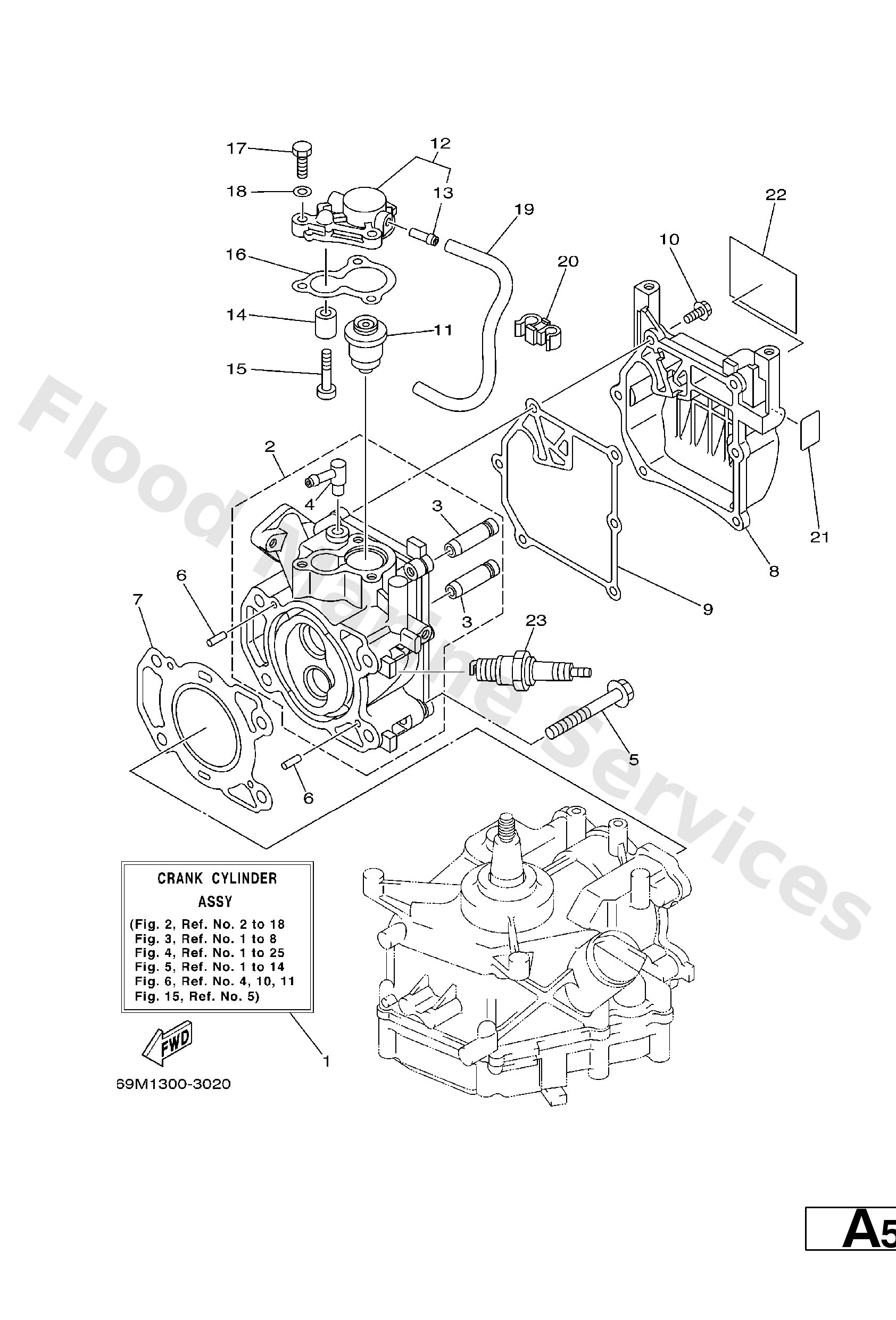

Diagram: CYLINDER. CRANKCASE 1
Parts List
Reference
Description
Price
3
67D−11133−10
Guide, valve 1
Loading…
↗
4
676−11372−00
Nipple, hose
Loading…
↗
5
90105−08M36
Bolt (6g8)
Loading…
↗
6
93604−12M07
Pin, dowel (688)
Loading…
↗
7
69M−11181−00
Gasket, cylinder head 1
Loading…
↗
9
69M−11193−A0
Gasket, head cover 1
Loading…
↗
10
90105−06M14
Bolt (6e0)
Loading…
↗
11
69M−12411−00
Thermostat
Loading…
↗
13
650−24378−00
Pipe, joint 2
Loading…
↗
14
68D−E1325−00
Anode
Loading…
↗
15
97880−05025
Screw, panhead (a93)
Loading…
↗
16
68D−E2414−A0
Gasket, cover
Loading…
↗
17
97095−06020
Bolt(7u8)
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
90445−09808
Hose
Loading…
↗
20
90464−09013
Clamp
Loading…
↗
21
67D−42791−10
Mark 1
Loading…
↗
22
68D−E2138−60
12 −
Loading…
↗
23
94702−00248
Plug, spark (br6hs)
Loading…
↗
