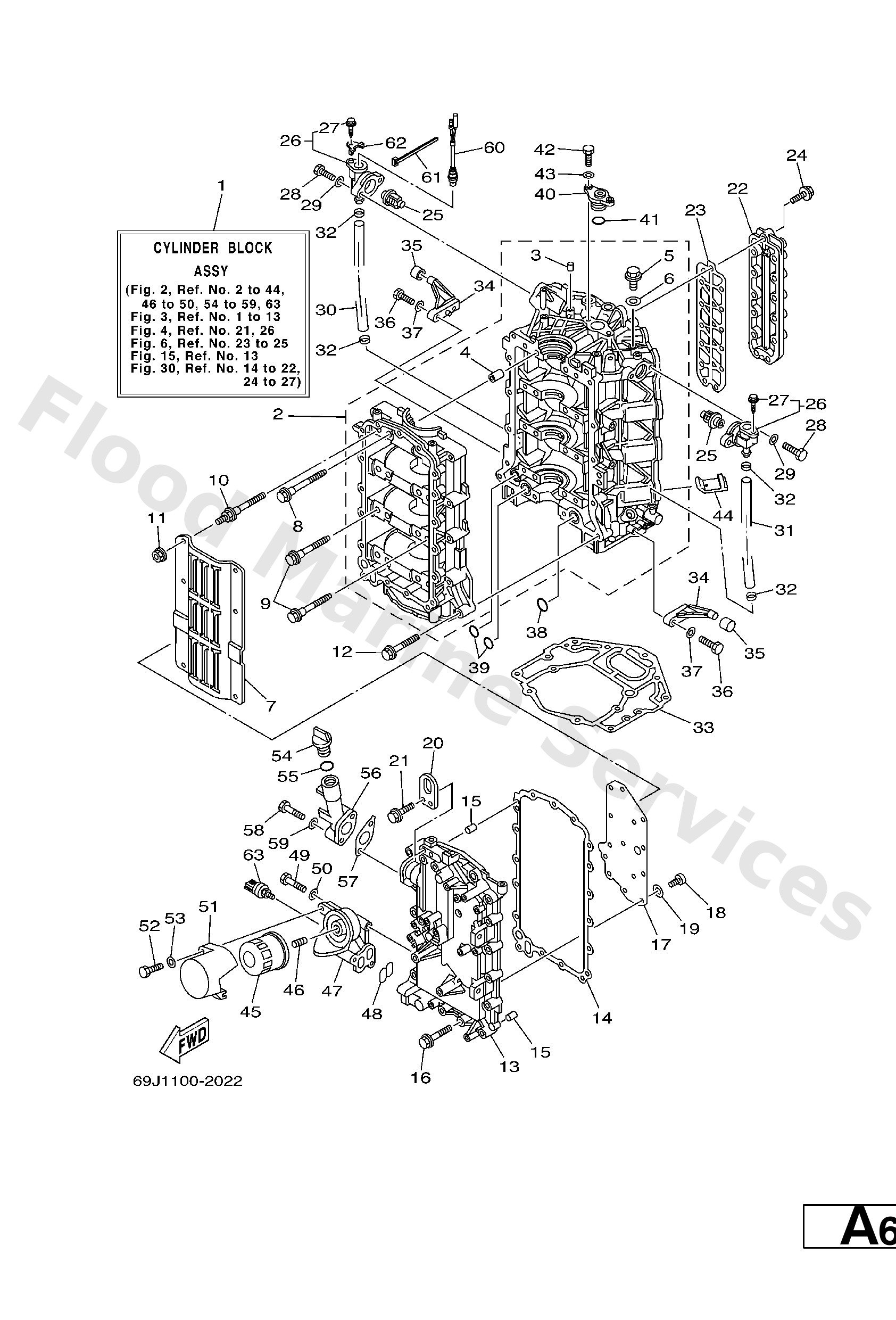

Parts List
Pin, dowel (614)
Diagram Reference: 3
Pin, dowel (614)
Diagram Reference: 3
Pin, dowel
Diagram Reference: 4
Pin, dowel
Diagram Reference: 4
Plug, straight screw(62y)
Diagram Reference: 5
Plug, straight screw(62y)
Diagram Reference: 5
Gasket (663)
Diagram Reference: 6
Gasket (663)
Diagram Reference: 6
Plate, buffle 1
Diagram Reference: 7
Plate, buffle 1
Diagram Reference: 7
Bolt
Diagram Reference: 8
Bolt
Diagram Reference: 8
Bolt 1
Diagram Reference: 9
Bolt 1
Diagram Reference: 9
Bolt 2
Diagram Reference: 10
Bolt 2
Diagram Reference: 10
Nut, flange(4mv)
Diagram Reference: 11
Nut, flange(4mv)
Diagram Reference: 11
Bolt, with washer
Diagram Reference: 12
Bolt, with washer
Diagram Reference: 12
Gasket, crankcase cover 1
Diagram Reference: 14
Gasket, crankcase cover 1
Diagram Reference: 14
Bolt, with washer
Diagram Reference: 16
Bolt, with washer
Diagram Reference: 16
Screw, pan head(jg1)
Diagram Reference: 18
Screw, pan head(jg1)
Diagram Reference: 18
Washer(jf2)
Diagram Reference: 19
Washer(jf2)
Diagram Reference: 19
Hanger, engine
Diagram Reference: 20
Hanger, engine
Diagram Reference: 20
Bolt, with washer
Diagram Reference: 21
Bolt, with washer
Diagram Reference: 21
Gasket, cover
Diagram Reference: 23
Gasket, cover
Diagram Reference: 23
Bolt, with washer
Diagram Reference: 24
Bolt, with washer
Diagram Reference: 24
Thermostat
Diagram Reference: 25
Thermostat
Diagram Reference: 25
Bolt
Diagram Reference: 27
Bolt
Diagram Reference: 27
Bolt
Diagram Reference: 28
Bolt
Diagram Reference: 28
Washer, plain (646)
Diagram Reference: 29
Washer, plain (646)
Diagram Reference: 29
Hose 1
Diagram Reference: 30
Hose 1
Diagram Reference: 30
Hose 2
Diagram Reference: 31
Hose 2
Diagram Reference: 31
Clamp
Diagram Reference: 32
Clamp
Diagram Reference: 32
Gasket, cylinder
Diagram Reference: 33
Gasket, cylinder
Diagram Reference: 33
Stopper
Diagram Reference: 34
Stopper
Diagram Reference: 34
Damper, upper mount rubber
Diagram Reference: 35
Damper, upper mount rubber
Diagram Reference: 35
O-ring (22f)
Diagram Reference: 38
O-ring (22f)
Diagram Reference: 38
O-ring
Diagram Reference: 39
O-ring
Diagram Reference: 39
Plug, blind
Diagram Reference: 40
Plug, blind
Diagram Reference: 40
O-ring (7or)
Diagram Reference: 41
O-ring (7or)
Diagram Reference: 41
Bolt(7u8)
Diagram Reference: 42
Bolt(7u8)
Diagram Reference: 42
Grommet, water shut
Diagram Reference: 44
Grommet, water shut
Diagram Reference: 44
Element assembly, oil cleaner
Diagram Reference: 45
Element assembly, oil cleaner
Diagram Reference: 45
Bolt, union
Diagram Reference: 46
Bolt, union
Diagram Reference: 46
Connector
Diagram Reference: 47
Connector
Diagram Reference: 47
Gasket
Diagram Reference: 48
Gasket
Diagram Reference: 48
Bolt, hexagon
Diagram Reference: 49
Bolt, hexagon
Diagram Reference: 49
Cover, oil element
Diagram Reference: 51
Cover, oil element
Diagram Reference: 51
Bolt (682)
Diagram Reference: 52
Bolt (682)
Diagram Reference: 52
Plug, oil
Diagram Reference: 54
Plug, oil
Diagram Reference: 54
O-ring
Diagram Reference: 55
O-ring
Diagram Reference: 55
Joint
Diagram Reference: 56
Joint
Diagram Reference: 56
Gasket, oil plug
Diagram Reference: 57
Gasket, oil plug
Diagram Reference: 57
Thermo switch assembly
Diagram Reference: 60
Thermo switch assembly
Diagram Reference: 60
Plate
Diagram Reference: 62
Plate
Diagram Reference: 62
Sender, oil pressure
Diagram Reference: 63
Sender, oil pressure
Diagram Reference: 63
