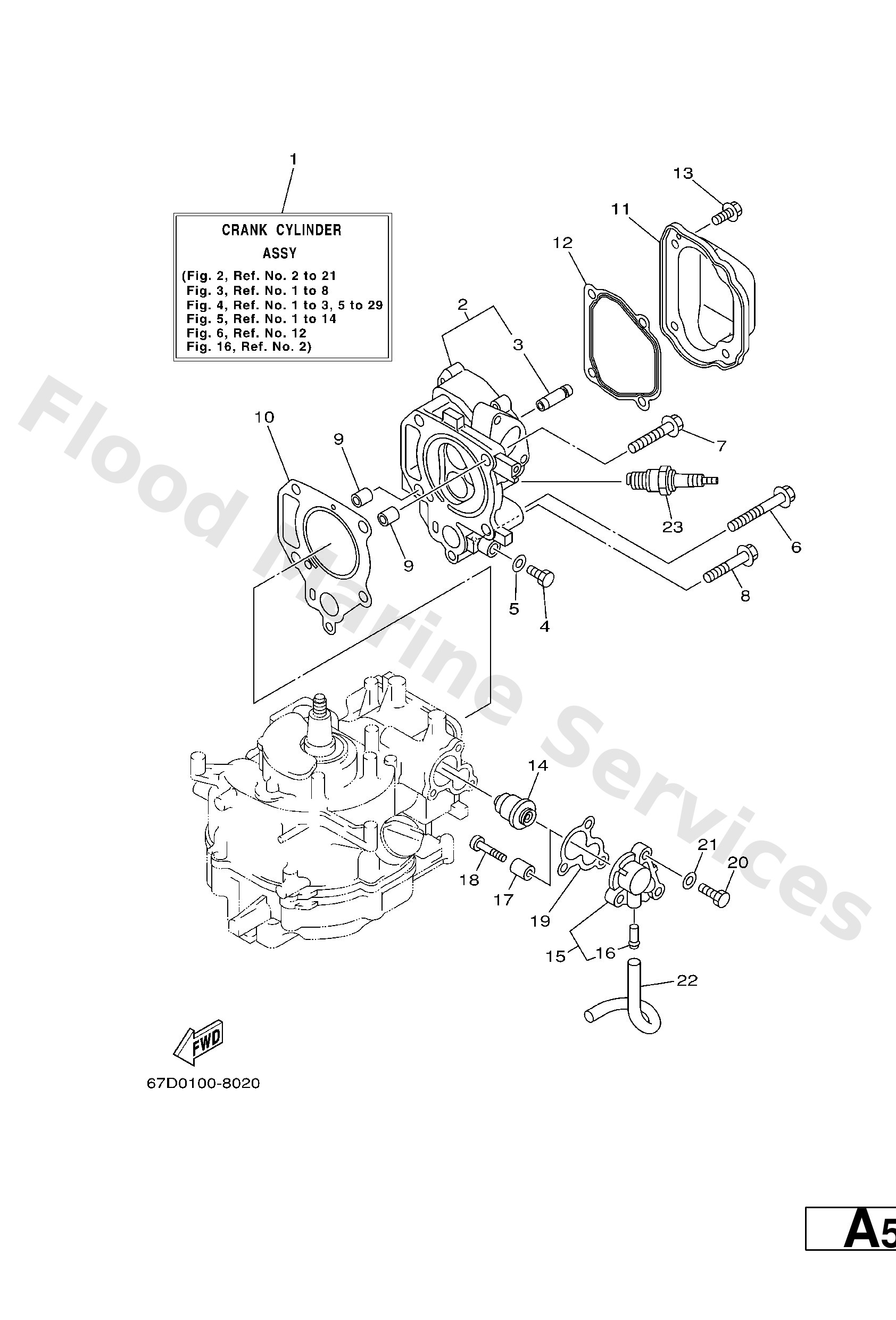

Diagram: CYLINDER. CRANKCASE 1

Diagram

Parts List

67D1113310
Guide, valve 1
Diagram Reference: 3
Get Part
9709508014
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
9043008800
Gasket (256-11198-00)
Diagram Reference: 5
Get Part
9010508M81
Bolt, Flange
Diagram Reference: 6
Get Part
9010508M80
Bolt, Flange
Diagram Reference: 7
Get Part
9010506M25
Bolt (6g1)
Diagram Reference: 8
Get Part
9951010114
Pin, dowel(3vd)
Diagram Reference: 9
Get Part
67D11181A0
Gasket, cylinder head 1
Diagram Reference: 10
Get Part
67D1119100
Cover, cylinder head 1
Diagram Reference: 11
Get Part
68DE1193A0
Gasket head cover
Diagram Reference: 12
Get Part
9010506M14
Bolt (6e0)
Diagram Reference: 13
Get Part
66M1241100
Thermostat
Diagram Reference: 14
Get Part
6502437800
Pipe, joint 2
Diagram Reference: 16
Get Part
68DE132500
Anode
Diagram Reference: 17
Get Part
9788005025
Screw, panhead (a93)
Diagram Reference: 18
Get Part
68DE2414A0
Gasket, cover
Diagram Reference: 19
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 20
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 21
Get Part
9044509807
Hose (l180)
Diagram Reference: 22
Get Part
9470200248
Plug, spark (br6hs)
Diagram Reference: 23
Get Part
